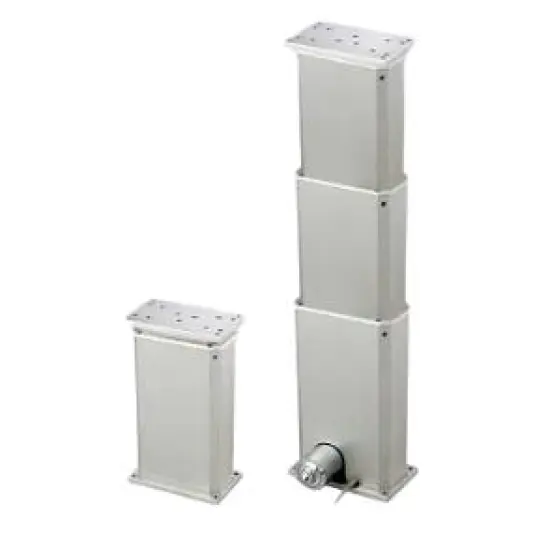

LC03 Lifting Column

The LC3 lifting column actuator from PJM are made up of two extruded aluminium tubes and have a good performance in the stable, reliable and free maintenance benefit. 3 stage lifting columns series for medical chair or SPA table.
Inquire Now Next Product
LC03 Lifting Column

Product Description

Features:





Voltage: DC 24V

Rated Power: 50W

Max Load capacity: 4000N

Speed: 4-12mm/s

Protection Class: IP44

Initial Height: 400mm

Stroke Length: 100-400mm

Working Frequency: Interrupted working. Load time within 10%

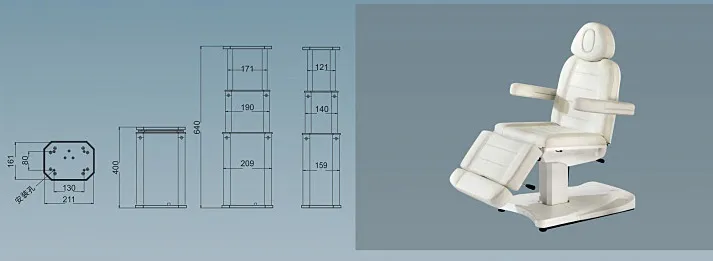

Size Drawing:
