Product Description
Performance data:
Voltage Range: 6V-240V
Rated Speed: 2000-12000RPM
In Put Power: 10-600W
Output Power: 6-122 W
Insulation class: A B F H
Typical model performance
|
Type |
Length |
Vol |
Current |
P1(input power) |
Speed |
Torque |
P2(output power) |
Eff. |
|
|
(mm) |
（V） |
(A) |
(W) |
(RPM) |
(mN.m) |
(W) |
(%) |
|
PM77105 |
105 |
120 |
1.02 |
168 |
2469 |
471.9 |
122 |
73.2 |
|
PM77175 |
175 |
230 |
0.73 |
153 |
2420 |
445.1 |
113 |
74.4 |

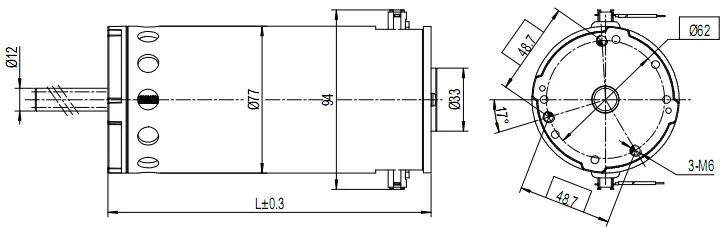

Size Drawing:
