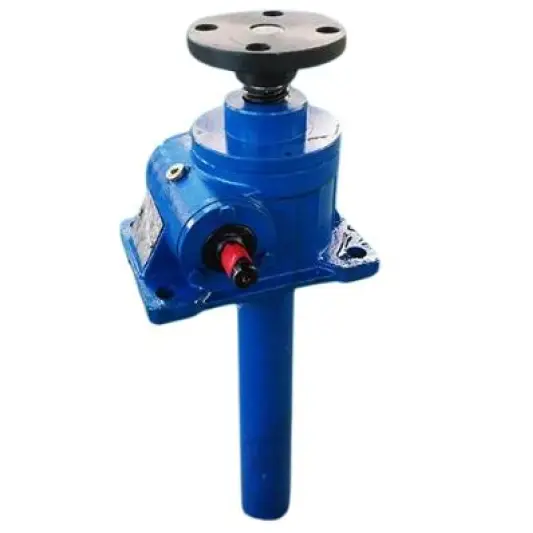

SWL series Screw Jack

Used for industrial table or working platform lifting or adjusting height. Such as for test proposed platform, medical operating table lifting, transfer position adjustment in fiberglass, plastic film extrusion, steel roller spacing,  pipe sheet and more.

Features:

1. New small size, light weight, simple operation, easy maintenance, long life
2. 10 Lifting force(T) :  2,3,5,10,15,20,30,40,50,100

3. Three basic transmission ratio:1:10,1:20,1:40

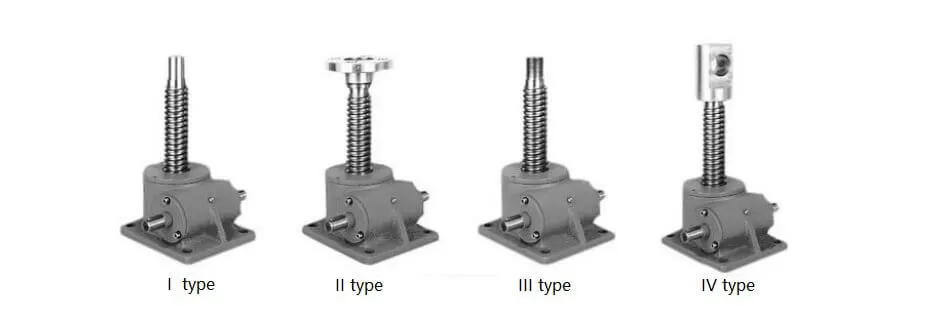

4. Screw Jack top fitting shape:R type(Cylindrical shape),T(flange shape),S(screw shape),H(flat shape)

5. Two structure:rotating screw in upright and inverted type(screw rotating,Nut moving along axial direction)

 translating screw in upright and inverted type(screw rotating and moving along axial direction)

6. Two mounting type:

 A type:lead screw (nut) moving up direction

 B type:lead screw (nut) moving down direction

7. Screw shaft protection:

  with protection(P)

 With anti-rotation(F)

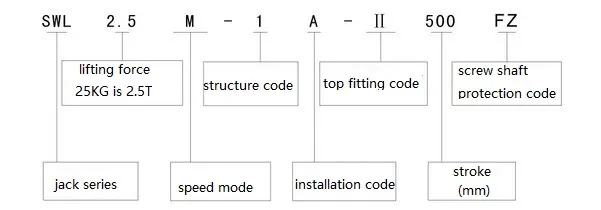

Name Code:

Attachment Type:

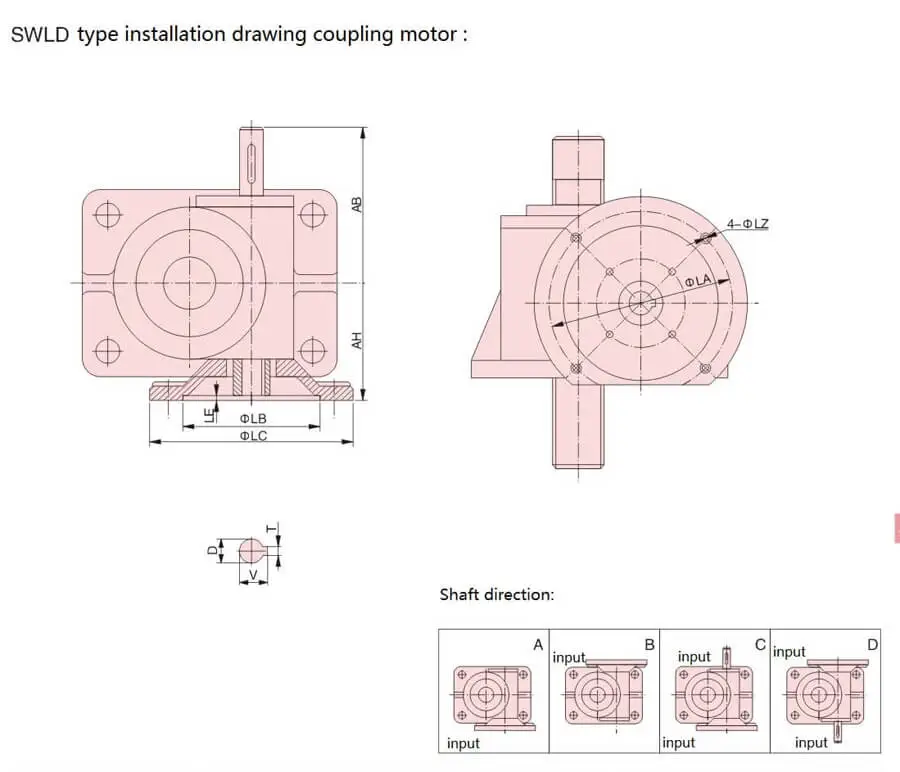

Electric Motor Connection:
