AC High-Temperature Motors Design

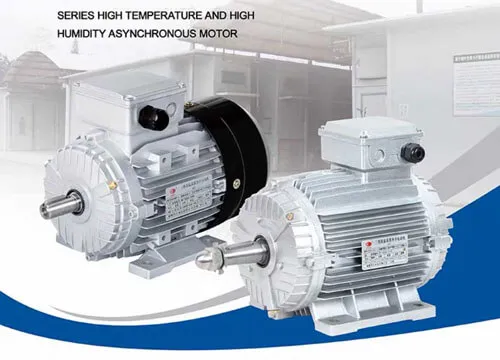

AC High-Temperature Motors: Reliable Performance in Extreme Environments



Introduction

AC high-temperature motors are specially designed electric motors capable of operating reliably in extreme heat conditions that would degrade standard motors. These robust motors play critical roles in industrial processes, energy production, and specialized applications where elevated temperatures are unavoidable. This article examines the design features, applications, and technological advancements of AC motors engineered for high-temperature environments.





1. Design Characteristics of High-Temp AC Motors

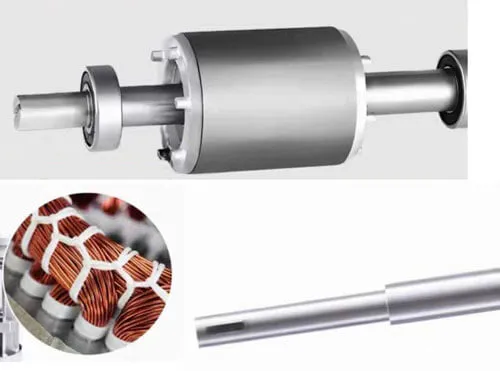

1.1 Thermal-Resistant Materials



  • Class H (180°C) or Class C (200°C+) insulation systems using polyimide or ceramic materials

  • High-temp magnet wires with modified enamel coatings

  • Specialized bearings with high-temperature greases (up to 200°C continuous)

  • Thermal barrier coatings on critical components



1.2 Cooling System Enhancements



  • Forced air cooling with high-temperature-rated fans

  • Heat pipe technology for efficient thermal transfer

  • Liquid cooling jackets for extreme environments

  • Optimized airflow paths within motor housing



1.3 Electrical Design Features



  • Temperature-resistant capacitors and electronics

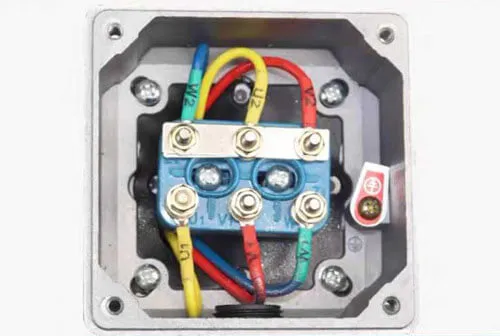

  • High-temp terminal boxes with ceramic insulators

  • Thermal overload protection with wide-range sensors

  • Low thermal expansion structural components



2. Key Applications

2.1 Industrial Processes

  • Metal processing: Rolling mills, foundries, heat treatment lines

  • Glass manufacturing: Float glass lines, annealing lehrs

  • Ceramics production: Kiln car drives, tunnel furnace conveyors



2.2 Energy Sector

  • Geothermal power plants: Pump motors in steam environments

  • Nuclear facilities: Auxiliary system motors

  • Solar thermal plants: Tracking system actuators



2.3 Oil & Gas Applications

  • Downhole tools: ESP motors in deep wells

  • Refinery processes: FCC unit motors, coker drives

  • Pipeline systems: Compressor motors in desert environments



2.4 Aerospace & Defense

  • Jet engine accessories: Fuel and hydraulic pumps

  • Missile systems: Actuator and guidance motors

  • Spacecraft mechanisms: Deployable system motors



2.5 Packing Equipment & Industrial Oven



  • Packaging machinery: Box sealing machines,  Drying of the packaging production line

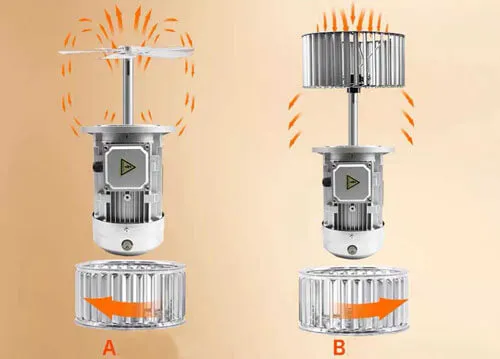

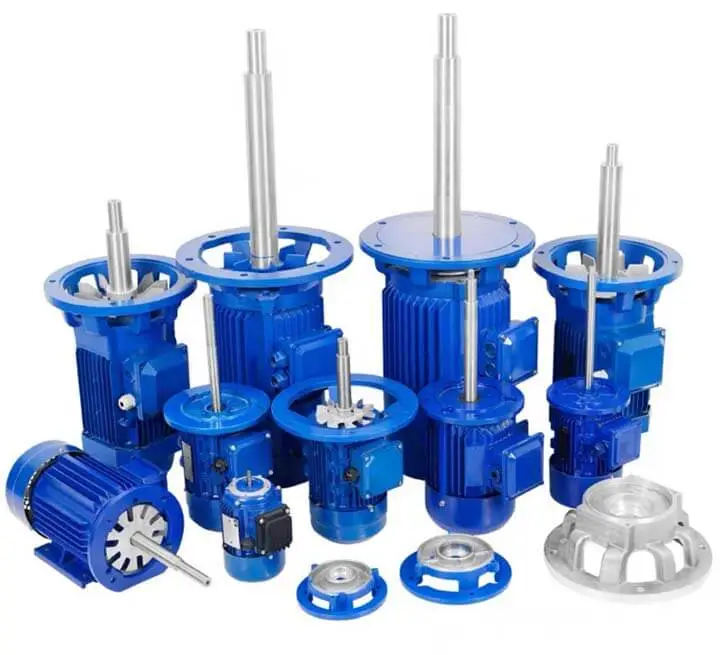

  • Industiral oven: The motor needs to drive the fan to achieve forced air supply and homogenize the temperature





3. Performance Specifications



Parameter	Standard Motor	High-Temp Motor
Ambient Temp Range	-20°C to 40°C	-40°C to 200°C+
Insulation Class	B (130°C)	H (180°C) or C (200°C+)
Bearing Life	10,000 hrs	5,000+ hrs @ 150°C
Cooling Method	Self-ventilated	Forced air/liquid cooling
Efficiency	IE3/IE4	Special high-temp design
Power Range	0.1-500kW	0.1-1000kW+

4. Emerging Technologies

4.1 Advanced Materials

  • Ceramic nanocomposite insulators for higher dielectric strength

  • Graphene-enhanced thermal interface materials

  • Shape-memory alloy components for thermal compensation



4.2 Smart Monitoring Systems

  • Embedded fiber optic temperature sensors

  • Wireless condition monitoring for inaccessible locations

  • AI-based predictive maintenance algorithms



4.3 Novel Cooling Methods

  • Phase-change materials for passive thermal management

  • Microchannel cooling systems

  • Magnetic bearing systems eliminating lubrication issues



5. Selection Considerations



When specifying a high-temperature AC motor, engineers should evaluate:

  ♦ Temperature profile: Peak vs. continuous operating temps

  ♦ Duty cycle: Intermittent or continuous operation

  ♦ Environmental factors: Presence of chemicals, particulates

  ♦ Power requirements: Starting torque, speed variations

  ♦ Cooling availability: Existing cooling infrastructure



6. Maintenance Challenges & Solutions



Challenge	Solution
Lubrication breakdown	Use synthetic high-temp greases or oil mist systems
Insulation degradation	Implement regular megger testing
Bearing wear	Install condition monitoring sensors
Connector failures	Use ceramic terminal blocks
Efficiency loss	Schedule thermal performance checks





7. Future Trends

  ► Wider adoption of rare-earth-free high-temp magnets

  ► Integrated motor-drive units reducing connection failures

  ► Additive manufacturing of customized cooling structures

  ► Hybrid ceramic-metal rotors for extreme environments

  ► Energy recovery systems from waste heat



Conclusion



AC high-temperature motors represent a critical engineering solution for industries operating in extreme thermal conditions. Through advanced materials, innovative cooling techniques, and robust design principles, these motors deliver reliable performance where conventional motors would fail. As industrial processes push temperature limits higher and energy efficiency demands increase, continued innovation in high-temperature motor technology will remain essential for mission-critical applications across multiple sectors.



Future developments in smart monitoring, alternative materials, and advanced cooling methods promise to further extend the capabilities and applications of these specialized motors in increasingly challenging environments.
