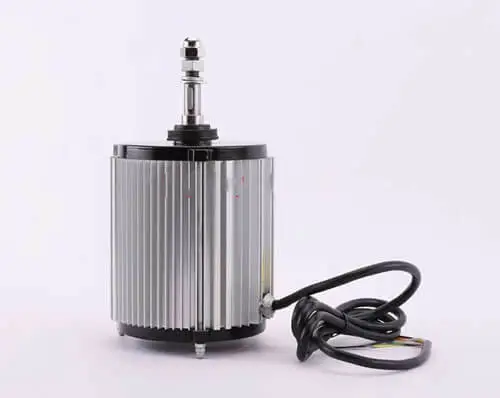

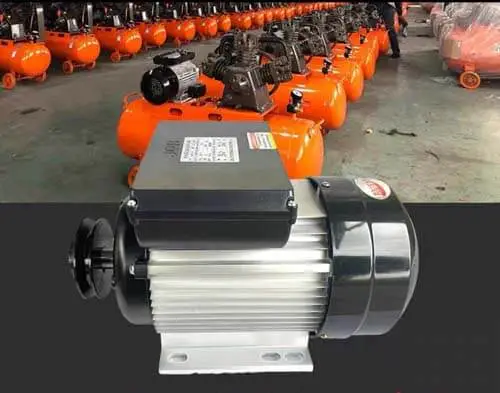

Designing an AC asynchronous motor (induction motor) for a compressor involves several key considerations to ensure efficiency, reliability, and performance under varying load conditions. Below is a structured approach to designing such a compressor motor:
High Starting Torque: Compressors require high starting torque to overcome initial load inertia.
Robust Construction: Must withstand vibrations, thermal stresses, and frequent starts/stops.
Energy Efficiency: IE3/IE4 standards (or higher) to minimize operational costs.

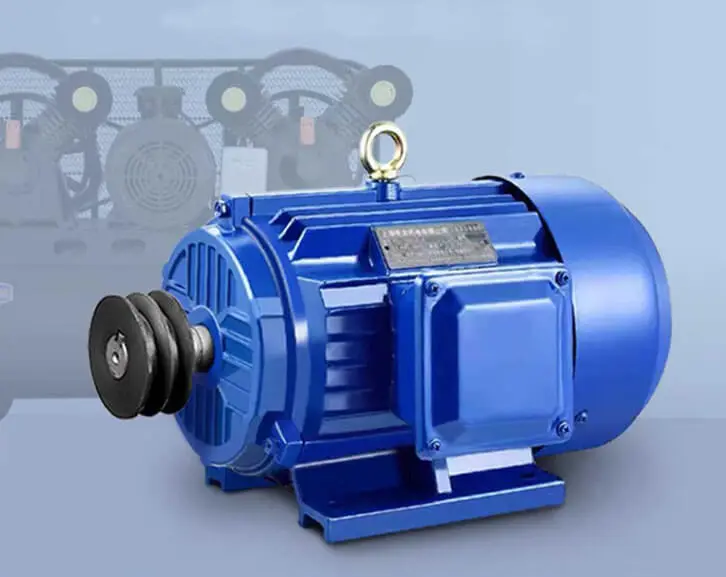

Cooling Method: TEFC (Totally Enclosed Fan-Cooled) or TENV (Totally Enclosed Non-Ventilated) for protection against dust/moisture.
Duty Cycle: Continuous (S1) or intermittent (S3/S6) duty, depending on compressor type.
Power Rating:
Determined by compressor load (e.g., 5.5 kW for a mid-sized reciprocating compressor).
Voltage & Frequency:
Common: 230/400V, 50Hz (or 460V, 60Hz for industrial applications).
Pole Configuration:
2-pole (2850 RPM at 50Hz): High-speed compressors (e.g., centrifugal).

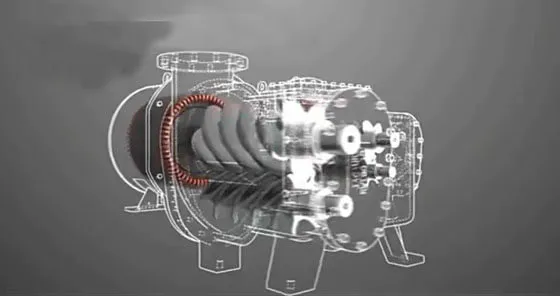

4-pole (1450 RPM at 50Hz): Common for reciprocating/screw compressors (better torque balance).
Starting Method:
Direct-On-Line (DOL): For small compressors (<5 kW).
Star-Delta Starter: Reduces inrush current for medium-sized motors.
Soft Starter/VFD: For large compressors to control acceleration and reduce mechanical stress.
Rotor Type:
Squirrel Cage Rotor: Robust, low maintenance (common in compressors).
Deep Bar/Double Cage Rotor: Enhances starting torque (for high-inertia loads).
Frame Size: IEC standard (e.g., IEC 160M for 15 kW motors).
Enclosure: TEFC (Totally Enclosed Fan-Cooled) for dirty/wet environments.
Bearings: Heavy-duty bearings (e.g., SKF/FAG) to handle axial/radial loads.
Shaft Design: Reinforced to withstand compressor pulsations.
Insulation Class: Class F (155°C) or Class H (180°C) for high-temperature resilience.
Efficiency:
• IE3 (Premium Efficiency) or IE4 (Super Premium) to comply with regulations.
• Use of high-quality copper windings and low-loss silicon steel laminations.
Cooling: External fan (TEFC) or liquid cooling for large compressors.
Power Factor Correction: Capacitors may be added to improve PF (e.g., 0.9+).
Noise Reduction: Optimized stator/rotor slot design to minimize acoustic noise.
Vibration Damping: Dynamic balancing and anti-vibration mounts.
|
Parameter |
Value |
|
Power |
7.5 kW |
|
Voltage |
400V, 50Hz, 3-phase |
|
Speed |
1500 RPM (4-pole) |
|
Efficiency |
IE4 (≥92%) |
|
Enclosure |
TEFC |
|
Insulation Class |
Class F |
|
Starting Torque |
200% of rated torque |
|
Starting Current |
6× rated current (DOL) |
|
Cooling |
Fan-cooled (IC 411) |
High Starting Current: Use star-delta or soft starters.
Thermal Overload: Embed thermal sensors (PTC/PT100) for protection.
Mechanical Stress: Finite Element Analysis (FEA) for rotor/stator durability.
No-Load Test: Check iron losses and magnetizing current.
Locked Rotor Test: Verify starting torque and current.
Thermal Imaging: Ensure uniform heat dissipation.
A well-designed AC asynchronous motor for compressors balances high starting torque, energy efficiency, and mechanical robustness. The use of modern materials (e.g., copper rotors for higher efficiency) and advanced cooling techniques can further enhance performance. For variable-speed compressors, integrating a VFD with the induction motor is recommended.
Would you like a detailed electromagnetic design (stator/rotor dimensions, winding calculations)? Contact with our engineer team today!
