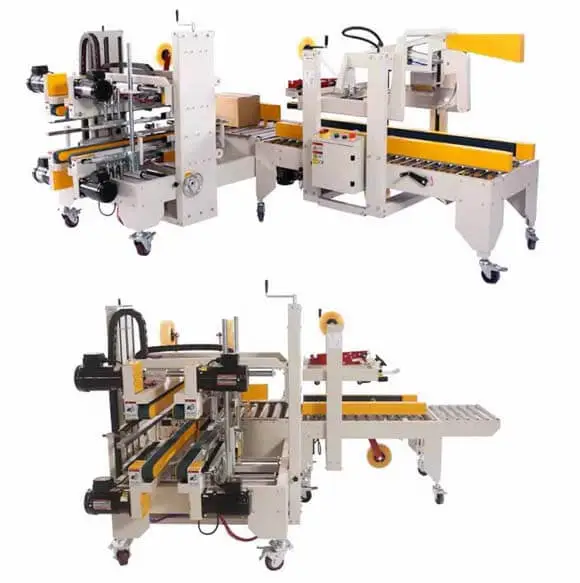

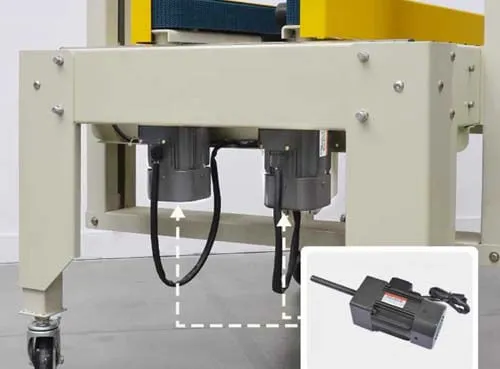

Designing an AC induction motor (asynchronous motor) for packaging machinery requires a focus on precision, variable speed control, high reliability, and energy efficiency. Packaging machines often involve frequent starts/stops, rapid acceleration, and varying load conditions, so the motor must be optimized accordingly.
High Starting Torque: Needed to overcome inertia during quick starts.
Precise Speed Control: For synchronization with conveyors, fillers, and sealing systems.
Dynamic Response: Fast acceleration/deceleration (e.g., for servo-like performance).
Compact & Lightweight: To fit within machinery constraints.
Low Maintenance: Sealed bearings and durable construction for long service life.
Energy Efficiency: IE3/IE4 standards to reduce operational costs.
Noise & Vibration Reduction: Critical for high-speed packaging lines.
• Power Rating: Typically 0.37 kW to 22 kW, depending on machine type (e.g., filling, labeling, sealing).
• Voltage & Frequency:

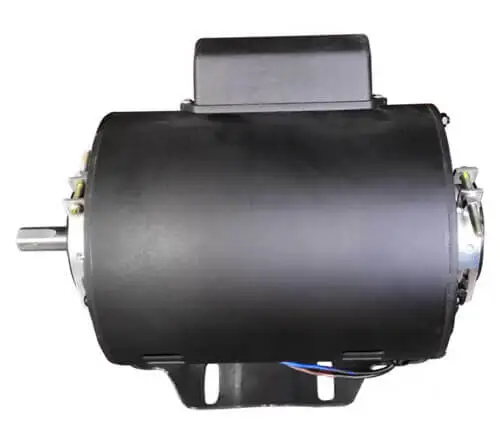

♦ Single-phase (230V, 50/60Hz): For small machines (<1 kW).
♦ Three-phase (400V, 50Hz / 480V, 60Hz): For industrial packaging lines.
• Pole Configuration:

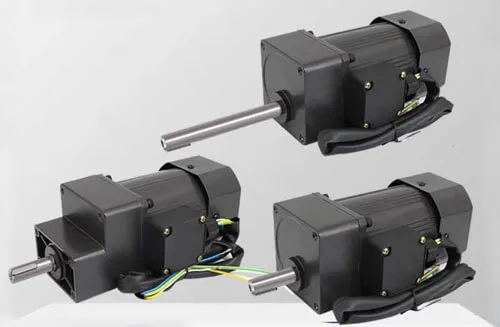

♦ 2-pole (3000 RPM at 50Hz): High-speed applications (e.g., conveyor belts). Standard AC motor with gearbox design.
♦ 4-pole (1500 RPM at 50Hz): Common for general packaging machinery (balanced torque & speed).
♦ 6/8-pole (1000/750 RPM): For high-torque, low-speed applications (e.g., heavy carton sealing).
• Starting Method:
♦ Direct-On-Line (DOL): For small motors (<3 kW).
♦ Soft Starter/VFD: For precise speed control and reduced mechanical stress.
• Rotor Type:
♦ Squirrel Cage Rotor: Standard for most applications (robust, low maintenance).
♦ High-Slip Rotor: For better torque control in variable-speed applications.

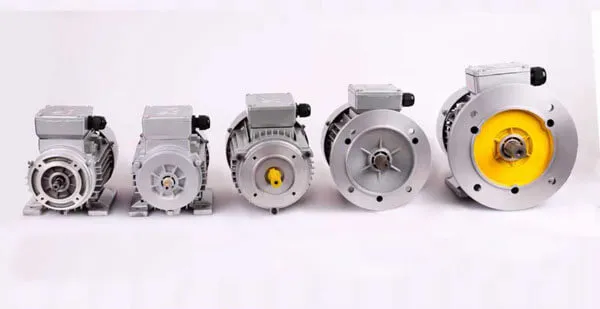

• Frame Size: IEC standard (e.g., IEC 80 to IEC 180) based on power.
• Enclosure:
♦ TEFC (Totally Enclosed Fan-Cooled): For dusty environments.
♦ IP65-rated: For washdown areas (food/beverage packaging).
• Bearings:
♦ Sealed Ball Bearings: For long life with minimal lubrication.
♦ Ceramic Bearings: For high-speed applications (>3000 RPM).
• Shaft Design:
♦ Keyed or Keyless (Clamp-Type): For easy coupling with gearboxes/pulleys.
• Insulation Class: Class F (155°C) or H (180°C) for high-duty cycles.
• Efficiency: IE3 (Premium) or IE4 (Super Premium) to meet regulations.
• Cooling:
♦ Fan Cooling (IC 411): Standard for continuous operation.
♦ Liquid Cooling (IC 416): For high-power density applications.
Variable Frequency Drive (VFD) Integration:
• Enables adjustable speed for different packaging stages.
• Reduces energy consumption via sensorless vector control.
Braking System:
• Regenerative Braking: For rapid deceleration (e.g., in servo-driven systems).
• Mechanical Brakes: For holding position (e.g., vertical packaging machines).
Noise Reduction:
• Skewed Rotor Slots reduce magnetic noise.
• Vibration Damping Pads minimize resonance.
|
Parameter |
Value |
|
Power |
5.5 kW |
|
Voltage |
400V, 50Hz, 3-phase |
|
Speed |
1500 RPM (4-pole) |
|
Efficiency |
IE4 (≥93%) |
|
Enclosure |
TEFC (IP55) |
|
Insulation |
Class F |
|
Starting Torque |
150% of rated torque |
|
Control |
VFD-compatible (0-100 Hz) |
|
Cooling |
Fan-cooled (IC 411) |
|
Challenge |
Solution |
|
High Inertia Loads |
Use high-torque rotor design. |
|
Frequent Starts/Stops |
Implement soft starters or VFDs. |
|
Precision Positioning |
Closed-loop vector control (encoder feedback). |
|
Dust/Moisture Exposure |
IP65/IP66 enclosure. |
Dynamic Load Testing: Simulate real packaging cycles (start-stop, speed variations).
Thermal Imaging: Ensure no hotspots under continuous operation.
Vibration Analysis: Check for unbalanced forces.
Integrated Servo Motors: For ultra-precise motion control.
Smart Motors with IoT Sensors: Predictive maintenance (vibration, temp monitoring).
High-Efficiency Materials: Copper rotors, amorphous steel cores.
An optimal AC induction motor for packaging machinery must combine high torque, precision speed control, and ruggedness while being energy-efficient. VFD integration is almost essential for modern packaging lines to ensure flexibility and efficiency. For high-end applications, servo-controlled induction motors or PMAC (Permanent Magnet AC) motors may be considered.
Would you like a detailed winding design or selection guide for different packaging machines (e.g., fillers, wrappers, labelers)? Contact with us now!
