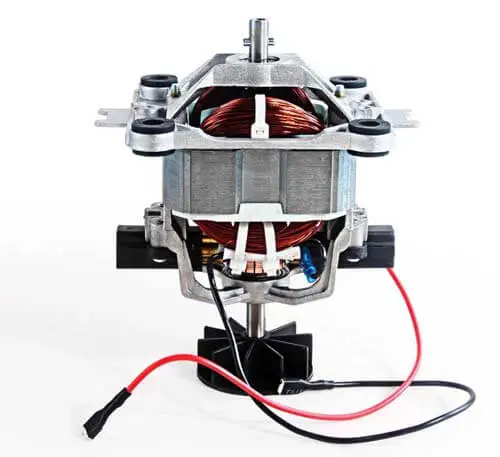

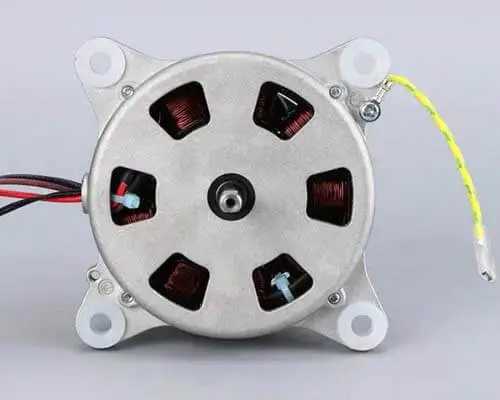

Designing a universal motor (AC/DC) for a blender requires optimizing for high speed, compact size, high starting torque, and durability under frequent load variations. Below is a structured approach to its design:
High Speed (10,000–30,000 RPM): Needed for efficient blending.
High Starting Torque: To crush ice/hard ingredients instantly.

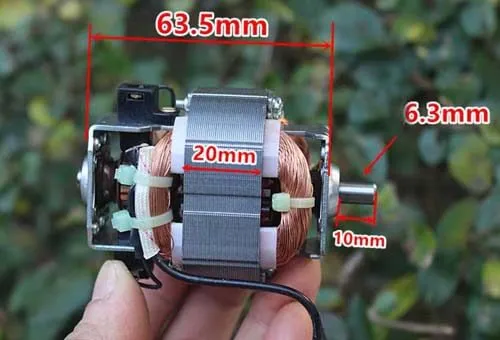

Compact & Lightweight: Fits in handheld or countertop blender housings.
Thermal Resistance: Must withstand short-duration overloads without overheating.
Low Cost: Consumer appliance constraints.
Low Noise & Vibration: For user comfort.
Power Rating:
60W–2000W (depending on blender size: personal/handheld vs. commercial).
Voltage:
120V (60Hz) or 230V (50Hz) AC, but also works on DC.
Speed Control:
Triac-based phase control (simple, low-cost) or PWM (for variable-speed blenders).

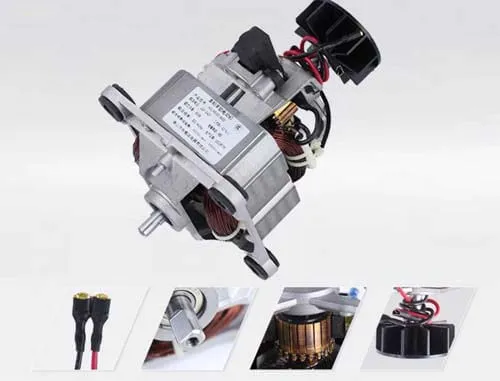

Commutator & Brushes:
Carbon Brushes: Standard for cost-effectiveness.
Copper Commutator: High conductivity, durable under high-speed switching.
Windings:
Series-wound (Armature + Stator in series): Provides high torque at low speeds.
Laminated Core: Reduces eddy current losses.
Rotor (Armature):
Skewed Slots: Reduces cogging and noise.
Balanced for High RPM: Prevents vibration (critical for blade stability).
Stator (Field Windings):
Concentrated Windings: Simplifies manufacturing.
Pole Shoes: Optimized for magnetic flux distribution.
Bearings:
Sleeve Bearings: Common in low-cost blenders (requires lubrication).
Ball Bearings: For high-end models (longer life, better heat resistance).
Cooling:
Fan-Axial Cooling: Integrated fan on rotor shaft.
Ventilation Holes: Prevents overheating during prolonged use.
|
Component |
Material |
Reason |
|
Stator Core |
Silicon Steel Laminations |
Reduces eddy current losses. |
|
Rotor Conductors |
Copper (Enamel-Coated) |
High conductivity, low resistance. |
|
Commutator |
Hard-Drawn Copper |
Wear-resistant, good current flow. |
|
Brushes |
Carbon-Graphite |
Self-lubricating, durable. |
|
Housing |
Plastic/Metal |
Lightweight, heat-resistant. |
Speed-Torque Characteristics:
Universal motors naturally provide high torque at low speeds (ideal for crushing ice).
Speed drops under load but recovers quickly due to series-wound design.
Efficiency Improvements:
Laminated cores reduce iron losses.
Precision-balanced rotor minimizes friction losses.
Noise Reduction:
Skewed rotor slots reduce magnetic hum.
Rubber Mounting isolates motor vibrations.
|

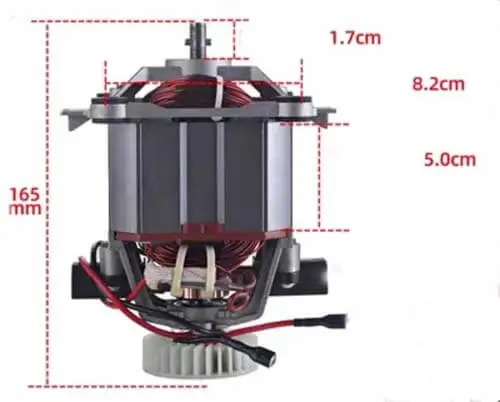

Parameter |
Value |
|
Power |
1000W (Peak) |
|
Voltage |
120V AC / 60Hz |
|
No-Load Speed |
~25,000 RPM |
|
Loaded Speed |
~18,000 RPM (under blending) |
|
Starting Torque |
2.5× rated torque |
|
Efficiency |
~60–70% (typical for universal motors) |
|
Cooling |
Fan-cooled |
|
Brushes |
Carbon, replaceable |
|
Challenge |
Solution |
|
Brush Wear |
Self-lubricating carbon brushes. |
|
Overheating |
Thermal fuse + ventilation slots. |
|
High Noise |
Skewed rotor, sound-dampening housing. |
|
Commutation Sparks |
EMI suppression capacitors. |
No-Load Test: Checks max RPM, current draw, and bearing noise.
Locked Rotor Test: Validates starting torque.
Thermal Runaway Test: Ensures motor doesn’t overheat in continuous use.
Vibration Analysis: High-speed balancing check.
Higher efficiency (~85%), longer lifespan (no brushes).
Used in premium blenders (e.g., Vitamix).
Smart Speed Control:
Microprocessor-based feedback for consistent blending.
A universal motor is ideal for blenders due to its high speed, compact size, and high starting torque. You could order all type AC blender motors from U54 series to U98 series on line. However, brush wear and efficiency limitations make BLDC motors a growing alternative in high-end models.
Would you like a comparison between universal and BLDC motors for blenders? Or a detailed winding/commutator design guide? Send your project motor request to us.
