Micro DC motors are the unsung heroes of modern household appliances. These small yet powerful motors drive everything from electric toothbrushes to coffee makers, offering precision, efficiency, and reliability. This article explores their design principles, common applications, and emerging trends in consumer electronics.

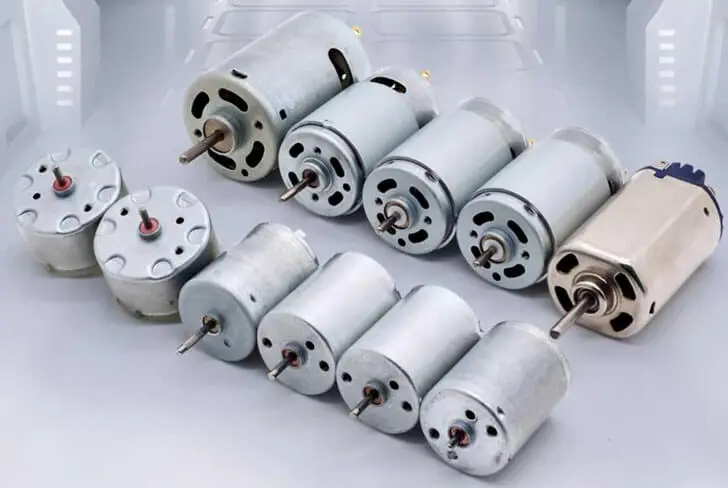

A micro DC motor is a compact electric motor (typically <50W) that runs on direct current (DC). It converts electrical energy into mechanical rotation, making it ideal for portable and low-power devices.
Key Characteristics:
Small Size (5mm–40mm diameter).
Low Voltage Operation (1.5V–24V DC).
High Efficiency (60–90%).
Precise Speed Control (via PWM or voltage regulation).
How It Works: Uses carbon brushes and a commutator to switch current direction.
Pros: Low cost, simple control, high torque at low speeds.
Cons: Brush wear, shorter lifespan, electrical noise.
Applications:
Electric toothbrushes

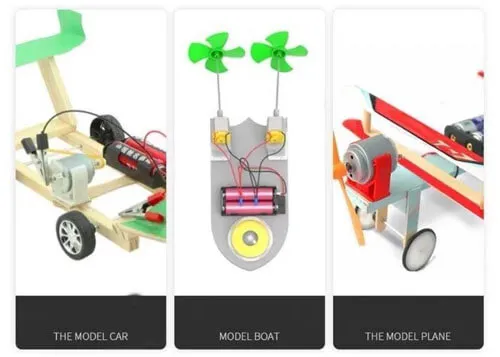

Toy cars
Small fans
How It Works: Uses electronic commutation (no brushes) with a permanent magnet rotor.
Pros: Longer lifespan, higher efficiency, quieter operation.
Cons: More expensive, requires a controller.
Applications:
Drones
High-end kitchen appliances

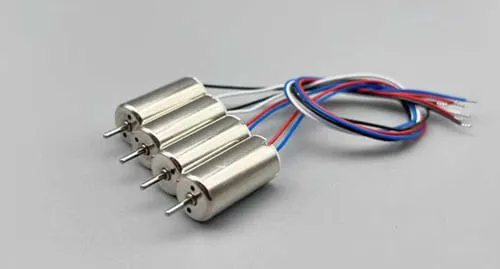

How It Works: Eliminates the iron core in the rotor for reduced inertia.
Pros: Faster response, lighter weight, less vibration.
Cons: Lower torque, sensitive to overheating.
Applications:
Medical devices (insulin pumps)
Camera autofocus systems
Precision robotics
Voltage Rating: 3V–12V for most household devices.
Current Draw: Optimized for battery-powered devices (e.g., AA/AAA or Li-ion).
Speed Control: PWM (Pulse Width Modulation) for adjustable speeds.

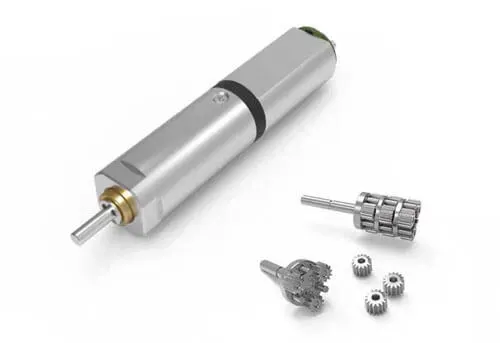

Gearbox Integration: For torque amplification (e.g., in electric screwdrivers).
Bearing Type:
Sleeve Bearings: Low cost, used in low-duty-cycle devices.
Ball Bearings: For high-speed, long-life applications.

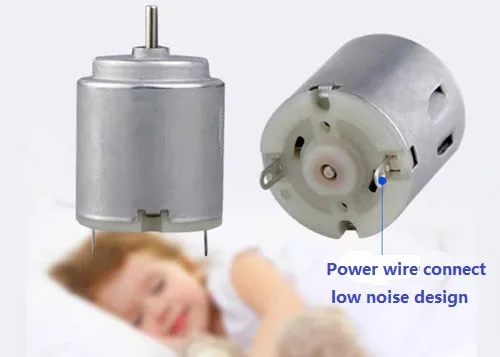

Noise Reduction:
Precision-balanced rotors.
Rubber dampeners in vibrating devices.
|
Component |
Material |
Purpose |
|
Rotor |
Neodymium magnets (BLDC) |
High magnetic strength. |
|

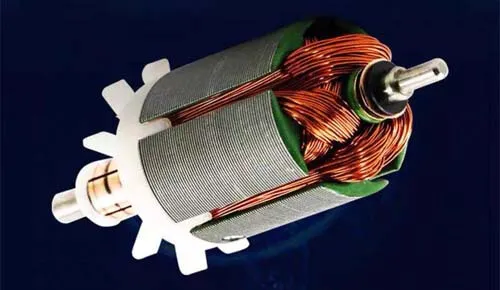

Windings |
Copper enamel wire |
Efficient current conduction. |
|
Brushes (Brushed) |
Carbon-graphite |
Self-lubricating, durable. |
|
Housing |
Plastic/Stainless steel |
Lightweight, corrosion-resistant. |
|
Appliance |
Motor Type |
Function |
|
Electric Toothbrush |
Brushed/BLDC |
Oscillating brush head movement. |
|
Hair Dryer |
Brushed DC |
Spins the fan for airflow. |
|
Coffee Grinder |
High-torque brushed DC |
Crushes coffee beans efficiently. |
|
Electric Shaver |
BLDC/Coreless |
Precision blade rotation. |
|
Smart Lock |
Micro geared DC |
Drives the locking mechanism. |
A. Brushless Dominance
BLDC motors are replacing brushed motors in premium appliances due to their longer lifespan and energy efficiency.
Example: Dyson vacuum cleaners use BLDC for powerful suction with low noise.
B. Smart Motor Control
IoT Integration: Motors with sensors for predictive maintenance (e.g., detecting wear in washing machines).
Voice/App Control: Smart blenders with programmable speed profiles.
C. Eco-Friendly Designs
Recyclable Materials: Motors with biodegradable insulation.
Energy Star Compliance: Lower power consumption in idle mode.
|
Challenge |
Solution |
|
Battery Drain |
High-efficiency BLDC + low-power modes. |
|
Overheating |
Thermal sensors + automatic shutoff. |
|
Wear & Tear (Brushed) |
Self-lubricating brushes or BLDC upgrade. |
|
Size Constraints |
Coreless or flat motor designs. |
Micro DC motors are essential in modern appliances, offering compact power, efficiency, and controllability. While brushed motors remain popular for low-cost devices, BLDC and coreless motors are gaining traction for high-performance applications. Future advancements in smart control and sustainability will further enhance their role in daily life.
What’s Next? Would you like a detailed comparison of brushed vs. BLDC for specific appliances? Or an in-depth guide on selecting the right micro motor for DIY projects? Share your project request with us now.
