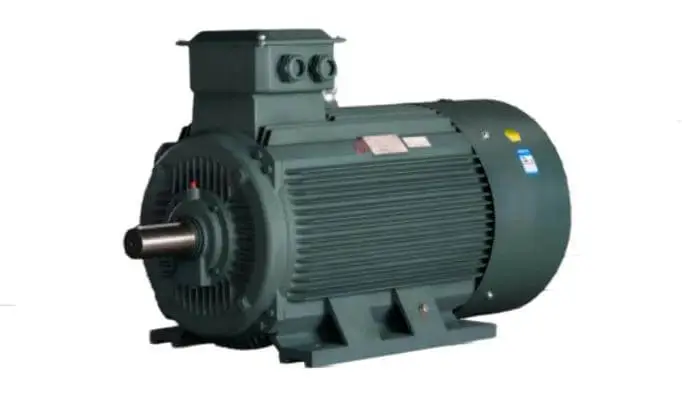

The operational performance of three-phase induction motors is critically dependent on power supply voltage stability. Variations in voltage magnitude and three-phase imbalance significantly affect motor efficiency, temperature rise, torque characteristics, and service life. This analysis examines these effects through two key aspects: voltage fluctuation and phase imbalance.
• Electromagnetic Torque: Motor torque varies with the square of voltage (T ∝ V²). While 10% overvoltage increases starting torque by 21%, it may cause magnetic saturation, increasing core losses by 30-40% and reducing efficiency by 2-3 percentage points.
• Stator Current: Excitation current rises disproportionately, potentially exceeding rated current by 15-20%. Continuous operation under such conditions accelerates insulation degradation (Class B insulation life halves for every 10°C temperature increase).
• Safety Threshold: IEC 60034-26 specifies ±5% voltage tolerance for continuous operation. Exceeding +10% requires derating or special insulation design.
• Starting Capability: A 10% voltage drop reduces starting torque by 19%, potentially causing starting failure in high-inertia loads. Starting time may extend by 25-40%, increasing winding thermal stress.
• Operational Impact: At full load, 10% undervoltage increases current by 11%, raising copper losses by 23%. Winding temperature rises 6-7°C, reducing insulation life expectancy by 50%.
• Minimum Allowable: NEMA MG-1 permits operation down to -10% voltage (342V for 380V systems) but recommends maintaining ≥-5% for continuous duty.
• Current imbalance typically measures 4-10× the voltage imbalance ratio. A 5% voltage imbalance can generate:
► 20-50% current imbalance
► 54% additional temperature rise (per NEMA MG-1)
► 2-3% efficiency reduction
• Negative sequence currents (up to 15% of rated) create counter-rotating fields, producing parasitic torque pulsations.
• Vibration levels increase by 200-300% at 5% imbalance
• Bearing life may reduce by 30% due to uneven loading
• Acoustic noise rises 5-8 dB(A)
• IEEE 141: <5% voltage imbalance (Vneg/Vpos)
• IEC 60034-26: <10% current imbalance
• Critical applications (e.g., CNC machines) often require <2% imbalance
• Steady-state fluctuation: ±5% (361-399V for 380V systems)
• Transient deviation: ≤±10% (<1 second duration)
• Voltage THD: <5% (IEEE 519)
• Monitoring: Install power quality analyzers tracking:
► Voltage unbalance factor (VUF)
► Current negative sequence component
► Temperature rise (RTD or thermistor monitoring)
• Corrective Devices:
► Automatic voltage regulators (AVRs) with ±1% precision
► Static VAR compensators for imbalance correction
► Active harmonic filters for THD reduction
• For ±10% voltage variation applications:
► Oversize conductors by 20%
► Specify Class F insulation (155°C) instead of Class B (130°C)
► Use 150% service factor motors in critical processes
• High-imbalance environments:
► Employ phase-balancing transformers
► Specify motors with 1.15 service factor
Three-phase induction motors demonstrate heightened sensitivity to voltage variations:
• Efficiency Impact: 10% voltage deviation causes 2-4% efficiency drop
• Thermal Stress: Every 5% imbalance reduces insulation life by 50%
• Mechanical Reliability: Vibration increases exponentially with imbalance
Recommended operational protocols:
1. Maintain voltage within ±5% of nominal
2. Limit voltage imbalance to <2% for premium-efficiency motors
3. Implement continuous power quality monitoring
4. For mission-critical applications:
• Use UPS systems with voltage regulation
• Install motor protection relays with unbalance detection
• Consider permanent magnet motors for voltage-variable environments
These measures ensure optimal performance while achieving the designed 20,000-40,000 hour operational lifespan under variable grid conditions.
