Single-Phase Induction Motor Wiring and Fault Analysis

Single-phase induction motors are widely used in household appliances and light industrial applications due to their simplicity and cost-effectiveness. However, their wiring and troubleshooting require careful attention to ensure proper operation. Below, we discuss the starting methods, wiring diagrams, and common faults of 220V AC single-phase motors.



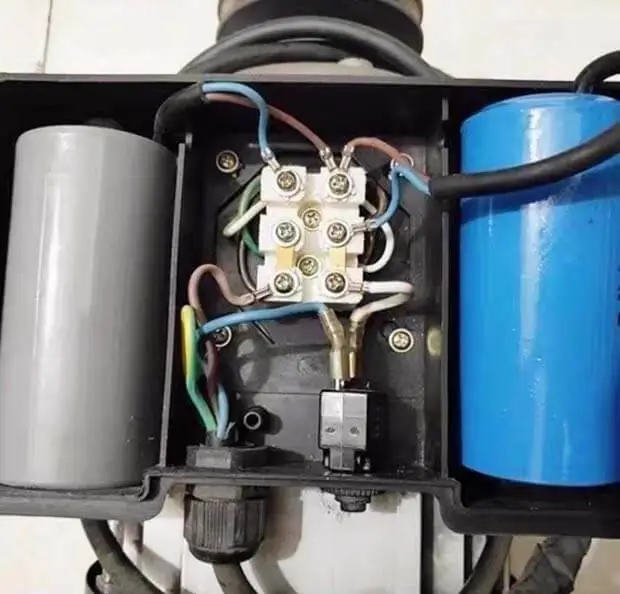

Single-Phase Induction Motor Wiring and Fault Analysis



1. Starting Methods of Single-Phase Induction Motors


(1) Split-Phase Starting (Resistance-Start Motor)


Principle: Uses an auxiliary starting winding with higher resistance to create a phase shift for starting torque.

Characteristics:

     • Low starting torque (1.5–2× rated torque).

     • Constant speed operation after startup.

Applications: Fans, washing machines, blowers.

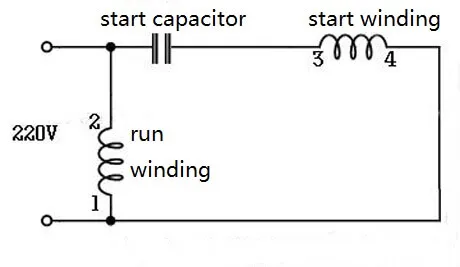

Wiring Diagram (Fig. 1):

   ♦ Split-Phase Motor Wiring



Single-Phase Induction Motor Wiring and Fault Analysis



   ♦ Key Points:

     • The starting winding (auxiliary coil) disconnects after reaching ~75% speed (via centrifugal switch or relay).

     • The main winding (run coil) continues operation.



(2) Capacitor-Start Motor


Principle: A start capacitor provides high starting torque by creating a stronger phase shift.

Characteristics:

     • Higher starting torque (2.5–3.5× rated torque).

     • Centrifugal switch disconnects the start capacitor at ~70–80% speed.

Applications: Pumps, compressors, conveyors.

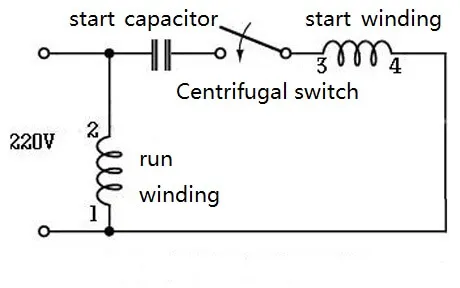

Wiring Diagram (Fig. 2):

   ♦ Capacitor-Start Motor Wiring



Single-Phase Induction Motor Wiring and Fault Analysis



   ♦ Key Points:

     • Start capacitor (high µF, 400V+ rating) is only active during startup.

     • If the motor fails to start quickly, the start winding may overheat and burn.



(3) Capacitor-Start Capacitor-Run Motor (Two-Value Capacitor Motor)


Principle: Uses both start and run capacitors for high torque and smooth operation.

Characteristics:

     • Start capacitor (high µF) provides initial torque.

     • Run capacitor (low µF) remains connected for improved efficiency.

Applications: Air compressors, woodworking machines, heavy-duty tools.

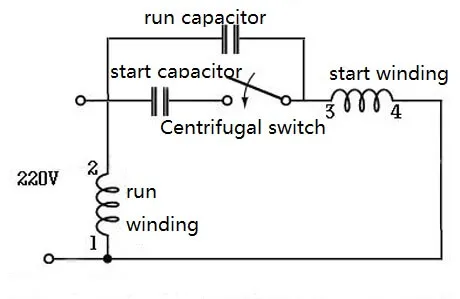

Wiring Diagram (Fig. 3):

   ♦ Dual-Capacitor Motor Wiring



Single-Phase Induction Motor Wiring and Fault Analysis



   ♦ Key Points:

     • The run capacitor stays in the circuit, improving power factor.

     • If the centrifugal switch fails, the motor may overheat due to prolonged capacitor use.



2. Forward/Reverse Control


Single-phase motors can reverse direction by swapping the start or run winding connections.



(4) Reversing with a DPDT Switch


Used in: Washing machines (where both windings have equal resistance).

Method: Swap L1 & L2 on the start winding.

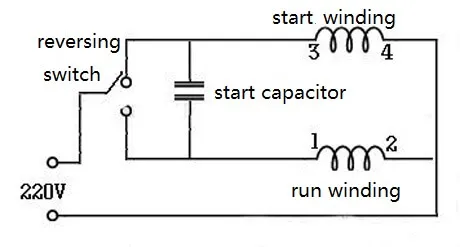

  ♦ Motor Reversing Circuit ( Fig. 4)



Single-Phase Induction Motor Wiring and Fault Analysis



(5) General Reversal Method


For Fig. 1, 2, 3, reverse either:

     • Start winding leads (1-2)

     • Run winding leads (3-4)



Identifying Windings:

     • Run winding: Low resistance (a few ohms).

     • Start winding: Higher resistance (tens of ohms).



3. Common Faults & Troubleshooting


Fault 1: Motor Fails to Start


(a) No Power or Open Circuit
Check:

    • Continuity test on motor leads.

    • Voltage test at power supply (should be ~220V).



(b) Motor Humming but Not Rotating
Possible Causes:

   • Mechanical jam (check bearings, rotor alignment).

   • Faulty centrifugal switch (stuck open/closed).

   • Dead start capacitor (test with a multimeter).



(c) Complete Silence (No Humming)
Likely Issue: Open main winding (check for continuity).



Fault 2: Motor Starts Only with Manual Help


Possible Causes:

   • Failed start capacitor.

   • Open start winding.

   • Centrifugal switch not engaging.



Fault 3: Circuit Breaker Trips Immediately


Possible Causes:

   • Short circuit in windings (check resistance).

   • Ground fault (use a 500V megohmmeter; insulation should be >2MΩ).



Fault 4: Motor Runs but at Reduced Speed


Possible Causes:

   • Worn-out run capacitor (reduced capacitance).

   • Centrifugal switch stuck closed (start winding remains active).

   • Short-circuited turns in main winding.



Fault 5: Motor Overheating


(a) Mechanical Issues
Bearing failure (noise, rough rotation).

Rotor-stator rubbing (check air gap).



(b) Electrical Issues
Wrong winding connection (start & run coils swapped).

Run capacitor failure (causes excessive current).

Centrifugal switch stuck closed (overheats start winding).



4. Conclusion


Understanding single-phase motor wiring and fault diagnosis helps in proper installation, maintenance, and repair. Key takeaways:



  • Start methods vary by application (split-phase, capacitor-start, dual-capacitor).

  • Reversing direction requires swapping start/run winding connections.

  • Common faults include capacitor failure, winding shorts, and centrifugal switch issues.

  • Preventive maintenance (capacitor testing, bearing lubrication) extends motor life.



For reliable operation, always:



   • Check capacitors (should not be bulging/leaking).

   • Verify centrifugal switch operation.

   • Test winding insulation periodically.


Key Terms:

Centrifugal Switch: Disconnects start winding after reaching speed.

Run Capacitor: Improves efficiency in permanent-split capacitor motors.

Megohmmeter: Tests insulation resistance.



This guide provides practical troubleshooting steps for common single-phase motor issues. Let us know if you need further details!
