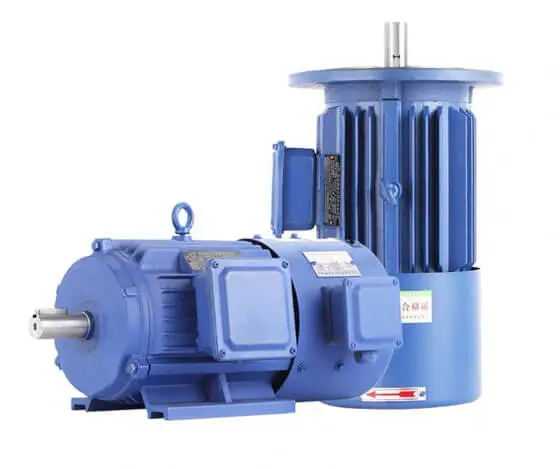

The power supply capacity matching for three-phase induction motors requires comprehensive consideration of starting characteristics, operational load, efficiency, and system stability. Proper sizing ensures that power supply equipment (generators, transformers, variable frequency drives) meets motor demands without excessive overdesign, which wastes resources. Below is a detailed analysis of key matching principles for different power supply types.
The generator must cover the motor’s peak instantaneous power demand (especially starting current) while maintaining voltage stability and frequency accuracy.
Key Parameters:
• Motor starting method (DOL, star-delta, soft starter, VFD).
• Starting current multiple (5–7× rated current for DOL).
• Power factor (typically 0.8–0.9 for motors).
• Generator transient response (voltage dip ≤15%, frequency fluctuation ≤±5%).
For direct-on-line (DOL) starting:
Generator kVA=Motor kW×Starting Current Multiple/Generator Efficiency×Power Factor
For soft starters/VFDs:
Generator kVA=1.5×Motor kW
• DOL starting: Generator capacity ≥ 3× motor power (e.g., 30 kW motor → 90 kVA generator).
• VFD starting: Generator capacity ≥ 1.5× motor power.
• Multiple motors: Sum of largest motor starting kVA + running power of other motors.
The transformer must limit voltage drop during motor starting (≤10–15%) while accommodating other connected loads.
Key Parameters:
• Starting current multiple.
• Transformer impedance (typically 4–6%).
• Load rate (recommended ≤80% for continuous operation).
For single motor:
Transformer kVA=Motor kW×Starting Current Multiple/Power Factor
For multiple motors:
Transformer kVA=1.25×(Sum of Running Loads+Largest Motor Starting kVA)
• DOL starting: Transformer ≥ 3× motor power (e.g., 11 kW motor → 35 kVA transformer).
• Star-delta starting: Transformer ≥ 2× motor power.
• VFD-powered motors: Transformer ≥ 1.2× VFD input power (accounts for harmonics).

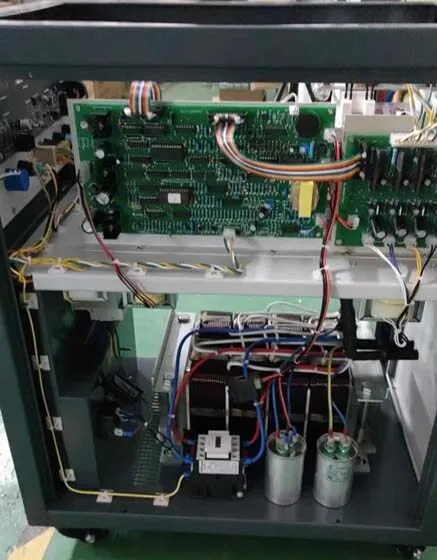

The VFD must match the motor’s rated current, overload capacity, and thermal limits, with additional derating for harmonics or high temperatures.
Key Parameters:
• Motor rated current & overload capacity (VFD must support 1.5× overload for 1 min).
• Carrier frequency (higher frequencies increase switching losses).
• Ambient temperature (derating required above 40°C).
VFD Rated Current=1.1×Motor Full-Load Current (FLC)
Power Selection Guidelines:
• General-purpose: VFD power ≥ 1.1× motor power (e.g., 15 kW motor → 18.5 kW VFD).
• Heavy-duty (e.g., cranes): VFD power ≥ 1.5× motor power.
• Constant torque loads (conveyors): 1.1× motor power.
• Variable torque loads (fans/pumps): 1× motor power.
• High-temperature environments: Add 10–20% margin.
1. Optimize Starting Method: Prefer soft starters or VFDs to reduce power supply demands.
2. System Redundancy:
• Generators/transformers: 10–20% spare capacity.
• VFDs: Dedicated cooling to avoid derating.
3. Efficiency vs. Cost Balance:
• High-duty cycles: Use high-efficiency transformers (e.g., SCB13).
• Intermittent operation: Lower capacity acceptable.
|
Power Supply |
Core Matching Principle |
Typical Capacity Ratio |
|
Generator |
Transient response + starting current |
DOL: 3–4× motor power |
|
Transformer |
Voltage drop limit + load stacking |
DOL: 3× motor power |
|
VFD |
Rated current + overload capability |
General: 1.1× motor power |
Proper power supply matching prevents motor starting failures, overheating, or grid instability, ensuring safe, efficient, and cost-effective operation. Future trends include smart load-adaptive systems and wide-bandgap semiconductor-based VFDs for further optimization.
Key Terms:
DOL (Direct-On-Line)
kVA (Kilovolt-Ampere)
VFD (Variable Frequency Drive)
SCB13 (High-efficiency dry-type transformer)
