As a core feedback component in electric motor control systems, encoders are used to detect rotor position, speed, and direction in real time. Their accuracy and reliability directly affect motor control performance. This article systematically elaborates on application principles, classification, installation standards, common faults, and troubleshooting measures.
1.1 Basic Principles
Encoders convert mechanical displacement or angular position into digital or analog electrical signals using photoelectric, magnetoelectric, or capacitive sensing technologies. Core components include:
• Code Disc: A rotating disc with periodic gratings (optical) or magnetic poles (magnetic).
• Sensor: Reads the code disc signal and converts it into electrical pulses (e.g., phototransistors, Hall elements).
• Signal Processing Circuit: Amplifies, shapes, and outputs standard signals (e.g., TTL, HTL, SSI).
1.2 Operating Modes

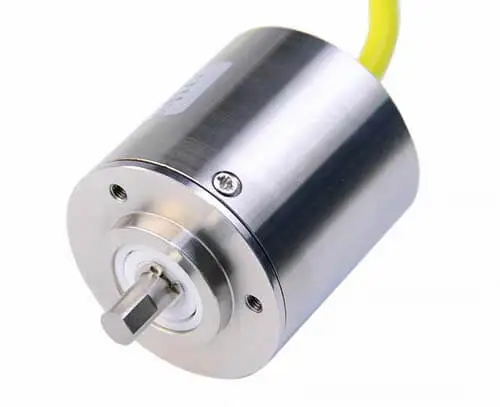

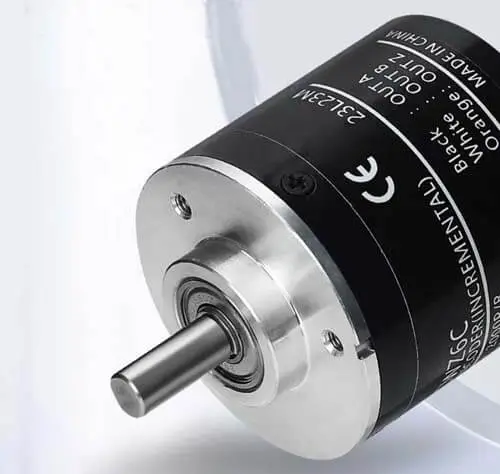

• Incremental Encoders: Output A/B-phase pulses (90° phase shift for direction detection) and a Z-phase index pulse. Relative displacement is calculated by pulse counting.

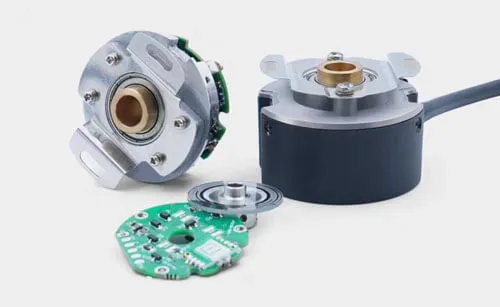

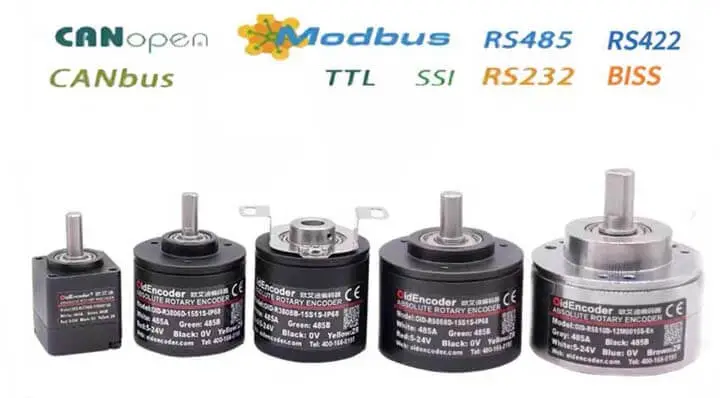

• Absolute Encoders: Provide a unique binary code (e.g., Gray code) for each position, retaining position data even after power loss.
|
Classification Basis |
Type |
Characteristics & Applications |
|
Signal Type |
Incremental Encoder |
Low cost, requires homing, suitable for speed control (e.g., servo motors) |
|
|
Absolute Encoder |
Direct absolute position output, no homing needed, ideal for precision positioning (e.g., CNC machines) |
|
Sensing Principle |
Optical Encoder |
High resolution (up to 0.001°), sensitive to contamination, used in clean environments |
|
|
Magnetic Encoder |
Resistant to oil/dust/vibration, moderate resolution (0.1°–1°), suited for industrial settings |
|
|
Capacitive Encoder |
Strong anti-interference, high cost, used in precision instruments |
|
Output Interface |
Parallel (TTL/HTL) |
Fast transmission, poor noise immunity, short-distance (≤10m) |
|
|
Serial (SSI/BiSS) |
Noise-resistant, long-distance (≤100m) |
|
|
Bus (Profibus/EtherCAT) |
For multi-axis synchronized control systems |
3.1 Mechanical Installation
• Shaft Alignment: Radial runout ≤0.02mm, axial wobble ≤0.01mm (calibrated with a dial indicator).
• Mounting: Use flexible couplings or damping brackets to avoid vibration transfer.
• Protection: Optical encoders require dust covers; magnetic encoders must be ≥50cm from strong magnetic sources (e.g., inverters).
3.2 Electrical Connection
• Shielding & Grounding: Use twisted-pair shielded cables with single-point grounding (controller side).
• Power Isolation: Encoder power supply should be separate from motor power (recommended: 5V/24V DC regulated).
• Noise Suppression: Keep signal cables ≥30cm from high-voltage lines; add ferrite cores if needed.
4.1 Signal Loss/Abnormality
• Symptoms: Motor jitter, position drift, or driver alarms (e.g., "Encoder Fault").
• Causes:
► Broken/shielded cable or poor contact.
► Code disc contamination (dust on optical encoders; metal debris on magnetic encoders).
► Power voltage fluctuation (<4.75V).
• Solutions:
► Re-terminate connectors or replace damaged cables.
► Clean code discs (optical: alcohol wipes; magnetic: non-magnetic brush).
► Stabilize voltage with a linear regulator.
4.2 Accuracy Degradation
• Symptoms: Increased positioning error or repeatability deviation.
• Causes:
► Loose code disc due to vibration.
► Thermal expansion (metal discs).
► Bearing wear causing eccentricity.
• Solutions:
► Tighten screws; apply threadlocker.
► Use low-expansion code discs (e.g., glass gratings).
► Replace bearings and recalibrate alignment.
4.3 Mechanical Damage
• Symptoms: Scratched code disc or bent sensor bracket.
• Causes:
► Improper installation (e.g., hammering).
► Foreign object intrusion (e.g., metal碎片卡入).
• Solutions:
► Replace damaged parts; use proper tools.
► Upgrade to IP65+ enclosures.
5.1 Installation & Debugging
• Avoid hot-plugging to prevent ESD damage.
• Manually rotate the motor once before power-up to check for obstructions.
5.2 Maintenance
• Inspect cables every 6 months (focus on bends).
• Clean optical encoders every 2,000 hours (lint-free cloth + pure alcohol).
• For high-temperature environments (>70°C), use high-temp encoders (-40~120°C).
5.3 Fault Diagnosis Flow
Step 1: Check power supply and wiring.
Step 2: Swap encoder to isolate faults.
Step 3: Use an oscilloscope to analyze signal integrity.
|
Fault Type |
Key Solutions |
Preventive Measures |
|
Signal Loss |
Clean code disc, repair shielding |
Use shielded cables; avoid interference |
|
Accuracy Drop |
Recalibrate alignment, replace discs |
Monitor bearings; control temperature |
|
Mechanical Damage |
Replace parts, follow installation SOPs |
Enhance protection; prevent debris ingress |
Proper selection (e.g., magnetic encoders for dusty environments), correct installation, and regular maintenance significantly extend encoder lifespan and ensure stable motor control performance.
