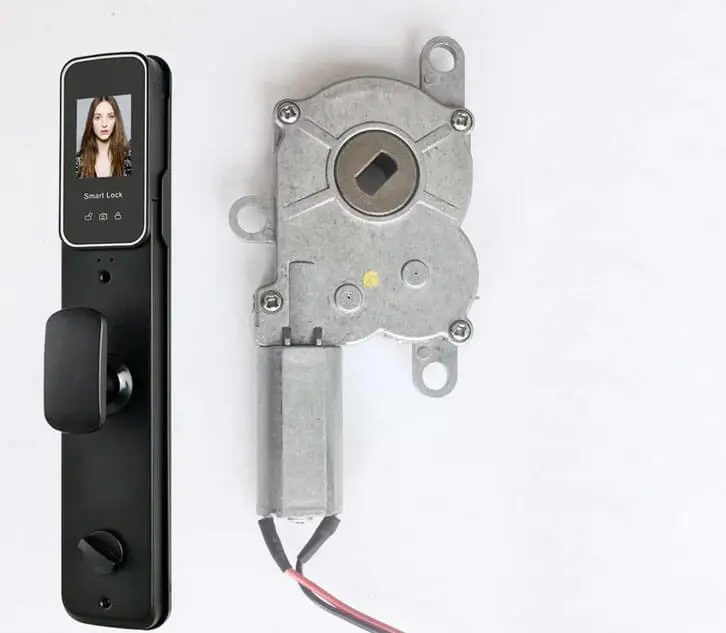

As smart home technology continues to evolve, smart locks have become an essential component of modern residential and commercial security systems. At the heart of these advanced locking mechanisms lies the micro gear motor - a compact yet powerful component that enables the seamless operation of electronic locking systems. This article explores the critical role of micro gear motors in smart lock applications, their technical specifications, and emerging trends in this rapidly developing field.

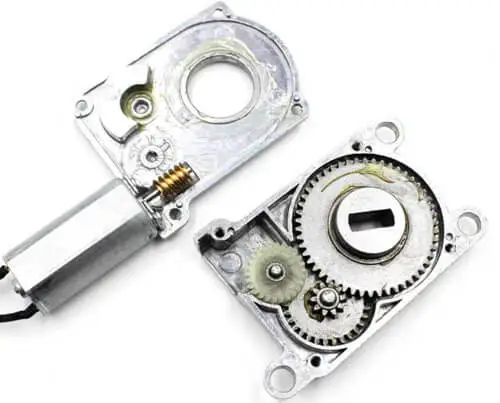

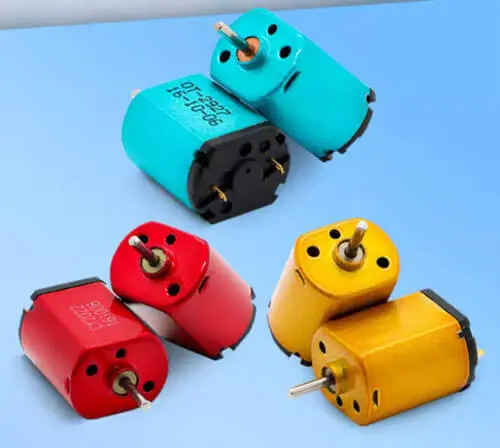

Micro gear motors integrate a small DC motor with a precision gearbox to provide optimized mechanical performance in a miniature package. Key characteristics include:
• Compact dimensions (typically 10-28mm in diameter)
• High torque output (0.5-5 Ncm)
• Low power consumption (operating at 3-12V DC)
• Long operational life (50,000-100,000 cycles)
• Quiet operation (<40 dB)
These motors are specifically engineered to meet the demanding requirements of smart lock applications where reliability, efficiency, and silent operation are paramount.
2.1 Bolt Actuation
The primary function involves:
• Extending and retracting deadbolts (typically requiring 0.5-3Ncm torque)
• Providing fail-safe or fail-secure operation modes
• Ensuring smooth movement even under mechanical resistance
2.2 Motorized Handle Operation
Advanced implementations feature:
• Assisted handle rotation for improved user experience
• Automatic handle retraction after unlocking
• Anti-panic functionality in emergency situations

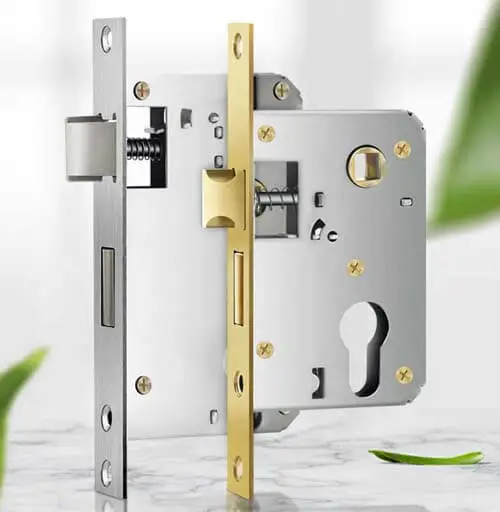

2.3 Multi-Point Locking Systems
Sophisticated designs incorporate:
• Simultaneous control of multiple locking points
• Sequential locking/unlocking sequences
• Force monitoring for jam detection
3.1 Reliability and Durability
• Minimum 50,000 operational cycles
• IP54 or higher protection rating
• Wide temperature tolerance (-20°C to +60°C)
3.2 Power Efficiency
• Typical current draw <300mA during operation
• Standby power consumption <10μA
• Optimized for battery-powered operation (6-18 month lifespan)
3.3 Performance Specifications
• Response time <1 second
• Operating noise level <40dB
• Precise position control (±5° accuracy)
4.1 Brushless DC (BLDC) Gear Motors
• Increased lifespan (>100,000 cycles)
• Higher efficiency (up to 85% energy conversion)
• Enhanced controllability with integrated drivers
4.2 Smart Motor Integration
• Built-in position sensors (Hall effect/optical encoders)
• Adaptive torque control algorithms
• Predictive maintenance capabilities
4.3 Energy Harvesting Solutions
• Kinetic energy recovery systems
• Solar-assisted power systems
• Wireless charging compatibility
When specifying micro gear motors for smart lock applications, engineers should consider:
Mechanical Parameters:
• Required torque output
• Speed requirements
• Physical size constraints
Electrical Characteristics:
• Voltage compatibility
• Current consumption
• Drive circuit complexity
Environmental Factors:
• Weather resistance
• Temperature range
• Vibration tolerance
Cost Considerations:
• BOM optimization
• Manufacturing scalability
• Maintenance requirements
Micro gear motors serve as the fundamental actuation technology enabling the security and convenience features of modern smart locks. As the smart home market continues to expand, these compact powerhouses are evolving to meet increasingly demanding performance requirements. Future developments in motor efficiency, intelligent control, and alternative power sources promise to further enhance the capabilities of smart locking systems.
For product developers, understanding the technical nuances of micro gear motor selection and integration remains crucial for creating competitive, reliable, and user-friendly smart lock solutions that meet the evolving needs of the security market.
