DC motors, as a long-established and widely used type of electric motor, play a crucial role in industrial automation, household appliances, and many other fields. Their reliability and performance directly impact the operational efficiency and stability of entire systems. However, many engineers and technicians often overlook a critical aspect—DC motor rotor balancing.

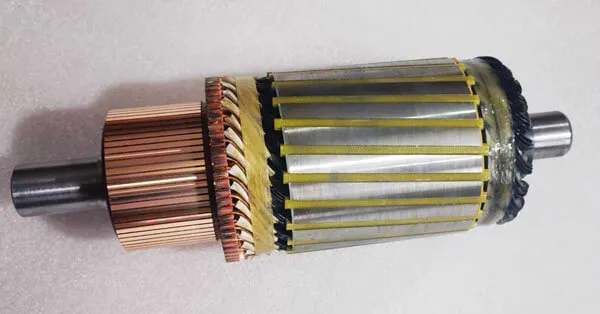

Rotor balancing refers to adjusting the mass distribution of the rotor so that its rotational axis aligns with the principal inertial axis, thereby reducing or eliminating centrifugal forces during rotation. In an ideal state, a perfectly balanced rotor produces minimal vibration when spinning. However, in actual production and assembly processes, factors such as material inhomogeneity, manufacturing tolerances, and assembly deviations often lead to some degree of imbalance.
This imbalance manifests as a deviation between the rotor’s mass center and its rotational center—known as the "unbalance amount." During rotation, this unbalance generates centrifugal force, which is proportional to the unbalance amount and the square of the rotational speed. Even a slight imbalance in a high-speed motor can produce significant centrifugal forces, severely affecting the motor’s lifespan and performance.
2. The Hazards of Rotor Imbalance: A Silent Killer of Motor Lifespan and Performance
The consequences of rotor imbalance are multifaceted and often create a vicious cycle:
• Shortened Motor Lifespan:
Centrifugal forces impose additional loads on bearings, accelerating wear and reducing bearing life.
Persistent vibration causes motor windings and insulation to degrade, leading to loosening, cracking, and eventual motor failure.
Long-term operation under imbalance significantly reduces the motor’s overall service life.
• Reduced Motor Performance:
Vibration decreases output power and efficiency, wasting energy that could otherwise be used for useful work.
It also impairs control precision and response speed, particularly in high-precision applications.
• Noise and Vibration:
Excessive vibration creates noise pollution and disrupts surrounding equipment.
In precision instruments and medical devices, vibration compromises measurement accuracy and reliability.
• Accelerated Component Wear:
Imbalance-induced vibration affects not only bearings but also fans, end covers, and fasteners.
Over time, this leads to loosening, fatigue, and even fractures, increasing maintenance difficulty and costs.
• Higher Maintenance Costs:
Imbalance-related failures often require unplanned downtime, causing production losses.
Frequent repairs and part replacements (bearings, windings, etc.) drive up operational expenses.
To ensure DC motor reliability and performance, rotor balancing is essential. Balancing methods are primarily categorized into static balancing and dynamic balancing.
Static Balancing
• Performed while the rotor is stationary.
• Suitable for thin rotors (e.g., fan blades).
• Principle: Identify the point of greatest mass deviation and adjust by adding/removing weight (e.g., balance weights, drilling).
• Simple and cost-effective but cannot eliminate rotational couple forces—best for low-speed motors.
Dynamic Balancing
• Conducted while the rotor is spinning.
• Effectively eliminates centrifugal forces and couple forces, ideal for high-speed motors.

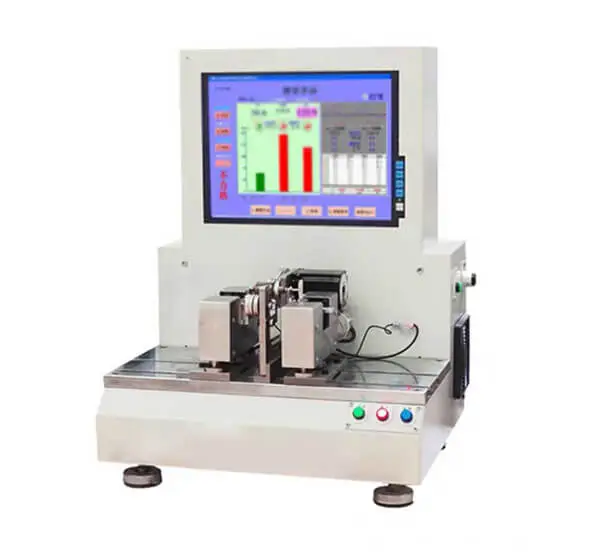

• Requires specialized balancing machines to measure vibration amplitude/phase and calculate unbalance magnitude/location.
• The most widely used method for achieving high balancing accuracy.
Dynamic Balancing Subtypes:
Single-Plane Balancing: For narrow rotors where couple forces are negligible.
Two-Plane Balancing: For wider rotors requiring both centrifugal and couple force correction.
Proper rotor balancing requires strict adherence to procedures and safety measures:
Preparation
• Clean the rotor surface (remove oil, dust, etc.).
• Inspect for defects (looseness, deformation).
• Prepare tools (balancer, weights, drill bits, etc.).
Rotor Installation

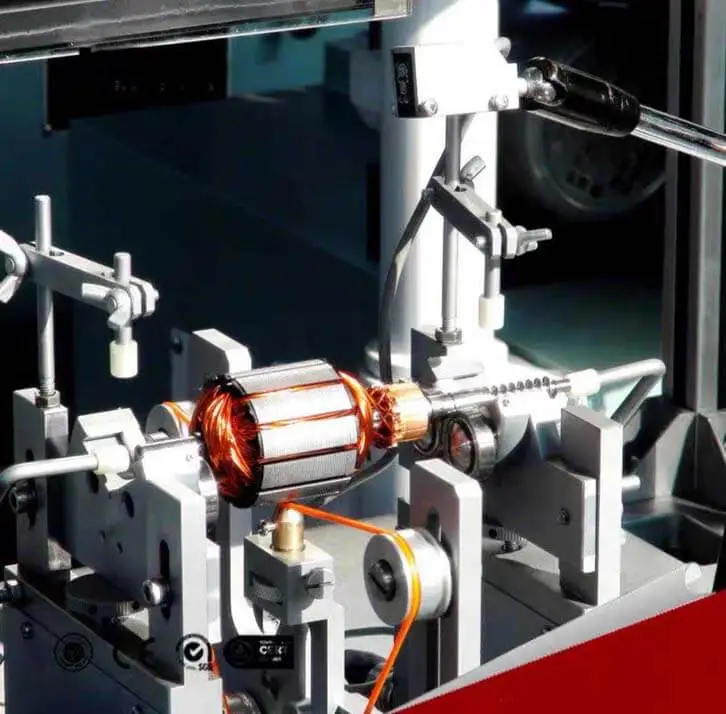

• Securely mount the rotor on the balancing machine.
• Set parameters (speed, measurement time) per the machine’s manual.
Vibration Measurement
• Start the balancer and record vibration amplitude/phase.
• The machine calculates unbalance amount and position.
Correction
• Adjust mass distribution (add/remove weight) as guided.
• Maintain symmetry and select optimal correction points.
Recheck
• Repeat measurements post-correction.
• Iterate until vibration falls within acceptable limits.
Key Precautions
• Select the appropriate balancing method and equipment.
• Follow operational guidelines strictly.
• Prioritize safety (prevent rotor ejection or injuries).
• Maintain and calibrate balancing machines regularly.
• Document balancing data for traceability and analysis.
DC motor rotor balancing is a critical factor in ensuring motor longevity and efficiency. Neglecting it leads to severe consequences—reduced lifespan, performance loss, excessive noise, and higher maintenance costs. Therefore, rotor balancing must be emphasized throughout motor design, manufacturing, assembly, and maintenance processes.
By implementing rigorous balancing practices, industries can enhance motor reliability, minimize downtime, and achieve long-term operational savings. Balance today for a smoother, longer-running tomorrow.
