Permanent Magnet Synchronous Motors (PMSM motors) are widely used in industrial drives, new energy vehicles, aerospace, and other fields due to their high efficiency, superior power density, and excellent control performance. However, as application scenarios demand increasingly higher motor performance, traditional empirical design methods can no longer meet these requirements. Therefore, adopting multi-objective optimization design (MOOD) methods—comprehensively balancing various performance metrics during the initial design phase—has become a key approach to enhancing motor performance.
Traditional motor design often focuses on a single objective, such as maximizing torque density or minimizing cost. However, motor performance is a complex, multidimensional space involving electromagnetic, mechanical, thermal, and noise-vibration characteristics. Single-objective optimization may degrade other performance metrics, making it difficult to achieve an optimal overall design.
Multi-objective optimization design seeks a balanced trade-off among conflicting objectives, producing a set of solutions (called the Pareto front) where no single objective can be improved without sacrificing another.
Key Challenges:
• Conflicting Objectives: E.g., increasing torque density may require larger motor size or higher current density, raising temperature.
• Complex Constraints: Voltage/current limits, thermal thresholds, size restrictions, etc.
• High Computational Cost: Extensive finite element analysis (FEA), thermal simulations, and mechanical analyses are needed.
• Pareto Front Selection: Choosing the best solution from the Pareto set based on real-world needs is non-trivial.
A multi-objective optimization problem can be mathematically formulated as:
• Objective Functions:
min/maxF(x)=[f1(x),f2(x),…,fn(x)]
where x is the design variable vector and fi(x) is the i-th objective.
• Constraints:
g(x)≤0, h(x)=0
(Inequality and equality constraints)
Design variables:
x∈X
where X denotes the feasible domain (or allowable range) of the design variables.
Key Concepts:
Domination: Solution x1 dominates x2 if it performs better in all objectives.
Pareto Optimality: A solution x∗is Pareto-optimal if no other solution dominates it.
Pareto Front: The set of all Pareto-optimal solutions.
(1) Problem Definition & Objective Selection
• Define goals (e.g., maximize torque density, minimize cost/torque ripple).
• Quantify objectives while considering correlations.
(2) Design Variables & Constraints
• Select key variables (stator/rotor dimensions, magnet parameters, winding turns).
• Set constraints (voltage/current limits, thermal thresholds, size bounds).
(3) Performance Modeling
• Finite Element Analysis (FEA): High accuracy but computationally expensive.
• Analytical Models: Fast but less precise.
• Surrogate Models (ML-based): Balance speed and accuracy (e.g., Gaussian processes, SVMs).
(4) Optimization Algorithms
• Genetic Algorithms (NSGA-II, MOEA/D): Robust for complex problems.
• Particle Swarm Optimization (PSO): Fast convergence.
• Sequential Quadratic Programming (SQP): Local optimization (risk of suboptimal solutions).
(5) Pareto Analysis & Decision-Making
• Ideal Point Method: Select solutions closest to utopian performance.
• TOPSIS: Rank solutions by proximity to positive/negative ideals.
• Expert Judgment: Holistic evaluation of trade-offs.
(6) Validation & Refinement
• Verify designs via prototyping or simulation.
• Iterate if performance falls short.
Objectives:
• Maximize torque density (T/V).
• Minimize torque ripple.
Design Variables:
• Stator inner diameter (Ds).
• Pole arc coefficient (αp).
• Magnet thickness (Hm).
Constraints:
• Slot fill factor (to limit current density).
• Maximum outer diameter.
Method:
• FEA-based modeling + NSGA-II optimization.
• Result: Pareto front reveals trade-off—higher torque density increases ripple. Optimal designs balance both.
ANSYS Maxwell/Motor-CAD: Electromagnetic and thermal simulation.
COMSOL Multiphysics: Multi-physics coupling (EM, thermal, structural).
JMAG-Designer: Motor-specific FEA.

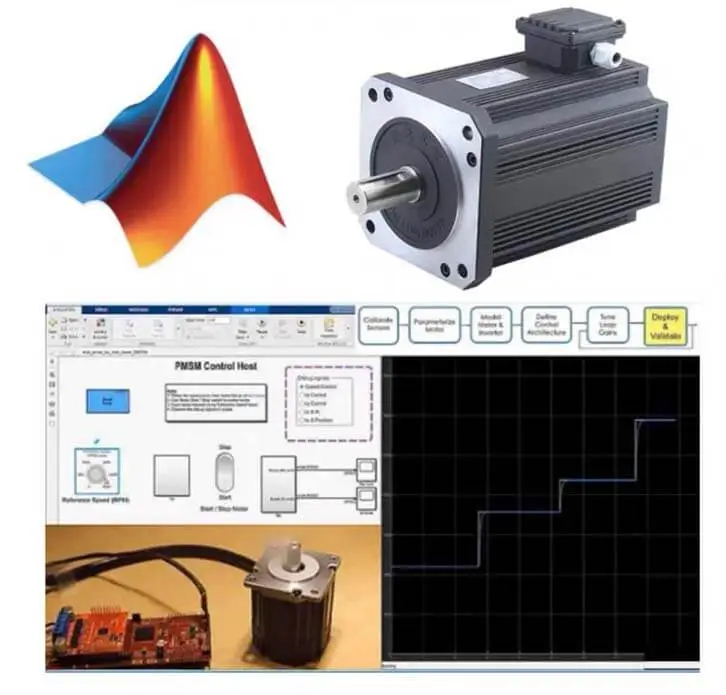

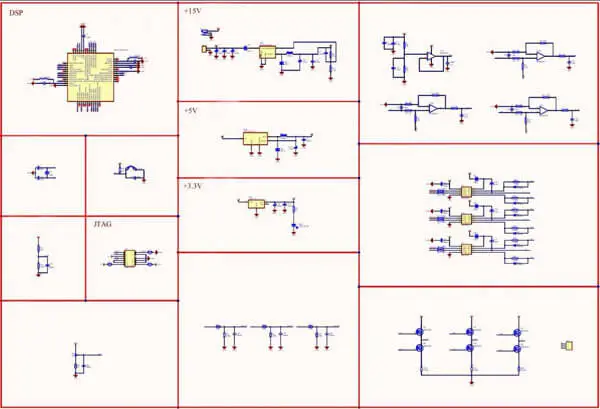

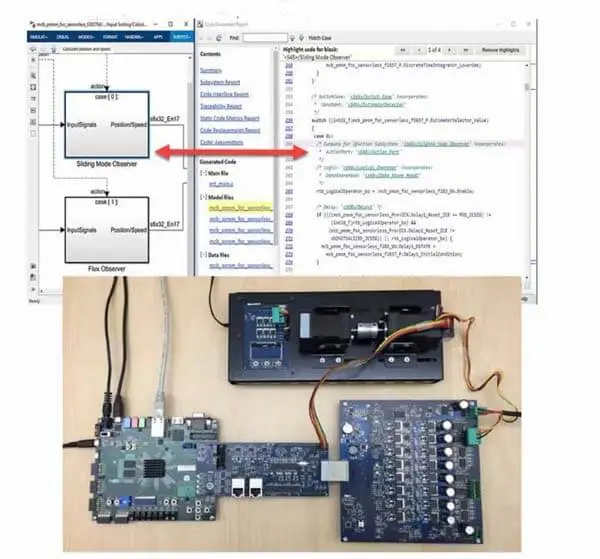

MATLAB/Simulink: Optimization and control algorithm development.
Isight: Multi-disciplinary optimization platform.
Multi-objective optimization is revolutionizing PMSM design. Future advancements will focus on:
• Integration with AI & Topology Optimization: Smarter, automated design exploration.
• Lifecycle Cost Optimization: Balancing manufacturing, operational, and maintenance costs.
• Algorithm Enhancements: Faster, more robust solvers for complex problems.
Conclusion:
By leveraging MOOD, engineers can unlock unprecedented motor performance—paving the way for next-gen applications in electrification, robotics, and beyond. Optimize today, lead tomorrow.
