In the wave of modern industrial automation, precise control and efficient execution are key to achieving core competitiveness. As a core component driving this progress, motors play a pivotal role. Among the diverse types of motors, DC servo motors, with their unique advantages, are gradually becoming the "universal key" in industrial scenarios, unlocking more possibilities for automation applications. However, with other options such as AC servo motors and stepper motors available, it is crucial to correctly select and understand the applicability of DC servo motors.

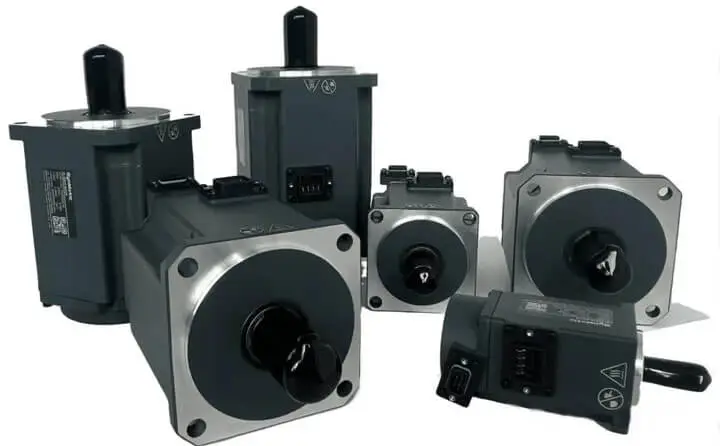

To understand the superiority of DC servo motors, we must first examine their basic principles and structure. Simply put, a DC servo motor is a motor capable of precisely controlling angle, speed, and position. It mainly consists of the following components:
DC Motor Body:
This is the core component that provides driving force, typically using permanent magnet DC motors, brushed DC motors, or brushless DC motors. Permanent magnet DC motors have a simple structure and stable torque characteristics; brushed DC motors offer cost advantages but suffer from brush wear; brushless DC motors are known for their high efficiency, long lifespan, and low maintenance costs.
Position Sensor:
This is the key component for closed-loop control, usually employing encoders, resolvers, or Hall sensors. The position sensor provides real-time feedback on the rotor's position, allowing the controller to make precise corrections and adjustments.

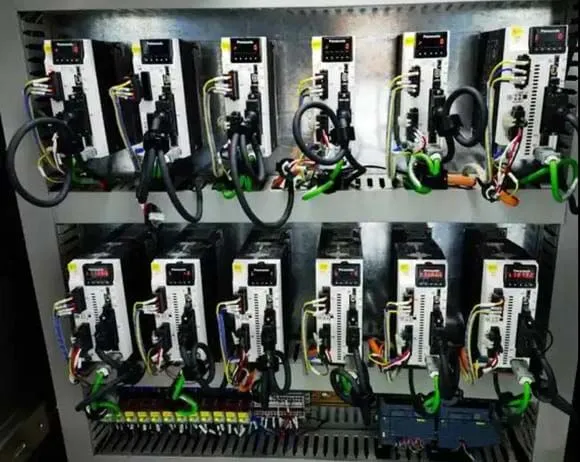

Drive Controller:
The controller receives control signals and adjusts the motor's current and voltage based on feedback from the position sensor, enabling precise control over angle, speed, and position.

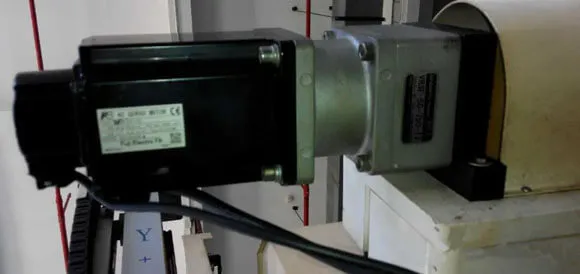

Gearbox (Optional):
In applications requiring higher torque or lower speed, a gearbox is often used to increase output torque while reducing speed.
The working principle of a DC servo motor is based on a closed-loop control system. The controller sends a control command, and the motor starts operating accordingly. The position sensor feeds back the motor's position to the controller, which compares it with the target value and adjusts the motor's output to minimize deviation, ultimately achieving the desired position or speed. This closed-loop mechanism ensures precision and stability, allowing the motor to adapt to various complex working conditions.
Compared to other types of motors, DC servo motors offer significant advantages in precision, response speed, and control performance, making them the preferred choice for many industrial applications:
High-Precision Control:
Thanks to the closed-loop control system and high-precision position sensors, DC servo motors achieve extremely accurate position, speed, and torque control, meeting the demands of high-precision applications.
Fast Response:
With low rotational inertia and excellent dynamic performance, DC servo motors can quickly respond to control command changes, enabling high-frequency, high-speed precision control.
Superior Control Performance:
DC servo motors excel in smooth speed control and precise positioning, avoiding issues like motor jitter or overshooting that could damage equipment or cause defective products.
Wide Speed Range:
DC servo motors offer a broad speed range, maintaining stable torque at low speeds while providing sufficient power at high speeds, adapting to various working conditions.
High Efficiency:
Particularly in brushless DC servo motors, electronic commutation replaces traditional brush commutation, reducing energy loss and improving overall efficiency.
Easy Control:
The control algorithms for DC servo motors are relatively simple, making them easy to integrate into various automation systems.
With their outstanding performance, DC servo motors are widely used in various industrial automation scenarios, including manufacturing, robotics, and medical equipment:
CNC Machine Tools:
DC servo motors control the precise movement of cutting tools, enabling high-precision, high-efficiency machining.
Industrial Robots:
Joints and drive mechanisms in industrial robots often use DC servo motors to achieve precise motion control and flexible operation.
Automated Production Lines:
In automated production lines, DC servo motors control conveyors, robotic arms, and sorting mechanisms, enabling intelligent and efficient manufacturing.
Packaging Machinery:
DC servo motors regulate feeding, cutting, and sealing operations in packaging machines, ensuring accuracy and quality.
Medical Equipment:
In medical devices, DC servo motors power surgical robots and precision instruments, enabling accurate operations and improving medical standards.
Printing Machinery:
DC servo motors control the rotation of printing rollers, achieving high-speed, high-precision printing.
Textile Machinery:
In textile machines, DC servo motors manage yarn winding and feeding, enhancing product quality and efficiency.
When selecting a motor, factors such as application requirements, cost, and performance must be considered. Below is a comparison of DC servo motors, AC servo motors, and stepper motors to help make an informed decision:
|
Feature |
DC Servo Motor |
AC Servo Motor |
Stepper Motor |
|
Control Precision |
High |
High |
Moderate |
|
Response Speed |
Fast |
Fast |
Slow |
|
Torque Characteristics |
Constant torque over a wide speed range |
Higher torque-to-inertia ratio, better acceleration |
High torque at low speed, performance drops at high speed |
|
Stability |
Good |
Good |
Prone to step loss |
|
Efficiency |
High (especially brushless) |
Higher |
Low |
|
Cost |
Moderate |
High |
Low |
|
Maintenance |
Brushed motors require brush replacement; brushless motors are low-maintenance |
No brushes, low maintenance |
Simple structure, low maintenance |
|
Applications |
High-precision, high-speed applications (CNC, robotics) |
Ultra-high-precision, high-speed applications (advanced CNC, robotics) |
Cost-sensitive, low-precision applications (simple positioning, printers) |
DC Servo Motors: Best for applications requiring high precision and fast response, with moderate cost and easy maintenance (brushless models).
AC Servo Motors: Ideal for ultra-high-precision and high-speed applications, offering superior performance but at a higher cost.
Stepper Motors: Suitable for cost-sensitive, low-precision applications, with simple structure but slower response.
With their high precision, fast response, and superior control performance, DC servo motors play a vital role in industrial automation, serving as the "universal key" for numerous applications. However, selecting the right motor requires a comprehensive evaluation of application needs, cost, and performance to determine the optimal drive solution.
