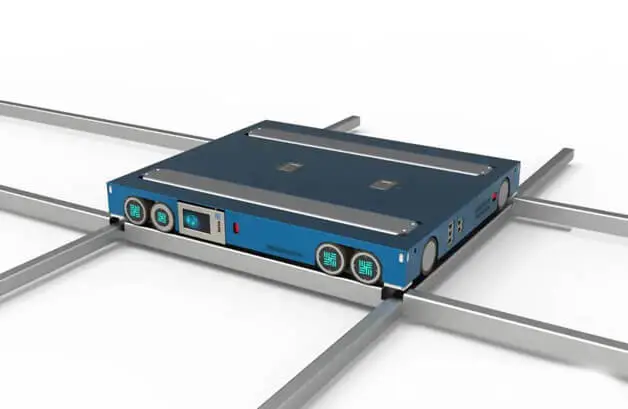

A Four-Way Shuttle is an intelligent warehousing and logistics device capable of bidirectional movement (forward/backward, left/right) on a horizontal plane. It operates as an autonomous robot, typically integrated with lifts and racking systems to enable 3D automated storage.
vs. AGVs: Four-way shuttles run on fixed tracks, offering higher speed, more precise positioning, and simpler control than AGV systems.
vs. Stacker Cranes: Unlike stacker cranes limited to linear movement, four-way shuttles navigate horizontally and switch layers via lifts, providing superior flexibility and adaptability.

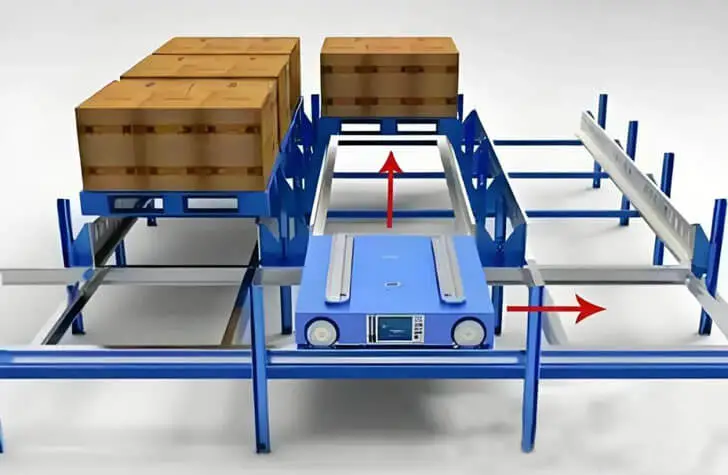

Equipped with two independent wheel systems (X/Y-axis), enabling agile navigation in complex warehouse layouts.
Uses wheel-system switching + real-time positioning to change directions. Integrates with lifts for cross-layer operations.
Non-vehicle mode: Lifts only transport goods; shuttles return to origin after tasks.
Vehicle mode: Shuttles enter lifts with goods, reducing transfer steps and boosting efficiency.
Ideal for irregular layouts or high-throughput warehouses. Scalable fleet size optimizes system capacity.
Managed by WCS/WMS for path optimization, dynamic obstacle avoidance, and real-time scheduling.
Wireless: Wi-Fi/Bluetooth/Zigbee for real-time control (flexible but latency-sensitive).
Wired: Ethernet/RS485 for stable, high-reliability scenarios.
Fieldbus: CAN/Modbus for real-time device control.
Cloud: IoT-enabled remote monitoring and data analytics.
Mecanum/Omni Wheels for omnidirectional movement.
Differential Steering + 4-Wheel Independent Control for precision.

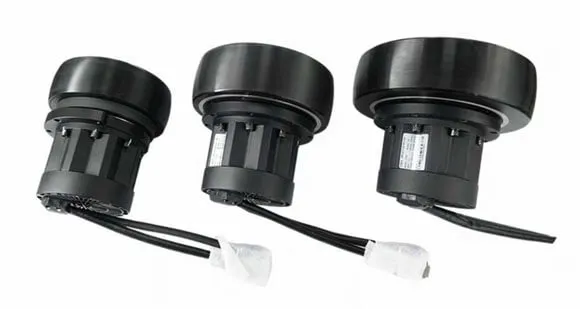

Tailord-made servo gearbox
By Application:

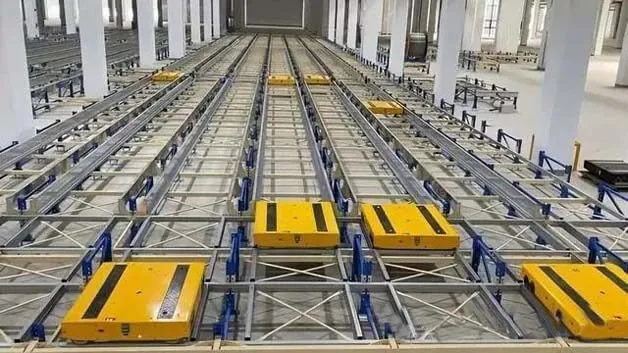

Pallet Shuttles: For heavy-load handling in dense storage.
Tote Shuttles: Designed for bin-based "goods-to-person" picking.
Customized Shuttles:
• Cold-chain/explosion-proof variants.
• Mini shuttles: Compact designs for archives/books (manual layer switching).
By Load/Function:
Heavy-Duty: Fleet-based bottleneck solutions.
Light-Duty: High-speed, multi-vehicle coordination.
By Environment:
Low-Temperature: Operates at -25°C~40°C (e.g., cold storage).
Standard: For ambient warehouses (compatible with forklifts/stackers).
By System Design:
Bidirectional Pallet Systems.
Mother-Daughter Shuttles: Paired vehicles to enhance throughput.
Space Utilization: 40–60% denser than traditional racks.
Modular Scalability: Expand fleets as business grows.
Energy Efficiency: Auto-charging at <20% battery.
High Initial Cost: ~¥100k–500k/unit.
Maintenance Complexity: Requires specialized technical support.
Lack of Standards: Inconsistent interface protocols.
AI Integration: Machine learning for dynamic scheduling.
Lightweighting: Carbon fiber to improve energy efficiency.
Human-Robot Collaboration: Synergy with AMRs/robotic arms.
Best For: High-density, high-turnover warehouses (ROI: 2–3 years).
Selection Criteria: Prioritize vendors with industry experience + localized service.
Risk Mitigation: Assess business stability to avoid overcapacity.
