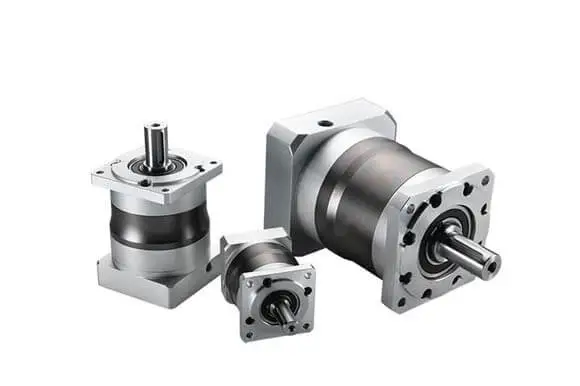

Planetary gearheads are widely used with servo motors to increase torque, reduce speed, and improve precision in motion control applications. Proper mounting is critical to ensure optimal performance, minimize backlash, and extend the lifespan of both the motor and gearbox. This article provides a step-by-step guide on how to correctly mount a planetary gearhead to a servo motor, including alignment techniques, coupling methods, and common pitfalls to avoid.
Before installation, verify the following:
1.1 Compatibility Check
Ensure the servo motor’s flange size, shaft diameter, and bolt pattern match the gearhead’s input specifications.
Check the rated torque and speed to confirm the gearhead can handle the motor’s output.
1.2 Backlash and Precision Requirements
Low-backlash gearheads (<1 arcmin) are ideal for high-precision applications like robotics and CNC machines.
Standard backlash (3-10 arcmin) is acceptable for general industrial use.
1.3 Lubrication and Sealing
Verify if the gearhead is pre-lubricated or requires manual greasing.
Ensure seals are intact to prevent contamination.
There are three primary ways to mount a planetary gearhead to a servo motor:

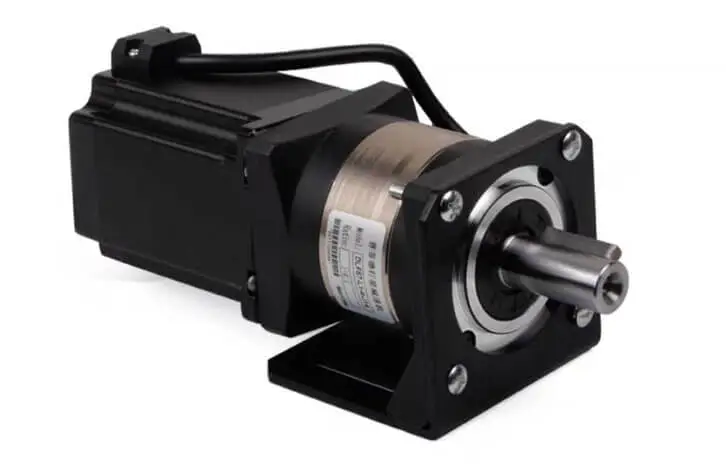

2.1 Direct Flange Mounting (Most Common)
The gearhead has a matching flange that bolts directly to the servo motor.
Steps:
• Align the motor shaft with the gearhead input bore.
• Insert and secure the motor shaft using a clamping mechanism (set screws or lock collar).
• Tighten the flange bolts in a cross pattern to ensure even pressure.
2.2 Coupling Mounting (For Non-Flange Gearheads)
Used when the motor and gearhead lack matching flanges.
A rigid or flexible coupling connects the motor shaft to the gearhead input.
Steps:
• Align the motor and gearhead shafts as precisely as possible.
• Secure the coupling with set screws or keyways.
• Check for misalignment (use a dial indicator if necessary).
2.3 Hollow-Shaft Mounting (For High-Torque Applications)
The gearhead has a hollow bore, and the motor shaft slides directly into it.
A locking mechanism (taper bushings or clamping rings) secures the connection.
Steps:
• Slide the motor shaft into the hollow bore.
• Tighten the clamping system evenly to prevent shaft distortion.
• Verify zero slippage under load.
Improper alignment leads to vibration, premature wear, and reduced efficiency.
3.1 Shaft Alignment Techniques
Dial Indicator Method: Measures radial and axial runout (ideal for high-precision setups).
Laser Alignment Tool: Used in critical applications like aerospace and medical devices.
Visual/Manual Check: For less demanding applications, ensure no visible wobble.
3.2 Torque Specifications

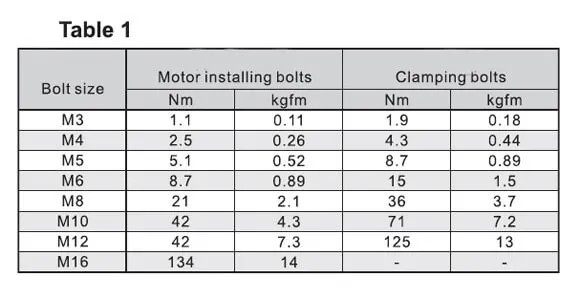

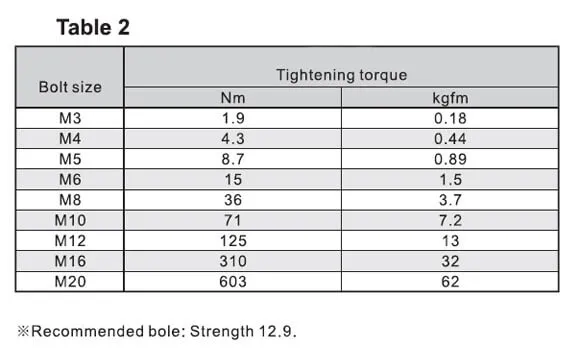

Follow the manufacturer’s recommended torque values for: ( See following table)
• Flange bolts
• Shaft clamping screws
• Coupling fasteners
Over-tightening can damage bearings; under-tightening causes slippage.
After installation, perform these checks:
4.1 Backlash Test
Rotate the output shaft manually to feel for excessive play.
Use a torsional encoder for precise backlash measurement.
4.2 Run Test
Operate the motor at low speed and check for:
• Unusual noise (indicating misalignment)
• Vibration (due to imbalance or poor coupling)
• Overheating (caused by excessive friction)
4.3 Load Testing
Gradually increase torque to verify stability under working conditions.
|
Mistake |
Consequence |
Solution |
|
Misaligned shafts |
Vibration, bearing failure |
Use precision alignment tools |
|
Incorrect bolt torque |
Loose connection or stripped threads |
Follow manufacturer specs |
|
Poor lubrication |
Increased wear, overheating |
Check and replenish grease |
|
Ignoring backlash specs |
Reduced positioning accuracy |
Select low-backlash gearheads for precision apps |
|
Using wrong coupling type |
Power loss, mechanical stress |
Choose rigid couplings for high torque |

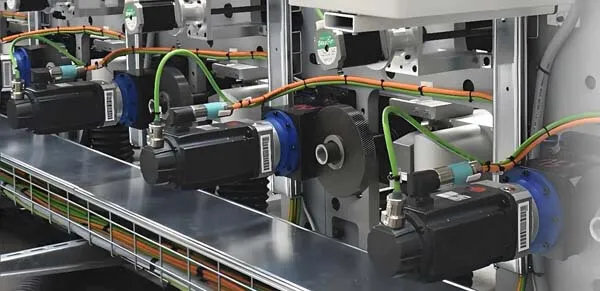

Robotics (articulated arms, grippers)
CNC Machines (spindle drives, rotary tables)
Packaging Machines (high-speed indexing)
Medical Devices (surgical robots, imaging systems)
Automation (conveyors, pick-and-place systems)
Mounting a planetary gearhead to a servo motor requires careful alignment, proper fastening, and thorough testing to ensure optimal performance. Whether using a direct flange mount, coupling, or hollow-shaft system, following best practices will maximize efficiency and longevity. Always refer to the manufacturer’s guidelines and perform post-installation checks to avoid costly failures.
Need help selecting the right gearhead for your servo motor? Consult with a motion control specialist to match torque, speed, and precision requirements.
