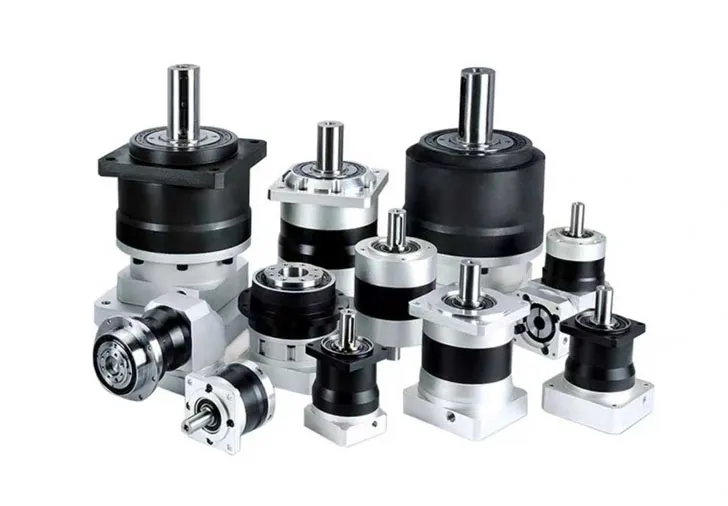

Planetary gearboxes are highly versatile and come in various configurations, each suited for specific applications based on speed, torque, and efficiency requirements. Below are the primary types of planetary gear systems and their characteristics.
Description:

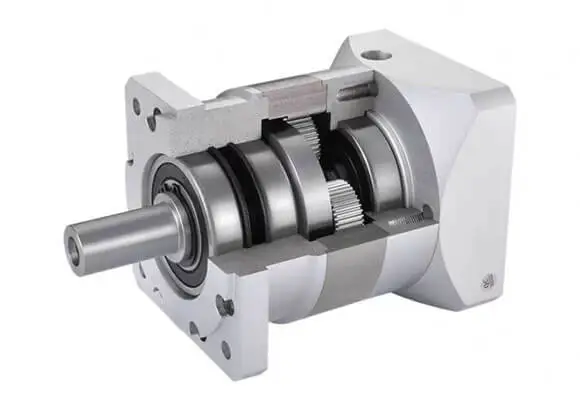

Consists of one set of planet gears, a sun gear, and a ring gear.
Provides a single reduction ratio (typically 3:1 to 10:1).
Advantages:
Compact and lightweight.
High efficiency (~97-98%).
Simple design with fewer components.
Applications:
Small robotics.
Conveyor belt drives.
Light-duty industrial machinery.

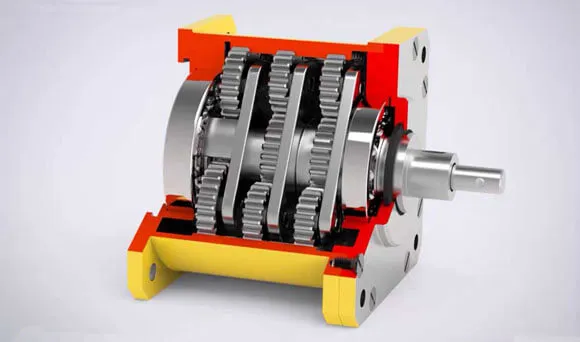

Description:
Contains two or more planetary stages connected in series.
Each stage multiplies the gear ratio, allowing for higher reduction ratios (up to 100:1 or more).
Advantages:
High torque output.
Better load distribution across stages.
Suitable for heavy-duty applications.
Applications:
Wind turbine gearboxes.
Heavy machinery (cranes, excavators).
Electric vehicle drivetrains.

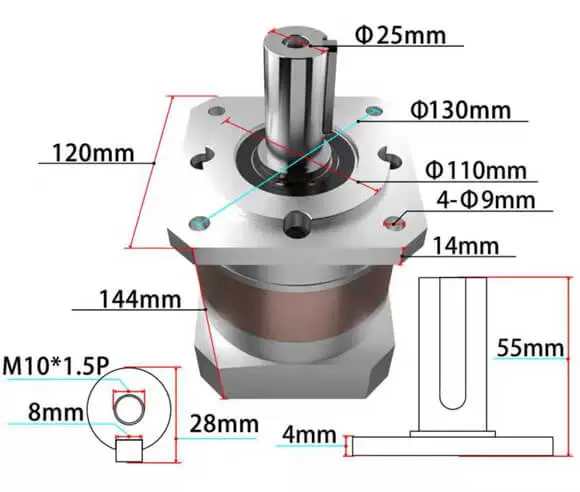

Description:
Input and output shafts are aligned in the same axis (coaxial).
Common in single and multi-stage designs. Refer to the inline planetary gear reducer here.
Advantages:
Space-saving design.
Minimal backlash.
Smooth power transmission.
Applications:
Servo motors.
CNC machines.
Printing machinery.

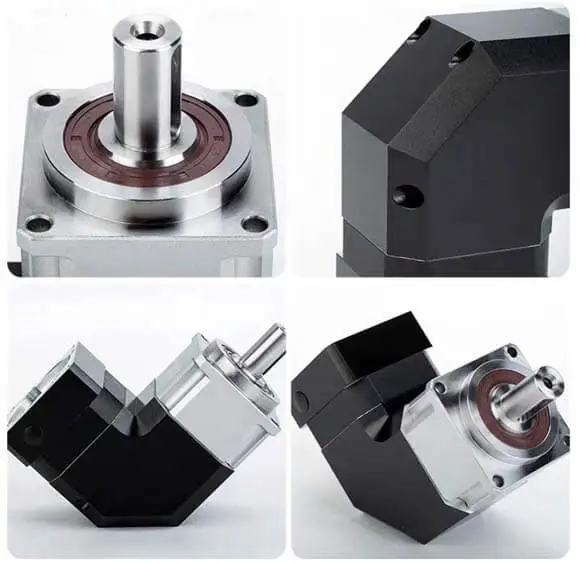

Description:
Uses bevel or hypoid gears to change the direction of power transmission by 90°.
Combines planetary and bevel gear mechanisms: 90° planetary gearbox
Advantages:
Allows flexible mounting configurations.
High torque capacity even at right angles.
Applications:
Agricultural machinery.
Mining equipment.
Marine propulsion systems.

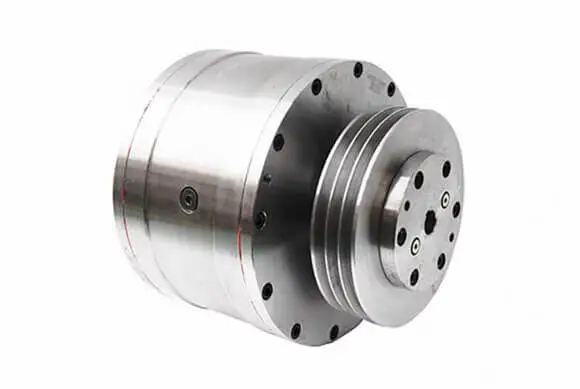

Description:
Allows different speed outputs from the same input (used in differential systems).
Commonly seen in automotive applications.
Advantages:
Enables speed differentiation between outputs.
Smooth power distribution.
Applications:
Automotive differentials (AWD/4WD systems).
Tracked vehicle steering systems.

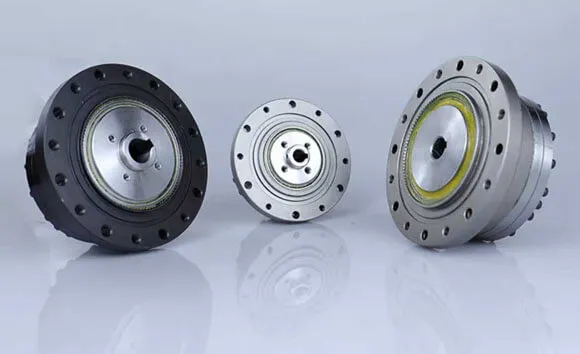

Description:
Uses a flexible spline and wave generator for ultra-high reduction ratios with zero backlash.
A specialized type of planetary gear system.
Advantages:
Extremely high precision.
Zero backlash.
High reduction ratios (50:1 to 320:1).
Applications:
Robotics (industrial & space robots).
Medical devices.
Optical positioning systems.

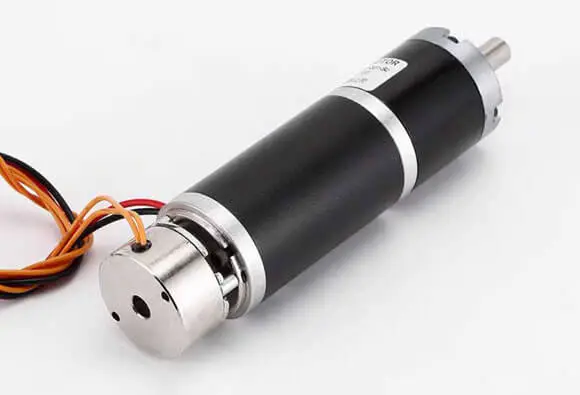

Description:
Includes an electromagnetic brake or clutch within the gearbox housing.
Used for controlled stopping or torque transmission. Planetary gear motor with brake option.
Advantages:
Eliminates the need for external braking systems.
Compact and efficient.
Applications:
Elevators and escalators.
Automated manufacturing systems.
Electric vehicle regenerative braking.
Comparison Table of Planetary Gearbox Types
|
Type |
Reduction Ratio |
Efficiency |
Key Feature |
Typical Applications |
|
Single-Stage |
3:1 – 10:1 |
97-98% |
Simple, compact |
Robotics, conveyors |
|
Multi-Stage |
10:1 – 100:1+ |
90-95% |
High torque |
Wind turbines, EVs |
|
Inline (Coaxial) |
3:1 – 100:1 |
95-97% |
Axial alignment |
Servo motors, CNC machines |
|
Right-Angle |
5:1 – 50:1 |
90-94% |
90° power transmission |
Mining, marine drives |
|
Differential |
Varies |
90-95% |
Speed differentiation |
Automotive differentials |
|
Harmonic Drive |
50:1 – 320:1 |
80-90% |
Zero backlash, high precision |
Robotics, medical devices |
|
With Brake/Clutch |
3:1 – 100:1 |
92-96% |
Built-in braking |
Elevators, industrial automation |
Conclusion
Planetary gearboxes are available in multiple configurations, each optimized for specific performance needs. The choice of gearbox type depends on factors such as torque requirements, space constraints, efficiency, and precision. Understanding these variations helps engineers select the best planetary gear system for their application. Would you like a deeper dive into any specific type or its design considerations?
