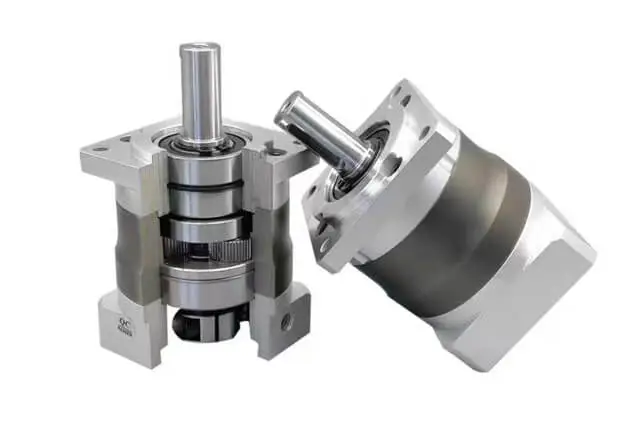

Planetary gearboxes, also known as epicyclic gear systems, are widely used in various industries due to their compact design, high torque density, and efficiency. They consist of a central sun gear, planet gears, a ring gear, and a carrier that holds the planet gears. This article explores the design principles, key components, advantages, and applications of planetary gearboxes.

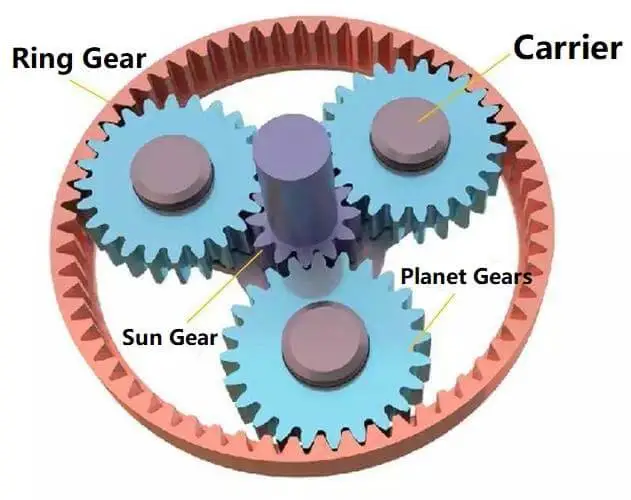

A planetary gear system consists of four primary components:
Located at the center of the system.
Drives the surrounding planet gears.
Can be either the input or output depending on the configuration.
Multiple gears (typically 3-6) that mesh with both the sun gear and the ring gear.
Mounted on a carrier that allows them to rotate around the sun gear.
An outer gear with internal teeth that mesh with the planet gears.
Can be fixed or rotating, depending on the gearbox design.
Holds the planet gears in place and rotates around the sun gear.
Acts as the output or input in different configurations.
Planetary gearboxes operate based on the relative motion of the sun, planet, and ring gears. Depending on which component is fixed, different speed and torque ratios can be achieved:

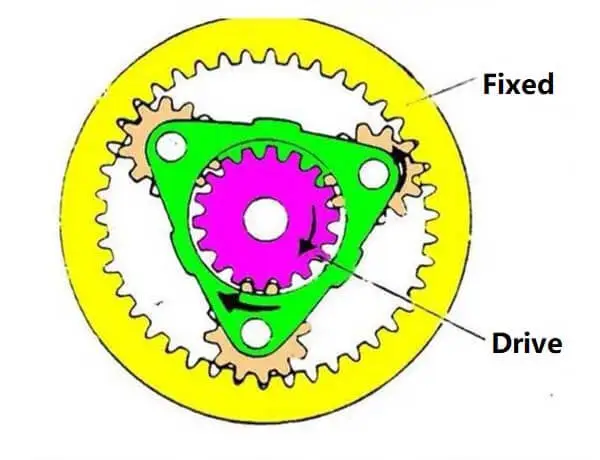

Fixed Ring Gear: The sun gear drives the planet gears, which rotate inside the stationary ring gear, causing the carrier to rotate at a reduced speed.

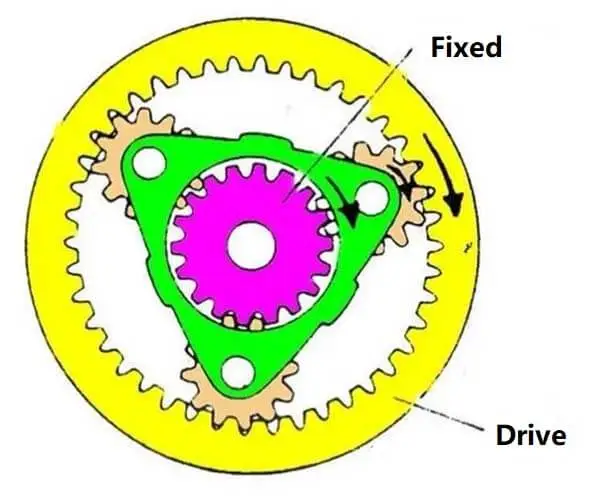

Fixed Sun Gear: The ring gear drives the planet gears, which orbit around the fixed sun gear, rotating the carrier.

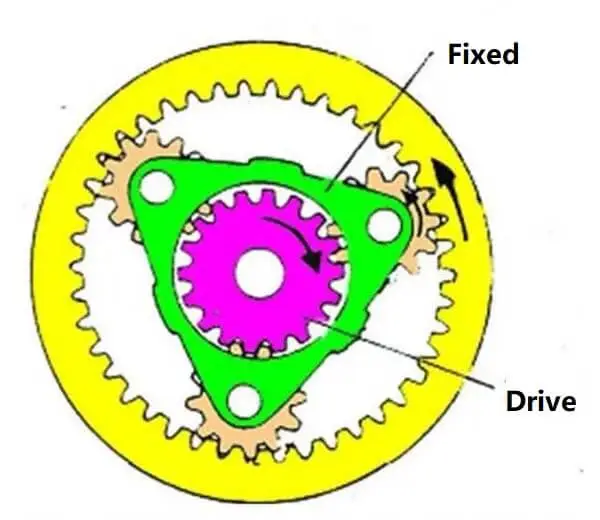

Fixed Carrier: The planet gears act as idlers, transmitting motion between the sun and ring gears, resulting in a reverse rotation.
The gear ratio is determined by the number of teeth on the sun, planet, and ring gears:
Gear Ratio=1+Number of Ring Gear Teeth/Number of Sun Gear Teeth

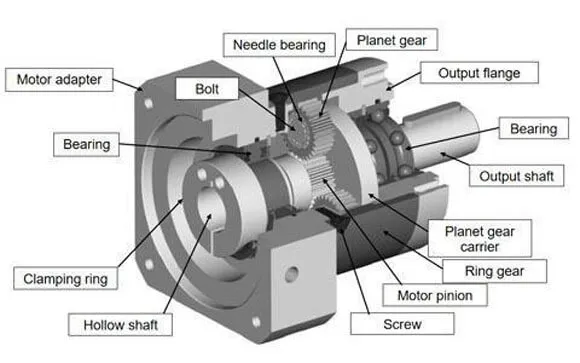

When designing a planetary gearbox, engineers must consider several factors:
Multiple planet gears distribute the load evenly, reducing stress on individual gears.
Proper alignment and precision manufacturing are crucial to prevent uneven wear.
Common materials include hardened steel, alloy steel, and sometimes polymers for lightweight applications.
Heat treatment (e.g., carburizing, nitriding) enhances durability.
Oil or grease lubrication reduces friction and wear.
Sealed gearboxes prevent contamination and extend lifespan.
High-quality bearings support the sun gear, planet carrier, and ring gear to minimize backlash and vibration.
Precision machining and balanced gears reduce noise.
Helical gears (instead of spur gears) can provide smoother operation.
High Power Density: Compact size with high torque capacity.
Efficiency: Typically 95-98% efficiency per stage.
Load Distribution: Multiple planet gears share the load, increasing durability.
Versatility: Different configurations (fixed sun, ring, or carrier) allow various speed and torque ratios.
Planetary gearboxes are used in industries requiring high torque in a compact space, including:
Automotive: Automatic transmissions, electric vehicle drivetrains.
Aerospace: Aircraft actuators, helicopter rotor systems.
Industrial Machinery: Robotics, conveyor systems, wind turbines.
Renewable Energy: Solar tracking systems, wind turbine gearboxes.
Small planetary gearboxes are used in normal transmission applications, including:
Consumer Electronics: Phone camera, robot toy
Commercial Equipment: Blender, ice machine, automatic coffee machine
Storage and Logistics: Electric drum drive, small AGV
Planetary gearbox design offers a robust and efficient solution for high-torque, compact power transmission applications. By carefully selecting materials, optimizing load distribution, and ensuring precision manufacturing, engineers can develop reliable gear systems for various industries. Future advancements in materials and manufacturing techniques will further enhance planetary gearbox performance and applications.
