Electronically Commutated Motors (ECMs) are advanced, high-efficiency motors widely used in HVAC blower applications. Unlike traditional AC induction motors, ECMs use electronic control to optimize performance, reduce energy consumption, and improve reliability.
Stator – Contains copper windings arranged to create a rotating magnetic field.
Rotor – Uses permanent magnets (ferrite or rare-earth like neodymium) instead of windings.

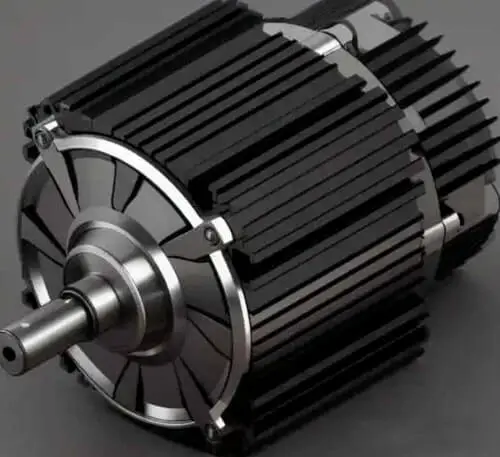

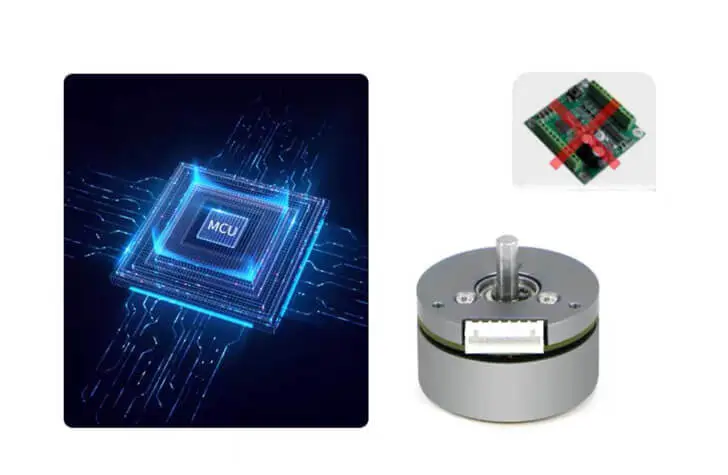

Electronic Controller – Manages power delivery, speed, and torque using PWM (Pulse Width Modulation).
Hall Effect Sensors (or Sensorless Control) – Detects rotor position for precise commutation.

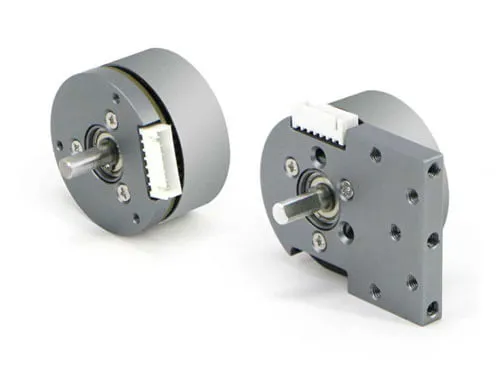

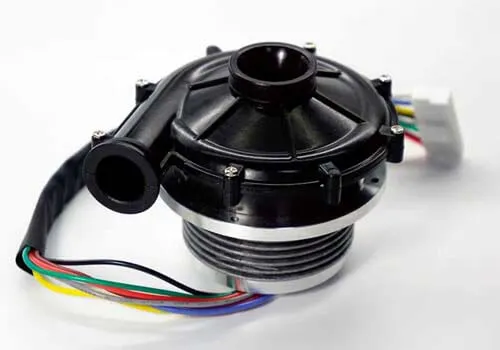

Blower Wheel/Impeller – Designed for optimal airflow with backward-curved, forward-curved, or airfoil blades.
The controller converts AC to DC, then switches phases to create a rotating magnetic field.
The permanent magnet rotor follows this field, eliminating slip losses (unlike induction motors).
Speed is adjusted dynamically based on demand, improving efficiency.
No slip losses (unlike PSC motors).
Variable speed operation reduces energy waste at partial loads.
Soft-start capability minimizes inrush current.
Constant CFM (Cubic Feet per Minute) mode – Maintains airflow despite duct pressure changes.
RPM (Speed) mode – Adjusts based on thermostat or control signals (0-10V, PWM, or digital communication).
Self-regulating – Automatically compensates for filter clogging or duct restrictions.
Smooth electronic commutation reduces vibration and noise.
Optimized impeller design minimizes turbulent airflow.
Compatible with smart thermostats & IoT HVAC systems.
Diagnostic capabilities (error codes, fault detection).
Adaptive algorithms for energy savings (e.g., ramping down when less cooling is needed).
No brushes (unlike traditional DC motors) → longer lifespan.
Thermal protection prevents overheating.
Sealed construction resists dust and moisture.
|
Feature |
ECM Blower Motor |
Traditional PSC Motor |
|
Efficiency |
65-80% |
30-50% |
|
Speed Control |
Fully variable |
Fixed or tapped speeds |
|
Energy Use |
Lower (saves 30-50%) |
Higher |
|
Noise Level |
Quieter |
Louder |
|
Response to Duct Pressure |
Self-adjusting |
Fixed CFM (unless external controls) |
|
Cost |
Higher upfront |
Lower upfront |
|
Lifespan |
20,000+ hours |
10,000-15,000 hours |

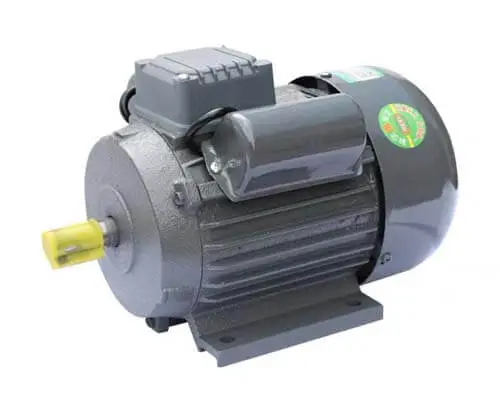

PSC motor: Permanent split capacitor motor. One type of single phase induction motor.
• HVAC Systems (Furnaces, air handlers, heat pumps)
• ERV/HRV (Energy Recovery Ventilators)
• Commercial Ventilation
• High-Efficiency Appliances
More sensorless control (reducing cost and complexity).
Integration with IoT & smart HVAC systems (remote monitoring, predictive maintenance).
Higher power density (smaller, more powerful motors).
Wider adoption of rare-earth magnets for better efficiency.
ECM blower motors offer superior efficiency, precise control, and quieter operation compared to traditional motors. While they have a higher initial cost, their energy savings and longer lifespan make them ideal for modern HVAC systems.
