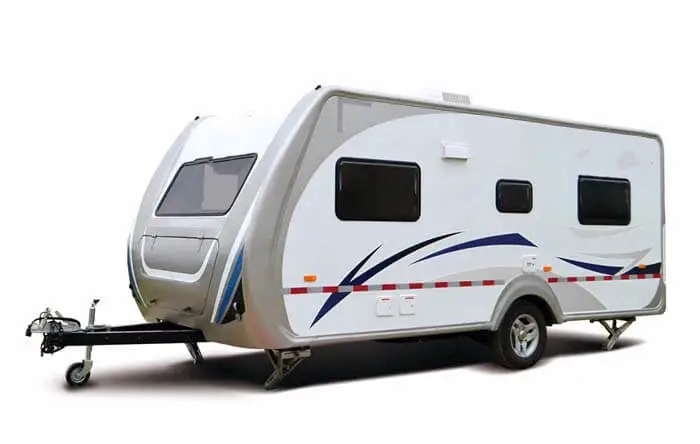

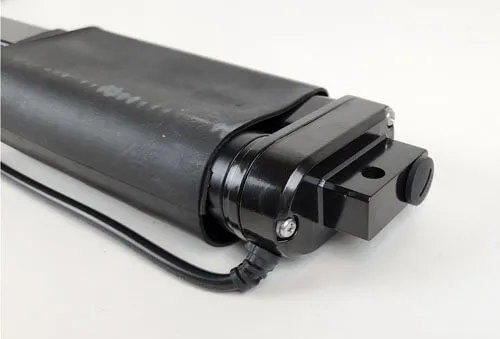

Linear actuators are essential for automating movements in camper trailers, such as lifting roofs, extending beds, adjusting steps, or stabilizing jacks. A well-designed actuator system ensures reliability, safety, and efficiency. Below is a comprehensive guide to designing linear actuators for camper trailers.
A. Load Requirements
Static Load (Weight when stationary)
Dynamic Load (Force during movement, including acceleration/deceleration)
Safety Factor (Typically 1.5x–2x max expected load)
B. Stroke Length
Must match the required travel distance (e.g., 12" for a pop-up roof, 24" for a slide-out).
Account for mechanical tolerances to avoid over-extension.
C. Speed & Duty Cycle
Speed: 0.2–1.5 in/sec (adjustable for smooth operation).
Duty Cycle: Continuous (for stabilizers) vs. intermittent (for roof lifts).
D. Environmental Factors
Water & Dust Resistance (IP65 or higher recommended).
Temperature Range: -20°F to +150°F (for outdoor use).
Corrosion Resistance (Stainless steel or anodized aluminum).
E. Power Supply
Voltage: 12V DC (common for trailers) or 24V DC (for higher loads).
Current Draw: Must match battery capacity (e.g., 5A–20A per actuator).
|
Type |
Pros |
Cons |
Best Use Case |
|
Electric Screw (ACME/Trapezoidal) |
High force, self-locking |
Slower speed, higher cost |
Stabilizer jacks, heavy lifting |
|
Ball Screw |
High efficiency, fast |
Less self-locking, expensive |
Slide-outs, precision movements |
|

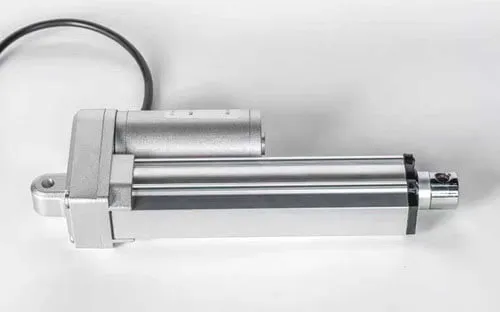

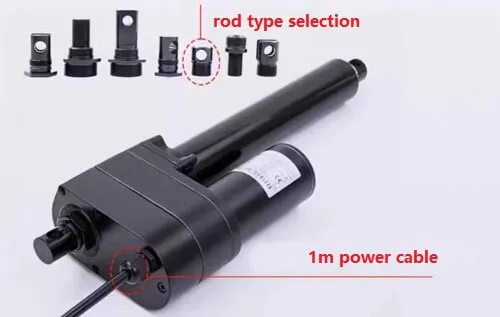

Rod-Style |
Compact, high force |
Exposed rod (needs protection) |
Roof lifts, steps |
|

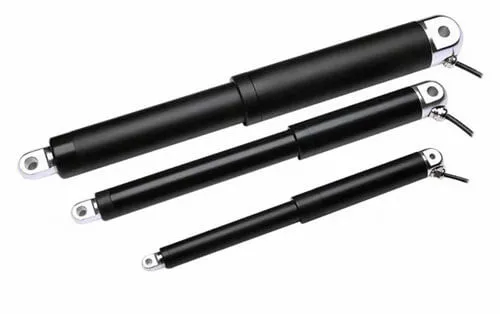

Tube-Style (Integrated Motor) |
Weatherproof, sleek |
Limited force |
Awning deployment, lightweight uses |
A. Motor Type
Brushed DC: Affordable, simple, but shorter lifespan.
Brushless DC: More efficient, longer life, but higher cost.
Gearmotor (Planetary/Spur): Increases torque while reducing speed.
B. Drive Mechanism
Lead Screw: Self-locking, good for holding position.
Ball Screw: Efficient, but may need a brake for holding.
Belt/Pulley: Faster, but less precise.
C. Feedback Options
Limit Switches: Basic end-stop control.
Potentiometer: Analog position feedback.
Encoder (Digital): Precise position tracking (for smart control).

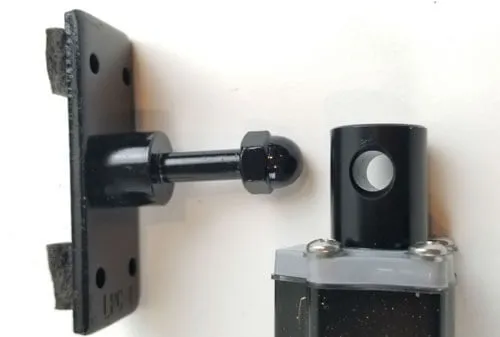

A. Mounting Configurations
Fixed-Moving (Single Pivot): Simple, but requires alignment.
Parallel Linkage: Distributes load for stability.
Scissor Lift Mechanism: For vertical lifting (pop-up roofs).
B. Force Distribution
Single Actuator: Simple, but may cause binding if misaligned.
Dual Synchronized Actuators: Better balance (requires sync control).
C. Bearing & Bushings
Linear Bearings: For smooth sliding motion.
Pivot Bushings: Reduce wear in hinged mounts.
A. Basic Control
Manual Switches (Momentary ON/OFF).
Relay Control (For high-current actuators).
B. Advanced Control
Microcontroller (Arduino, Raspberry Pi): For programmable movement.
Wireless Remote (RF/Bluetooth): For convenience.
Load Sensing: Auto-stop if obstruction detected.
C. Synchronization (For Multiple Actuators)
Mechanical Linkage: Gears/chains (simple but less precise).
Electronic Sync: Feedback-based control (encoder + PID loop).
Mechanical Locks: Prevent collapse if power fails.
Overload Protection: Current sensing or clutch mechanism.
Waterproofing: Sealed connectors & housing.
Emergency Manual Override: Crank or release mechanism.
|
Application |
Actuator Type |
Stroke Length |
Force Required |
|
Pop-Up Roof Lift |
Rod-style (Dual) |
12–24 in |
300–800 lbs (total) |
|
Slide-Out Room |
Ball screw (Dual) |
24–36 in |
500–1500 lbs (total) |
|
Stabilizer Jacks |
ACME screw |
6–12 in |
1000–3000 lbs (each) |
|
Folding Steps |
Compact tube-style |
6–10 in |
50–150 lbs |
Actuators: Venture, Thomson, PJM( Power Jack Motion)
Controllers: LINAK (for synchronized systems).
Power Supply: Deep-cycle 12V battery + fuse protection.
Designing a linear actuator system for a camper trailer involves balancing force, speed, durability, and control. Electric screw or rod-style actuators with 12V DC motors are common choices(12V linear actuators). For heavy-duty applications (slide-outs, stabilizers), dual synchronized actuators with feedback control ensure smooth and safe operation.
Would you like help selecting specific components or designing a custom mechanism? Let us know your request.
