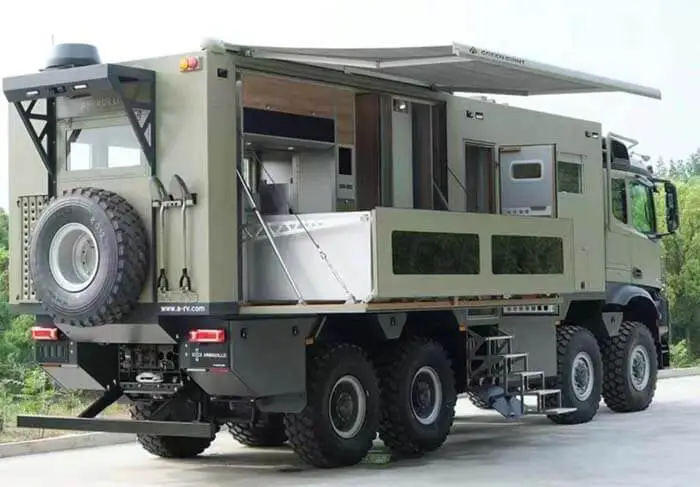

Linear actuators play a critical role in modern RVs (Recreational Vehicle), automating slide-outs, leveling jacks, awnings, and lifting systems. This guide covers key design considerations, actuator types, and integration strategies for reliable RV applications.
Load Capacity
Stabilizer jacks: 1,500–5,000 lbs per actuator
Slide-outs: 500–2,000 lbs (depending on size)
Awnings/steps: 50–200 lbs
Stroke Length
Slide-outs: 24–48 inches
Leveling jacks: 12–24 inches
Roof lifts: 12–36 inches
Speed
0.2–1.5 in/sec (faster for awnings, slower for heavy loads)
IP Rating: IP66/IP67 (dustproof & waterproof actuators)
Temperature Range: -30°F to +185°F
Corrosion Resistance: Stainless steel shafts, anodized aluminum housings
Vibration Resistance: Reinforced mounting for road travel
Voltage: 12V DC (standard) or 24V DC (high-load systems)
Current Draw: 5A–30A per actuator (depends on load)
Battery Backup: Fail-safe power retention for critical systems
|
Application |
Best Actuator Type |
Key Features |
|
Slide-Out Rooms |
Ball screw or ACME screw |
High force (1,000–2,000 lbs), synchronized control |
|

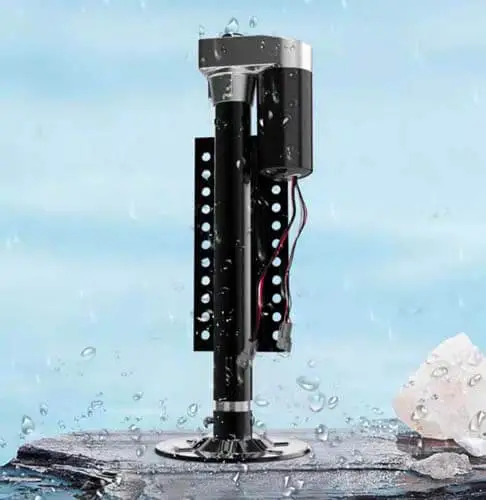

Leveling Jacks |
Heavy-duty electric screw |
3,000–5,000 lbs, self-locking |
|
Pop-Up Roofs |
Rod-style or scissor lift |
Smooth motion, 300–800 lbs |
|
Awnings |
Compact tube-style |
Fast deployment, 50–150 lbs |
|
Steps & Doors |
Miniature linear actuators |
Low power, compact |

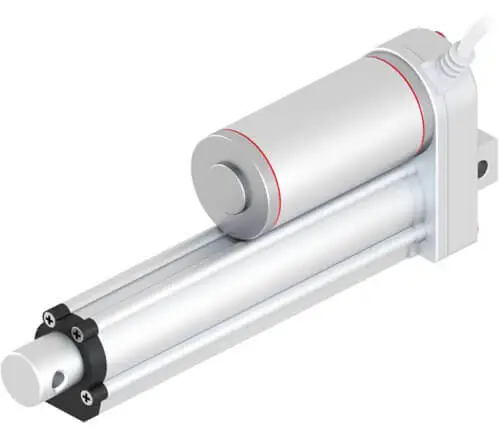

Brushed DC: Cost-effective, good for intermittent use (e.g., steps).
Brushless DC (BLDC): Longer lifespan, better efficiency (slide-outs, jacks).
Gearmotor Options:

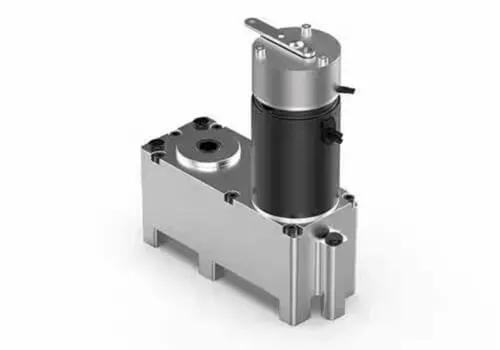

Planetary Gear Motors: High torque, compact (best for jacks).
Spur Gear: Simpler, but bulkier.
ACME/Trapezoidal Screw: Self-locking, best for stabilizers.
Ball Screw: High efficiency, smooth motion (slide-outs).
Belt Drive: Faster but less precise (awnings).
Limit Switches: Basic end-stop detection.
Potentiometer: Analog position feedback.
Encoder (Digital): Precise synchronization for slide-outs.
Fixed-Pivot (Single Actuator): Simple but requires alignment.
Dual Synchronized Actuators: Prevents binding in slide-outs.

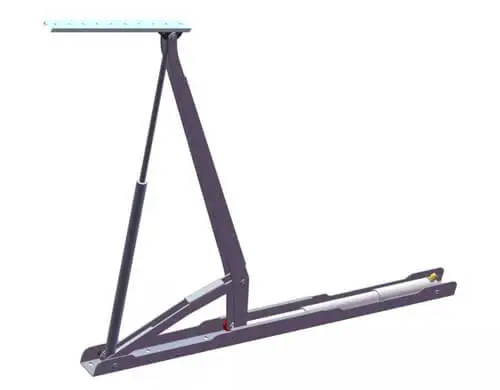

Scissor Lift Mechanism: For vertical roof extensions. (PLA36 inline linear actuator)
Single Actuator: Suitable for steps, awnings.
Dual/Triple Actuators: Needed for slide-outs and leveling systems.
Linear Guide Rails: For smooth slide-out movement.
Pivot Bushings: Reduce wear in lifting mechanisms.
Manual Switches (Momentary ON/OFF).
Relay Control (For high-current actuators).
Microcontroller (Arduino, CAN bus): Programmable logic for auto-leveling.
Wireless Remote (Bluetooth/RF): For convenience.
Load Sensing & Obstruction Detection: Auto-stop if resistance detected.
Mechanical Linkage (Gears/Chains): Simple but less precise.
Electronic Sync (Encoder + PID Control): Ensures smooth movement.
Mechanical Locks: Prevent collapse if power fails.
Overload Protection: Thermal cutoffs or current sensors.
Emergency Manual Override: Crank or release lever.
Waterproof Connectors: Prevents corrosion in outdoor use.
Smart Integration: IoT-enabled actuators for remote monitoring.
Lightweight Materials: Aluminum & composite housings.
Energy Efficiency: Regenerative braking in BLDC motors.
Modular Designs: Plug-and-play actuator systems.
Power Jack Motion (High-quality RV-specific actuators)
Venture (Durable slide-out & jack systems)
Thomson Linear (Precision ball screw actuators)
LINAK (Advanced synchronized lift systems)
Designing linear actuators for RVs requires balancing load capacity, environmental resistance, and smart control. Key applications like slide-outs and leveling jacks demand high-force, synchronized actuators, while awnings and steps benefit from compact, fast models.
