Electronically Commutated Motors (ECMs) represent a significant advancement in motor technology, offering superior efficiency, precise control, and reduced energy consumption compared to traditional AC induction motors. ECMs are widely used in HVAC systems, appliances, and industrial applications where energy savings and performance optimization are critical.

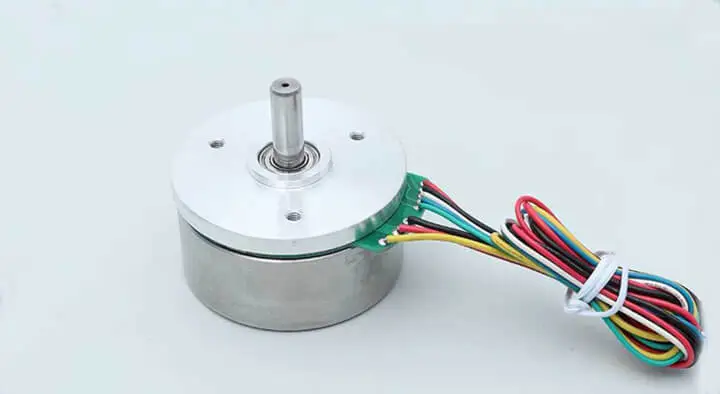

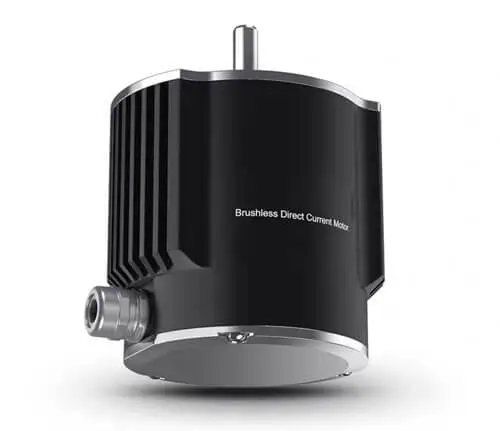

ECM motors are a type of brushless DC motor (BLDC) or permanent magnet synchronous motor (PMSM) that utilize electronic commutation instead of mechanical brushes. Key components and principles include:
• Electronic Commutation: A built-in microprocessor controls the motor’s current flow, eliminating the need for brushes (found in traditional motors).
• Variable Speed Operation: ECMs adjust their speed based on real-time demand (e.g., airflow, pressure), reducing energy waste.
• High Efficiency: ECMs can achieve efficiency levels above 90%, significantly outperforming standard induction motors (typically 60-80%).
(1) Energy Efficiency & Cost Savings
• ECMs consume 30-50% less energy than fixed-speed motors, especially in partial-load conditions.
• Ideal for continuous-duty applications like HVAC blowers, refrigeration, and pumps.
(2) Precise Speed & Torque Control
• Integrated sensors and control algorithms allow real-time adjustments for optimal performance.
• Maintains consistent airflow/pressure, improving system reliability.
(3) Quiet & Smooth Operation
• No brushes reduce mechanical noise and vibration.
• Soft-start capability minimizes electrical and mechanical stress.
(4) Longer Lifespan & Reduced Maintenance
• Brushless design eliminates wear-prone components, extending service life (often 100,000+ hours).
• Fewer breakdowns and lower maintenance costs compared to brushed motors.

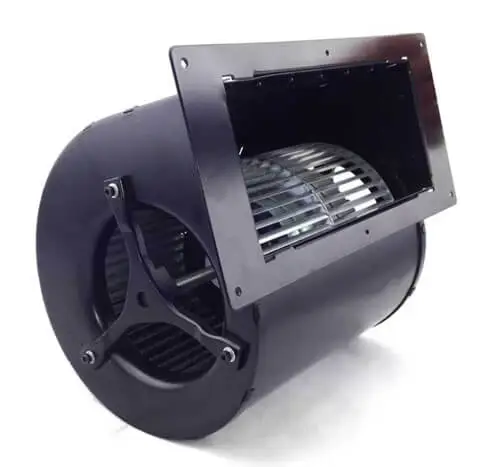

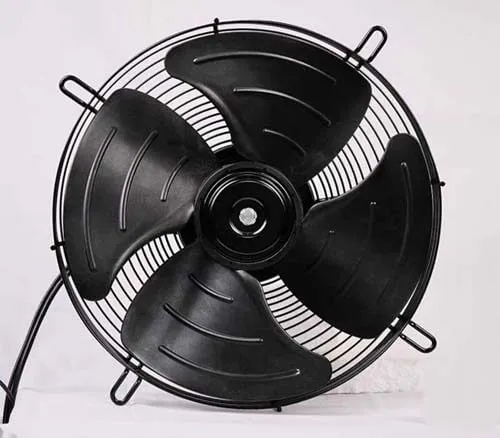

♦ HVAC Systems: Blowers, air handlers, condensers, and heat pumps.
♦ Home Appliances: Energy-efficient refrigerators, washing machines, and dishwashers.
♦ Industrial Equipment: Pumps, compressors, and conveyor systems requiring variable speeds.
♦ Automotive & Electric Vehicles: Cooling fans, HVAC systems in EVs.
|
Feature |
ECM Motor |
AC Induction Motor |
|
Efficiency |
>90% (even at partial load) |
60-80% (less efficient at low loads) |
|
Speed Control |
Electronically adjustable |
Fixed speed or mechanical control |
|
Noise Level |
Low (brushless operation) |
Higher (mechanical commutation) |
|
Program Logic Control (PLC |
BASIC FUNCTIONALITY |
NOT INCLUDED |
|
Commissioning of Drive (VFD Programming Labor) |
INCLUDED |
NOT INCLUDED (REQUIRED) |
|
Lifespan |
100,000+ hours |
30,000-50,000 hours |
|
Initial Cost |
Higher (offset by energy savings) |
Lower upfront cost |
► Smart & IoT Integration in centrifugal blowers: Remote monitoring, predictive maintenance, and AI-driven optimization.
► Expanded Use in EVs & Renewables: More applications in electric vehicles and solar-powered systems.
► Cost Reduction: Mass production and advancements in power electronics will make ECMs more affordable.
ECM motors are revolutionizing industries with their energy efficiency, reliability, and intelligent control. While their initial cost is higher than traditional motors, their long-term savings in energy and maintenance make them a smart investment for sustainable operations.
For technical specifications or product selection, consult ECM motor manufacturers or HVAC specialists.
