Electronically Commutated Motors (ECMs) are increasingly being adopted in compressor systems due to their high efficiency, precise speed control, and reliability. This design overview focuses on key considerations for implementing ECM technology in compressors for HVAC, refrigeration, and industrial applications.
• High torque density for startup and variable load conditions
• Wide speed range operation (typically 1,000-5,000 RPM)
• Thermal management for continuous duty operation
• Hermetic sealing for refrigerant compatibility (in sealed compressors)
• Low vibration and noise characteristics
• Preferred for most compressor motors applications
• Advantages:
► High efficiency (92-96% typical)
► Excellent torque-to-current ratio
► Smooth torque production
• Sometimes used for cost-sensitive applications
• Simpler control algorithm than PMSM
• Slightly lower efficiency than PMSM

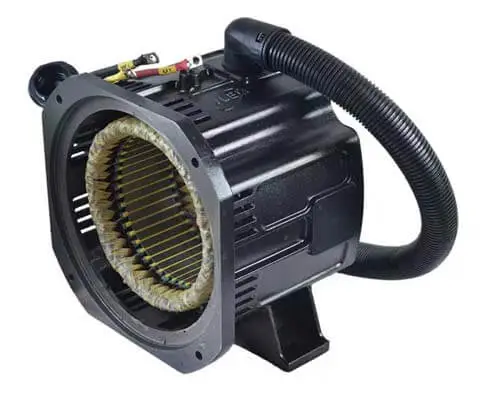

• Lamination Material: Non-oriented silicon steel (0.35-0.5mm thickness)
• Winding Configuration:
► Distributed windings for smooth operation
► Concentrated windings for compact designs
• Slot/Pole Combinations:
► Common configurations: 12slot/10pole or 9slot/6pole
► Optimized to minimize cogging torque
• Permanent Magnet Arrangement:
► Surface-mounted magnets (easier manufacturing)
► Interior permanent magnet (IPM) for higher torque density
• Magnet Material:
► High-grade NdFeB magnets for best performance
► Ferrite magnets for cost-sensitive applications
• Power Electronics:
► 3-phase inverter with IGBTs or MOSFETs
► Current ratings matched to compressor requirements
• Control Features:
► Field-oriented control (FOC) algorithm
► Sensorless position estimation (or hall sensors)
► Overcurrent and overtemperature protection
• Air-cooled: For open-type compressors
• Refrigerant-cooled: For hermetic compressors
• Liquid-cooled: For high-power industrial units
• Embedded thermistors in windings
• Rotor temperature estimation algorithms
• Thermal derating protection
• Specialized bearing designs for:
► Axial loads (scroll compressors)
► Radial loads (reciprocating compressors)
• Lubrication compatibility with refrigerant/oil mixtures
• Rotor dynamic balancing
• Flexible mounting systems
• Anti-resonance control algorithms
• Low-loss magnetic materials
• Optimized PWM switching frequency
• Adaptive flux weakening at high speeds
• Skewed rotor or stator designs
• Variable frequency PWM patterns
• Vibration isolation mounts

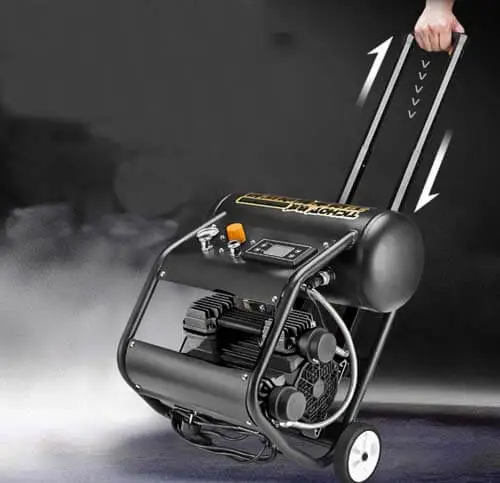

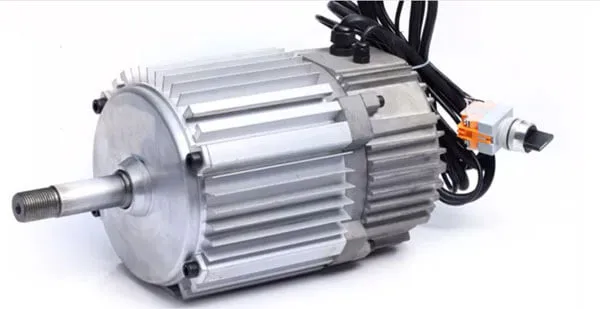

Customer want to develop one new portable and smart compressor. They request to use the PMSM rotor and stator design.
Must be strictly matched with process requirements to ensure stability and energy efficiency which fit the exhaust volume & pressure.
ECM motor desgined value data as following:
|
Parameter |
Target Value |
|
Power Rating |
<1.8 kW (depending on load) |
|
Speed Range |
<1000 RPM (adjustable) |
|
Rate Torque |
21Nm |
|
Rate Current |
≤ 5A |
|
Stator Temperature Rise |
<50K |
|
Dynamic Balance |
<0.1g/cm |
|
Silicon Steel Sheets |
8 pole with 48 slots |
|
Efficiency |
93.4% |
|
Thermal Protector |
Automatically reset by 145±5℃ |
• Focus on seasonal efficiency (SEER)
• Wide operating speed range (20-100%)
• Low-noise operation for residential use
• High starting torque for pump-down cycles
• Oil return management at low speeds
• Condenser fan synchronization

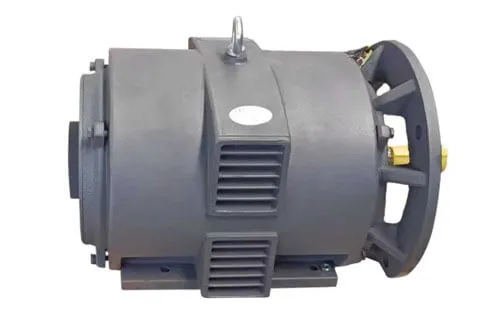

• High power density (50kW+)
• Explosion-proof designs when needed
• Network communication interfaces
• Sealing Systems:
► Hermetic terminal designs
► Moisture-resistant materials
• Life Testing:
► Accelerated thermal cycling
► Vibration endurance testing
► Long-term lubricant compatibility
• Integrated motor-compressor units with shared housings
• Wide bandgap semiconductors (SiC/GaN) for higher efficiency
• AI-optimized control algorithms for predictive maintenance
• Magnetic bearing integration for oil-free operation
(1). Electromagnetic FEA analysis (flux distribution, torque ripple)
(2). Thermal modeling (steady-state and transient)
(3). Prototype testing:
► Performance mapping (efficiency vs. speed/torque)
► Acoustic noise measurements
► Accelerated life testing
ECM motor design for compressors requires careful balancing of electromagnetic, thermal, and mechanical considerations. The optimal design varies significantly based on compressor type (scroll, reciprocating, screw) and application (HVAC, refrigeration, industrial). Modern ECM compressors can achieve 30-50% energy savings compared to conventional solutions while offering superior controllability and reliability.
For specific design assistance, motor manufacturers typically collaborate closely with compressor OEMs to develop customized solutions matching exact application requirements.
