The glass manufacturing industry presents unique challenges for motor selection, requiring precise motion control, exceptional reliability, and specialized environmental protections. This technical guide examines the critical factors in selecting motors for glass automation systems, offering actionable recommendations based on industry best practices and advanced engineering principles.

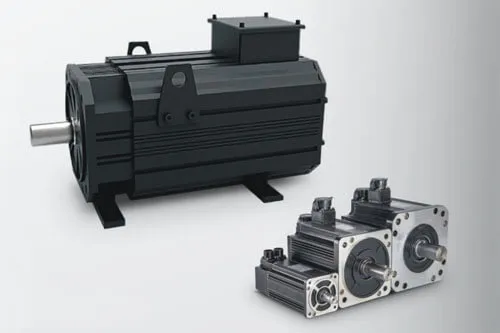

Cutting process: Requires high-dynamic-response servo motors (e.g., 200W-5kW, ±0.1mm repeatability)

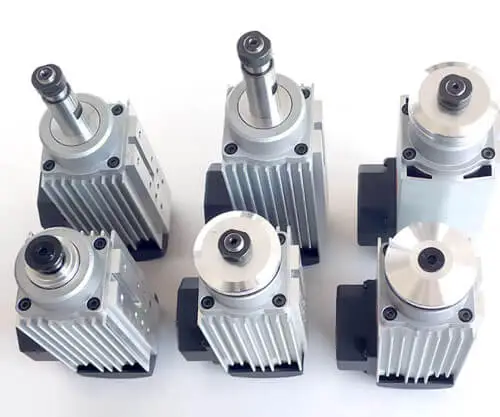

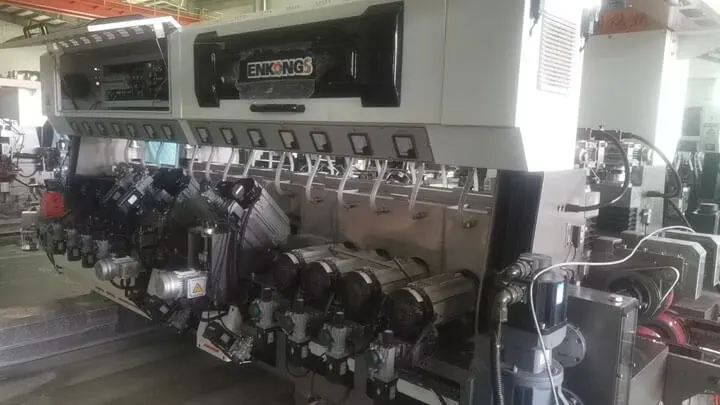

Edge grinding/polishing: Constant-torque variable frequency motors (3.7-22kW, 500-3000rpm speed range with pmsm motor design)
Material handling robots: Medium-inertia servos (rated torque 5-50Nm, 200% overload capacity)
Inertia ratio control: Recommended load/rotor inertia ratio <30:1 for glass conveyor systems
Start-stop frequency: For frequent cycling applications (e.g., glass cutting machines), select servos with 300% short-term overload capability
Temperature: Motors near annealing furnaces require >80°C thermal tolerance (e.g., Class H insulation)

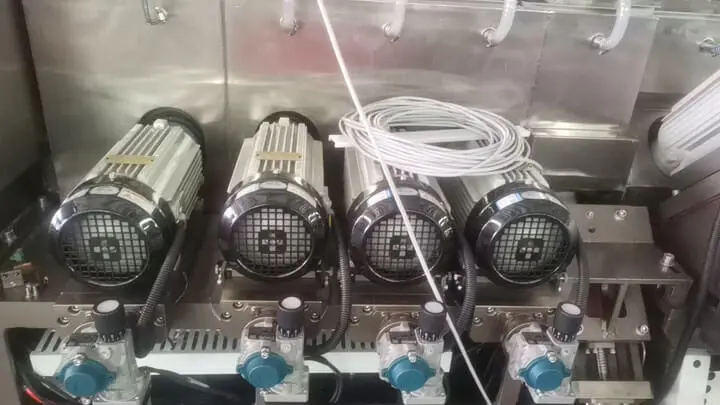

Dust protection: Grinding stations demand IP65-rated motors
Corrosion resistance: Chemical strengthening lines need stainless steel housing motors
|
Process Stage |
Recommended Motor Type |
Typical Specifications |
Reference Brands |
|
Raw glass cutting |
400V/3kW/3000rpm/23-bit encoder |
Yaskawa Σ-7 Series |
|
|
Glass handling |
Explosion-proof 3-phase IM |
380V/5.5kW/IP65/Ex d IIC T4 |
Siemens 1LE1 Series |
|
Tempering furnace |
High-temp VFD Motor |
400V/15kW/Class F insulation/80°C ambient |
ABB M3BP Series |
|
Precision engraving |
Linear Motor |
600N thrust/±1μm positioning accuracy |
Kollmorgen ILM Series |
Dual-motor synchronous control (e.g., 2×7.5kW servos with cross-coupling control)
Absolute encoders (18-bit multi-turn) for position retention
Motor housings with heat dissipation fins (15-20°C surface temp reduction)
Ceramic bearings (withstands up to 200°C)
Full closed-loop control with optical scales (0.1μm resolution)
Low-cogging motors (<2% torque ripple)
VFD configuration:
Vector control VFDs (e.g., Yaskawa GA700) for cutting machines
IE5 ultra-premium efficiency mode activation at <40% load
Regenerative energy handling:
Braking units (e.g., Mitsubishi FR-BU2) for frequent braking
Common DC bus solution for multi-motor systems
Vibration control:
Inertial platforms isolating 6-100Hz vibrations
G2.5 grade motor dynamic balancing
Predictive maintenance:
Built-in temperature/vibration sensors (IoT-enabled)
Motor current harmonic signature database
Automotive glass production line handling system:
Motor: Siemens 1FT7 servo (15kW/3000rpm)
Gearbox: Planetary reducer (10:1 ratio, <3arcmin backlash)
Control system: S7-1500 PLC + Profinet network
Protection: IP67 rating + vibration monitoring module
Load calculation:
Inertia matching verification (J_load/J_motor<30)
Acceleration torque validation (T_acc>T_load+T_friction)
Thermal analysis:
Motor-CAD thermal simulation
Insulation material temperature margin >15K verification
Field testing:
72-hour continuous load operation test
2000-cycle start-stop endurance test
Selecting electric motors for glass automation requires a systems engineering approach that considers:
(1). Process physics (thermal, mechanical, optical)
(2). Control performance (accuracy, dynamics, synchronization)
(3). Environmental resilience (temperature, contamination)
(4). Lifecycle economics (efficiency, maintenance, uptime)
Emerging technologies like self-cooling motor designs and AI-based predictive maintenance are setting new benchmarks in glass manufacturing automation. For mission-critical applications, we recommend conducting digital twin simulations incorporating actual glass handling dynamics before final motor selection. For specialty glass production (e.g., ultra-thin electronic glass), consider nanometer-level motion control requirements and adopt voice coil motor + laser interferometer positioning solutions.
