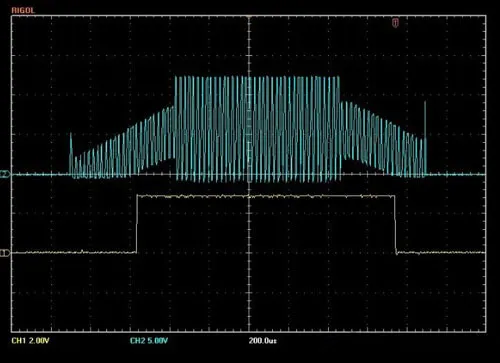

Electric motors, as indispensable power sources in modern industry and daily life, directly impact the efficiency, precision, and reliability of numerous applications. When discussing motor performance, people often focus on explicit metrics such as power, speed, and torque, while overlooking a crucial yet hidden electromagnetic phenomenon inside the motor—back electromotive force (back EMF).

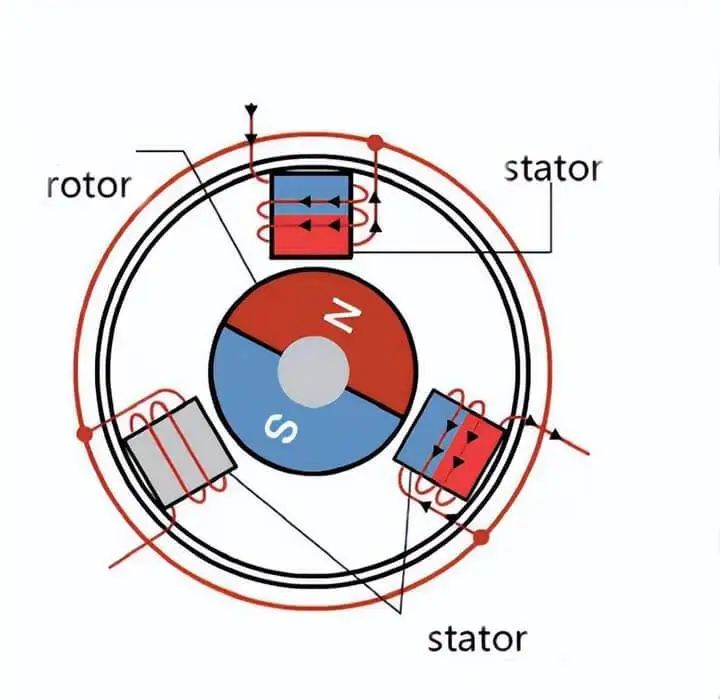

To understand back EMF, we must first revisit the fundamental principle of electromagnetic induction. When a conductor moves in a magnetic field, it generates an electromotive force (EMF), which is the basis of motor operation. However, when a motor is running, its windings (conductors) rotating in the magnetic field also induce an EMF. This EMF opposes the direction of the externally applied voltage, hence the name back EMF. In essence, back EMF is a "counteracting force" generated by the motor's own motion, offsetting part of the applied voltage and thereby influencing the motor's current and speed.
More precisely, what is being "opposed" is the voltage supplied by the power source. Back EMF prevents the current from increasing indefinitely. Without back EMF, the motor windings' low resistance would allow an infinitely large current to flow under the applied voltage, leading to motor burnout.
The magnitude of back EMF is closely related to the following factors:
• Magnetic Field Strength (B): A stronger magnetic field increases the rate of magnetic flux cutting, leading to higher back EMF.
• Conductor Length (L): Longer windings mean more conductors cutting magnetic flux, increasing back EMF.
• Rotational Speed (ω): Higher speeds result in faster flux cutting, raising back EMF.
• Motor Structure (K): Winding configuration, pole count, and other structural factors also influence back EMF.
This relationship can be summarized by the formula:
E=K×B×L×ω
where E is back EMF and K is a motor-specific constant.
This formula reveals the proportional relationship between back EMF and motor speed. Under a constant magnetic field, higher speeds produce greater back EMF, while lower speeds reduce it.
Back EMF is not merely a "counteracting force"—it plays a vital role in motor control and performance optimization, profoundly influencing the following aspects:
Precision and Stability in Speed Control
• Foundation of Precise Control: Since back EMF is proportional to speed, monitoring its variations allows real-time speed estimation. This enables closed-loop control, ensuring precise speed regulation and stability even under changing loads. Without back EMF feedback, speed control accuracy would be significantly compromised.
• Key to Sensorless Control: Traditional motor control relies on encoders or sensors for speed and position detection. However, sensors increase cost, complexity, and reduce reliability. Sensorless control using back EMF eliminates the need for sensors, simplifying the system while improving reliability and reducing costs. Advanced algorithms can decode back EMF to obtain accurate speed and position data, enabling high-performance motor control.
Torque Optimization and Efficiency Improvement

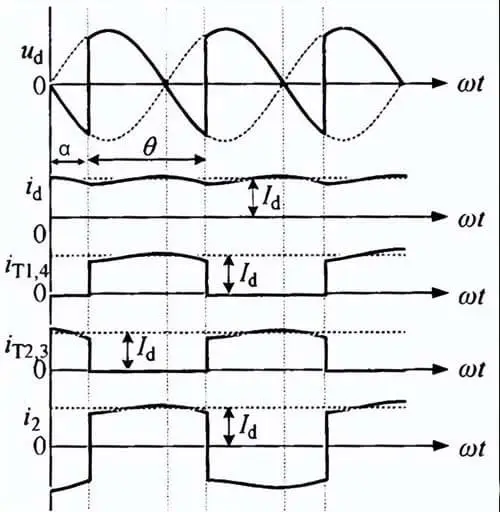

• Aiding Current Control: Motor torque is proportional to current. Back EMF limits excessive current, facilitating precise current regulation and thus torque control. Adjusting the applied voltage alters the balance between back EMF and supply voltage, enabling fine-tuned torque output.
• Basis for Regenerative Braking: During braking or deceleration, the motor acts as a generator, converting kinetic energy into electrical energy. Here, back EMF exceeds the applied voltage, reversing current flow and allowing energy to be fed back into the power source or storage system. This regenerative braking mechanism is widely used in electric and hybrid vehicles, significantly improving energy efficiency.
Fault Diagnosis and Protection
• Indicator of Motor Health: Abnormal back EMF variations often signal motor faults. For example, winding short circuits reduce back EMF, while open circuits cause it to disappear. Monitoring back EMF helps detect potential failures early, enabling preventive measures.
• Overvoltage Protection: Sudden load drops can cause rapid speed surges, leading to excessive back EMF. Automatic power cutoff or other protective measures can prevent motor damage from overvoltage.
Performance Optimization for Specific Motor Types

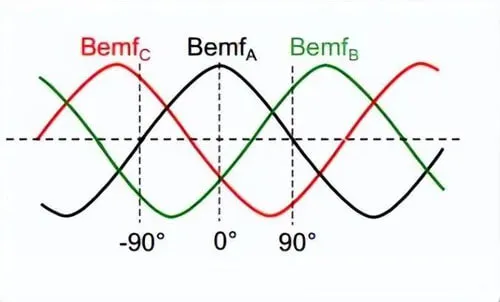

• Permanent Magnet Synchronous Motors (PMSM): The back EMF waveform in PMSM motors directly affects smooth operation and efficiency. Optimizing magnet shape and winding design improves the waveform, reduces harmonics, and enhances performance.

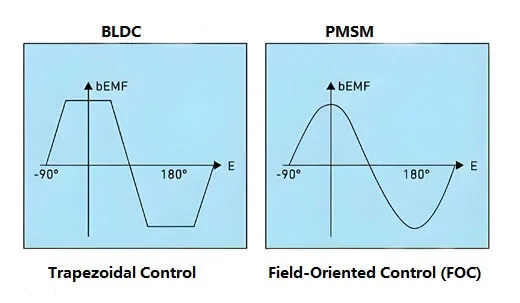

• Brushless DC Motors (BLDC): BLDC motors typically use trapezoidal or sinusoidal back EMF designs. Different waveforms correspond to different control strategies: trapezoidal back EMF suits simple Hall sensor control, while sinusoidal back EMF enables high-performance vector control.
Despite its critical role, back EMF applications face several challenges:
• Difficulty in High-Precision Estimation: Sensorless control requires complex algorithms and high-accuracy measurements, which are susceptible to noise and errors.
• Diverse Back EMF Characteristics Across Motor Types: Different motors exhibit unique back EMF behaviors, necessitating tailored control strategies.
• Control Under Extreme Conditions: High temperature, pressure, or speed conditions complicate back EMF management.
Looking ahead, advancements in power electronics, control theory, and AI will unlock new potentials:
• Advanced Sensorless Algorithms: AI-driven techniques like deep learning will enhance back EMF estimation, improving control precision and robustness.
• Smarter Motor Control Systems: Integrating sensors and back EMF feedback will enable adaptive control strategies for optimal performance under varying conditions.
• More Efficient Regenerative Systems: Next-gen energy recovery technologies will maximize electricity regeneration, boosting energy utilization and reducing waste.
Back EMF is far more than a mere byproduct of motor operation—it is a key enabler of motor performance. It profoundly influences speed control, torque output, fault diagnosis, and energy regeneration, reshaping the boundaries of motor capabilities. By deepening our understanding and leveraging back EMF effectively, we can design and manufacture motors with higher performance, efficiency, and reliability, powering the future of modern industry and society.
