Electric fans are essential appliances used in homes, offices, and industries for cooling and ventilation. The key component that drives the fan's operation is the electric motor, which converts electrical energy into mechanical energy to rotate the blades. This article explores the working principle, types, common issues, and maintenance tips for electric fan motors.
Most electric fan motors are single-phase induction motors, which operate on the principle of electromagnetic induction. Here’s how they work:
1. Power Supply – When the fan is switched on, alternating current (AC) flows into the motor’s stator (stationary winding).
2. Magnetic Field Generation – The stator produces a rotating magnetic field due to the AC supply.
3. Rotor Movement – The rotor (rotating part) is influenced by the stator’s magnetic field, inducing a current in the rotor windings (or aluminum bars in squirrel cage rotors). This creates a secondary magnetic field, causing the rotor to spin.
4. Blade Rotation – The motor shaft is connected to the fan blades, which rotate to produce airflow.
Some modern fans use brushless DC (BLDC) motors, which are more energy-efficient and quieter than traditional induction motors.

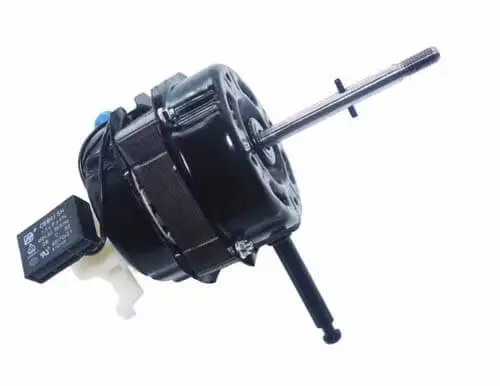

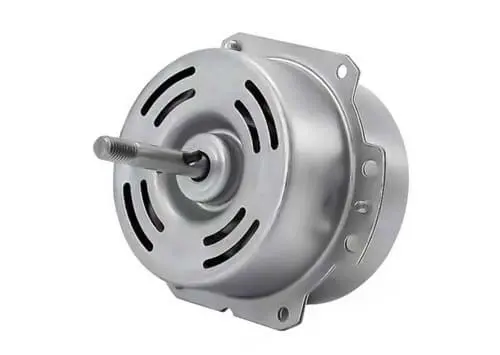

1. Single-Phase Induction Motor
Common in household fans.
Simple design, cost-effective, and reliable.
Requires a capacitor to start (capacitor-start induction motor).

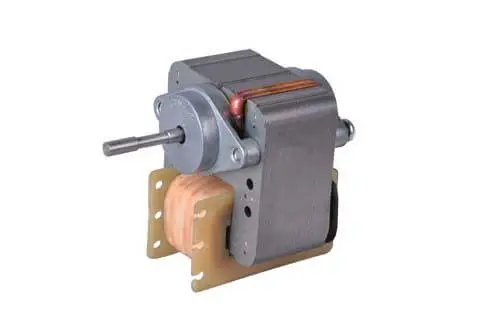

2. Shaded Pole Motor
Used in small, low-power fans.
Simple construction with a copper shading ring to create a rotating magnetic field.
Less efficient but highly durable.

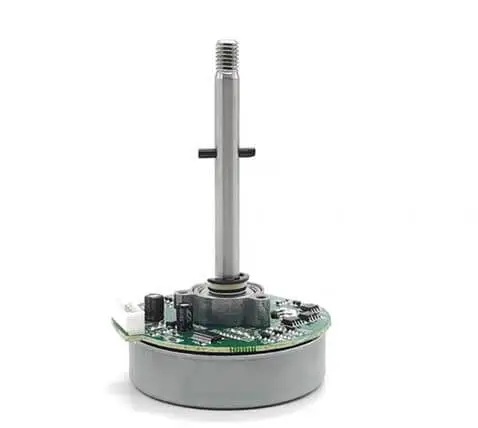

3. Brushless DC (BLDC) Motor
Found in modern, energy-efficient fans.
No brushes, reducing wear and tear.
Variable speed control with electronic circuits.
Can run on both AC and DC.

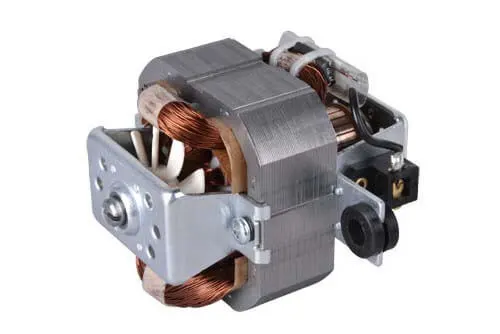

Used in high-speed portable fans.
Contains brushes, which may wear out over time.
• Motor Not Starting – Could be due to a faulty capacitor, damaged winding, or power supply issue.
• Overheating – Caused by excessive load, poor ventilation, or worn-out bearings.
• Unusual Noises – Indicates bearing wear, loose parts, or misalignment.
• Slow Speed – May result from low voltage, capacitor failure, or motor winding issues.
• Vibration – Imbalanced blades or a bent motor shaft can cause excessive shaking.
► Regular Cleaning – Dust accumulation can block ventilation and cause overheating.
► Lubrication – Oil the bearings periodically to reduce friction.
► Check Capacitor – A faulty capacitor can prevent the motor from starting.
► Inspect Wiring – Loose or damaged wires can disrupt power supply.
► Balanced Blades – Ensure fan blades are properly aligned to avoid vibration.
The electric fan motor is a crucial component that ensures smooth and efficient operation. Understanding its working principle, types, and maintenance can help extend its lifespan and improve performance. Whether using a traditional induction motor or a modern BLDC motor, proper care will keep your fan running efficiently for years.
By following basic maintenance practices, users can avoid common motor failures and enjoy uninterrupted cooling comfort. Would you like more details on any specific type of fan motor? Contact with us now.
