Vending Machine Motor Design: Engineering Considerations

Introduction

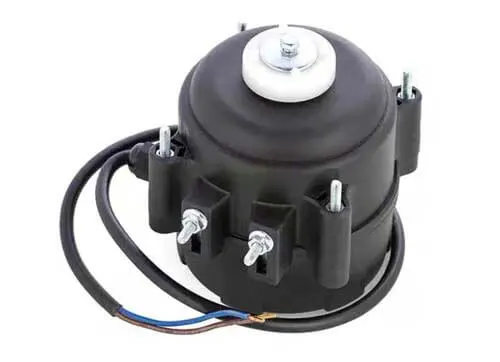

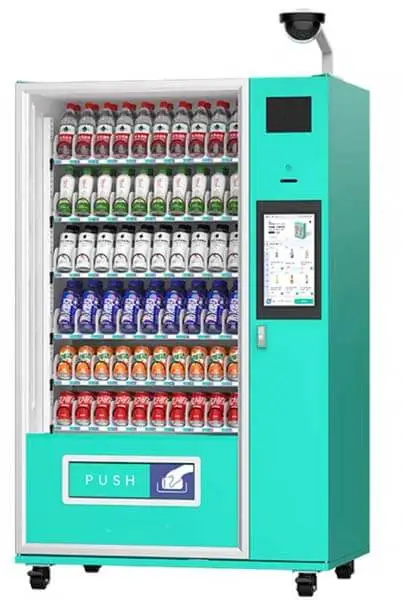

Vending machines rely on electric motors to dispense products, accept payments, and perform other mechanical operations. The motor design plays a crucial role in ensuring reliability, efficiency, and smooth operation.



1. Core Motor Selection Criteria





Parameter	Requirement	Recommended Motor Type
Torque	0.5–5 N·m (product-dependent)	DC Gear Motor / Stepper
Speed	10–100 RPM	Geared DC Motor
Position Accuracy	±0.1° (for spiral dispensing)	Stepper/Servo
Duty Cycle	Intermittent (5–20 sec/operation)	All (with overload protection)
Noise	<45 dB(A)	BLDC / Stepper



2. Critical Subsystems & Motor Integration

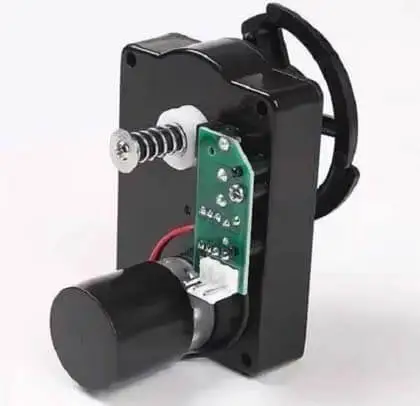

A. Spiral Dispensing Mechanism



Motor: Bipolar stepper (1.8°/step)

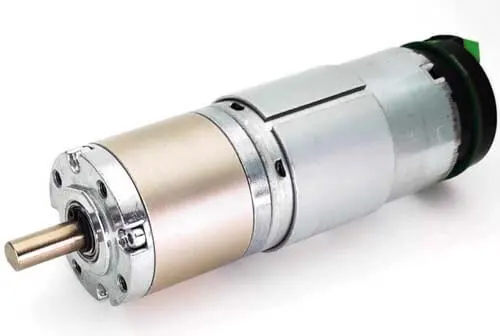

Gearbox: 20:1 planetary gearhead

Control: Microstepping driver (256 microsteps/step)

Sensing: Optical end-stop for homing



B. Conveyor/Belt Systems

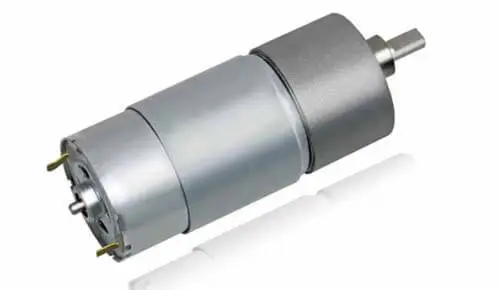

Motor: Brushed DC gear motor (12V, 50:1 ratio)

Feedback: Quadrature encoder (20 PPR)

Drive Circuit: H-bridge + PWM control



C. Elevator-Based Dispensing

Uses a servo or stepper motor to lift and drop products.

Example: High-capacity vending machines.



D. Robotic Arm Pick-and-Place

Uses servo motors for precise product selection.

Example: Advanced vending machines with multiple product types.


3. Power Management Design



Voltage: 12V/24V DC (battery-backed)



Current Peaks:

  • Steppers: 1.5× holding current during acceleration

  • DC Motors: 3× stall current protection (PTC fuses)



Energy-Saving Features:

  • Stepper: Automatic current reduction in hold state

  • BLDC: Sensorless vector control for idle efficiency



4. Mechanical Design Best Practices



Gear Material:

  • Plastic (POM): Low noise, cost-effective

  • Metal (Brass/Steel): For high-torque (>3 N·m) applications



Bearing Selection:

  • Shielded ball bearings (IP54) for dusty environments



Shaft Coupling:

  • Flexible spider couplings to absorb misalignment



Thermal Management:

  • Motor casing: Aluminum fins for convection cooling



5. Control System Architecture

[MCU (ARM Cortex-M4)]
   │
   ├── CAN Bus → Motor Drivers (Stepper/BLDC)
   │       ├── Current Sensing (ACS712)
   │       └── Temperature Monitoring (NTC)
   │
   └── GPIO → DC Motor Drivers (DRV8876)
           └── Encoder Feedback (LS7366R)

6. Failure Mode Analysis & Mitigation



Failure Mode	Design Solution
Stall Detection	Back-EMF monitoring in BLDC
Gear Wear	Glass-filled nylon gears + lubrication reservoir
Voltage Sag	Supercapacitor buffer (5–10 sec)
Contaminant Ingress	IP65-sealed motor housing



7. Compliance & Standards

Safety: UL 1004-1 (Motor Standard)

EMC: FCC Part 15/EN 55032 (Noise immunity)

Energy: DOE Level VI (for AC-powered units)



Prototyping Tips

1. Torque Testing: Use torque cell to measure startup torque under max product load.

2. Lifecycle Validation: Accelerated testing (50k cycles) with environmental chamber (-10°C to 50°C).

3. PCB Layout:

  • Separate motor power traces from control signals

  • Star grounding for driver ICs



Conclusion



Choosing the right motor for a vending machine depends on factors like torque, efficiency, control precision, and durability. Stepper motors are ideal for precise dispensing, DC gear motors for general movement, and servo motors for advanced automation. Proper motor selection and maintenance ensure smooth operation and longer machine lifespan.
