Electric Motor Design for Lawn Mower Machines





Designing an electric motor for a lawn mower requires balancing power, efficiency, durability, and environmental resistance. Below is a detailed breakdown of the design process, covering motor types, key parameters, thermal management, and integration.



1. Key Requirements for Mower Electric Motors



Requirement	Why It Matters
High Starting Torque	Needed to cut thick grass without stalling.
Efficiency	Maximizes battery life (for cordless mowers).
Weather Resistance	Must withstand rain, dust, and temperature extremes.
Overload Protection	Prevents burnout when hitting obstacles.
Low Vibration & Noise	Improves user comfort.

2. Motor Type Selection

A. Brushed DC Motor



Pros: Simple, low cost, easy speed control.

Cons: Short lifespan (brush wear), sparks (not ideal for wet conditions).

Best for: Budget corded or small battery mowers.

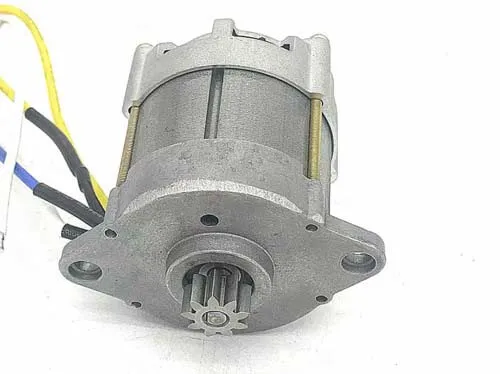

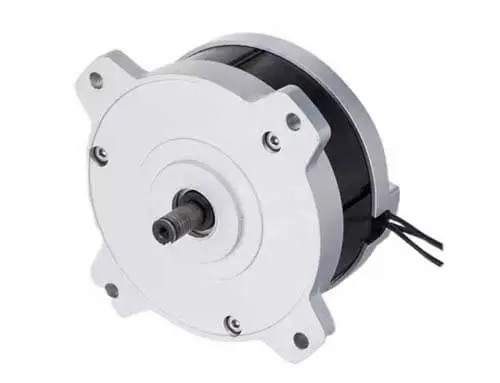

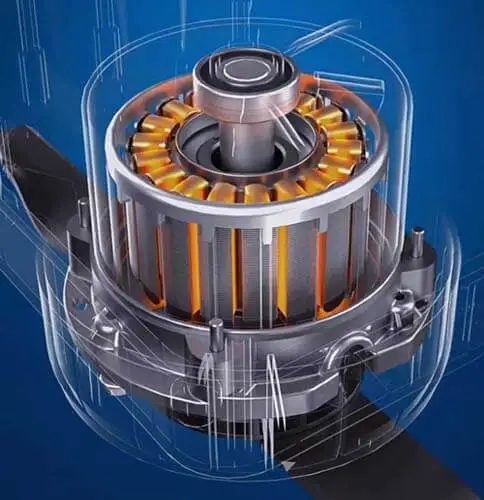

B. Brushless DC (BLDC) Motor (Recommended)



Pros:

High efficiency (85–95%).

Long lifespan (no brushes).

Better heat dissipation.

Precise speed control (PWM/FOC).

Cons: Requires electronic controller (ESC).

Best for: Premium cordless & robotic mowers.



C. AC Induction Motor



Pros: Robust, no brushes, good for heavy-duty use.

Cons: Less efficient, heavier, needs AC power.

Best for: Corded electric mowers.



3. Key Motor Design Parameters



Parameter	Residential Mower	Commercial Mower
Power (W)	500W–1500W	1500W–3000W
Voltage (V)	24V–56V (BLDC)	48V–80V (BLDC)
Speed (RPM)	2,500–4,000 (no-load)	3,000–5,000 (no-load)
Torque (Nm)	1.5–5 Nm	5–15 Nm
Efficiency (%)	80%+ (Brushed), 90%+ (BLDC)	90%+ (BLDC)

4. Motor Cooling & Protection

A. Cooling Methods

Natural Cooling (Passive fins) → Low-power mowers (<1000W).

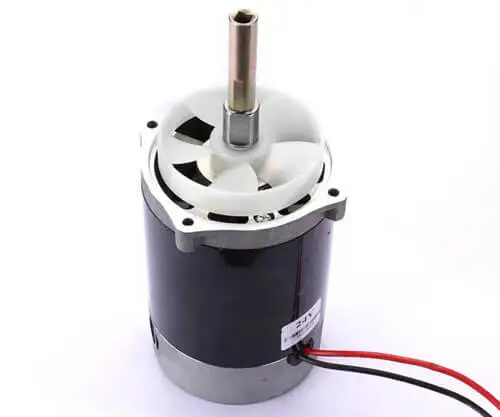

Forced Air Cooling (Fan) → Medium-power mowers (1000W–2000W).

Liquid Cooling → High-performance commercial mowers (rare).



B. Environmental Protection

IP Rating:

   ♦ IP54 (Splash-proof) → Residential mowers.

   ♦ IP65/IP67 (Dust/water-resistant) → Commercial/robotic mowers.

Corrosion Protection:

   ♦ Stainless steel shafts.

   ♦ Powder-coated/painted motor housing.



5. Motor Control & Safety

A. Speed Control

PWM (Pulse Width Modulation) → Adjusts motor speed efficiently.

FOC (Field-Oriented Control) → Optimizes torque & efficiency (BLDC).



B. Safety Features

Overcurrent Protection → Prevents motor burnout.

Thermal Cutoff → Shuts down if overheating.

Soft Start → Reduces mechanical stress.



6. Integration with Mower Systems



A. Direct Drive vs. Geared Drive





Type	Pros	Cons	Best For
Direct Drive	Simple, no gears, quiet	Lower torque, needs high-RPM motor	Light-duty mowers
Geared Drive	Higher torque, better efficiency	More complex, needs maintenance	Heavy-duty mowers

B. Blade RPM Considerations



   ♦ Residential Mowers: 2,500–3,500 RPM.

   ♦ Commercial Mowers: 3,000–4,000 RPM.



7. Example Motor Specifications



Mower Type	Motor Type	Power	Voltage	Control Method
Cordless (Home)	BLDC	800W	40V	PWM + FOC
Robotic Mower	BLDC	300W	24V	Smart ESC
Corded (Heavy Duty)	AC Induction	2000W	230V AC	On/Off Switch

8. Challenges & Solutions



Challenge	Solution
Overheating	Improve cooling (fans/heat sinks).
Moisture Ingress	Use sealed bearings + conformal coating.
High Vibration	Dynamic balancing + rubber mounts.
Battery Drain (Cordless)	Optimize efficiency (BLDC + FOC).

9. Future Trends

   • Smart Motors (IoT-enabled diagnostics, app control).

   • Higher Voltage Systems (80V+ for longer runtime).

   • Regenerative Braking (Recovers energy when decelerating).



Conclusion

For lawn mower electric motors, BLDC motors with PWM/FOC control are the best choice due to their efficiency, durability, and precise speed control. Key considerations include:

✔ High starting torque for tough grass.
✔ Weatherproofing (IP65+) for outdoor use.
✔ Overload & thermal protection for safety.

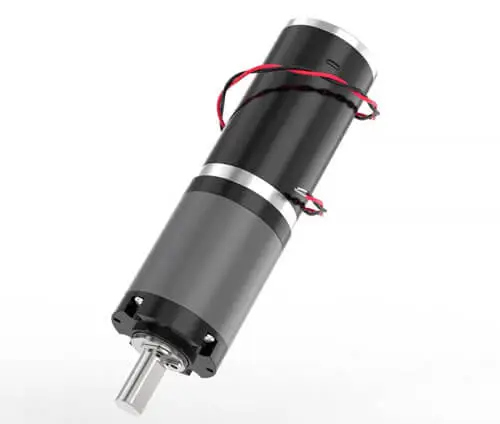

Need help selecting motor controllers or planetary gear motor for lawn mower? Let us know!
