How to Design Gear Motor for Food Processor





Designing a gear motor for a food processor requires balancing high torque, compact size, durability, and food safety compliance. Below is a step-by-step guide to designing an efficient and reliable gear motor system for food processors.



1. Key Requirements for Food Processor Gear Motors



Requirement	Why It Matters
High Starting Torque	Needed to crush ice, nuts, and tough ingredients.
Compact & Lightweight	Must fit inside the appliance housing.
Low Noise & Vibration	Improves user experience.
Food-Grade Materials	Prevents contamination (e.g., stainless steel, food-safe plastics).
Overload Protection	Prevents motor burnout if jammed.
Easy Maintenance	Should resist food particle ingress.

2. Motor Selection

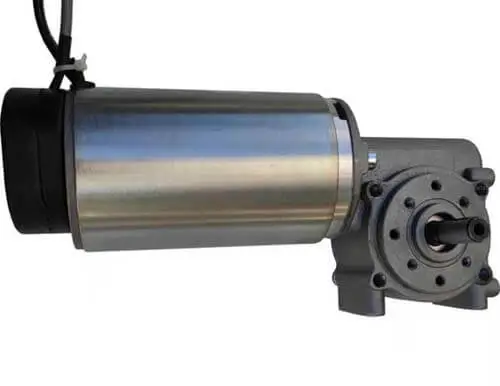

A. Motor Types





Type	Pros	Cons	Best For

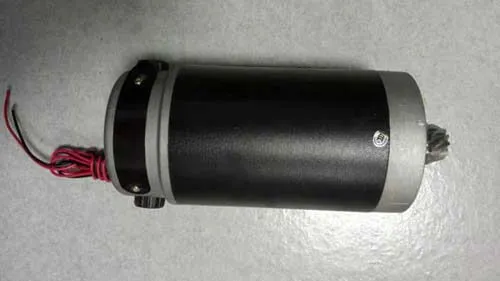

Brushed DC	Low cost, simple control	Shorter lifespan, sparks (not ideal for wet environments)	Budget food processors

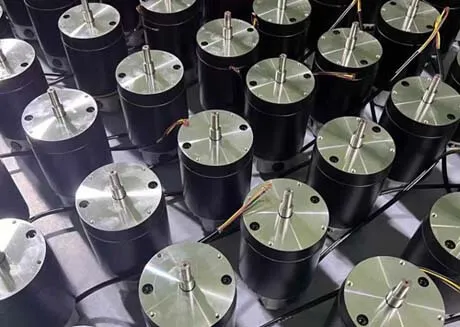

Brushless DC (BLDC)	High efficiency, longer life, quieter	More expensive, needs controller	Premium food processors

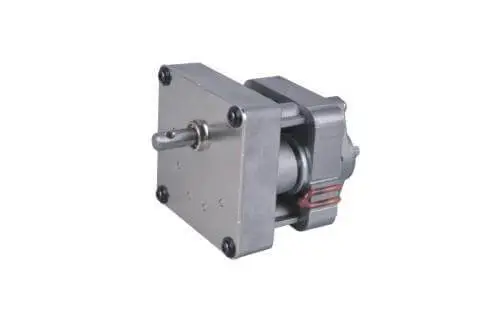

Universal AC Motor	High torque, simple	Noisy, less efficient	Heavy-duty blenders

B. Motor Specifications



Power: 100W–1500W (depends on food processor size).

Voltage: 110V/220V (AC) or 12V/24V (DC).

Speed: 5,000–30,000 RPM (unloaded, before gearing).

Torque: 0.5–5 Nm (after gear reduction).



3. Gearbox Design

A. Gear Types





Type	Advantages	Disadvantages
Planetary Gears	High torque, compact	More expensive
Spur Gears	Simple, cheap	Noisy, less durable
Worm Gears	Self-locking, quiet	Low efficiency

B. Gear Ratio Selection



Typical Ratio: 3:1 to 10:1 (reduces motor speed to 500–2000 RPM at blade).

Higher Ratio → More torque for crushing ice/nuts.

Lower Ratio → Faster blending for liquids.



C. Material Selection

Gears: Stainless steel, POM (acetal), or nylon (food-safe, corrosion-resistant).

Housing: ABS plastic or aluminum (lightweight, easy to clean).



4. Thermal & Mechanical Design

A. Cooling Methods

Natural Convection (Passive cooling for low-power motors).

Fan Cooling (For high-power processors).

Thermal Cutoff Switch (Prevents overheating).



B. Sealing & Protection

IP54 or Higher (Protects against food/liquid splashes).

Shaft Seals (Prevent grease leakage into food).



5. Control & Safety Features

A. Motor Control
PWM Speed Control (Variable speed settings).

Soft Start (Reduces mechanical stress).

Overcurrent Protection (Prevents burnout).



B. Safety Mechanisms
Auto-Shutoff (If jammed or overloaded).

Locking Mechanism (Prevents operation if lid is open).



6. Example Design Specifications





Parameter	Entry-Level	High-End
Motor Type	Brushed DC	BLDC
Power (W)	300W	800W
Gear Type	Spur Gears	Planetary
Gear Ratio	5:1	8:1
Output Speed (RPM)	2,000 RPM	1,500 RPM
Material	Nylon Gears	Stainless Steel Gears

7. Manufacturing & Testing

   ♦ Prototype Testing – Check torque, noise, and thermal performance.

   ♦ Food Safety Certification – Ensure compliance with FDA/EC1935 standards.

   ♦ Durability Testing – Run continuous load cycles to simulate real-world use.



8. Common Challenges & Solutions



Challenge	Solution
Gear Wear	Use hardened stainless steel or self-lubricating plastics.
Noise	Use helical/planetary gears + rubber dampers.
Overheating	Add cooling fins or thermal cutoff.
Food Contamination	Use food-grade lubricants (NSF H1 certified).



9. Future Trends

Smart BLDC Motors (IoT-enabled speed control via app).

3D-Printed Gears (Custom shapes, lightweight).

Eco-Friendly Materials (Biodegradable plastics).



Conclusion

A well-designed gear motor for a food processor should prioritize:

✔ High starting torque (for tough ingredients).
✔ Compact & quiet operation (user-friendly).
✔ Food-safe materials & sealing (compliance).



For best results, a BLDC motor with planetary gears offers superior performance, while spur gears work for budget models. Need help selecting motor drivers or gear suppliers? Let us know!
