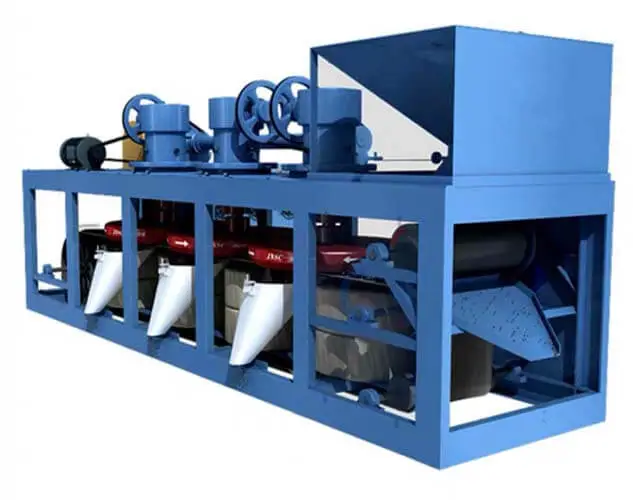

Iron ore dry magnetic separators are critical in mineral processing, but traditional drive systems using induction motors + gearboxes suffer from:
❌ High energy waste (continuous full-speed operation regardless of load)
❌ Mechanical wear (gearbox maintenance costs)
❌ Poor controllability (difficulty adjusting speed for ore variability)
Solution: Replacing induction motors with Permanent Magnet Synchronous Motors (PMSM) + servo drives achieves:
✅ 30-50% energy savings (load-proportional power consumption)
✅ Direct drive (eliminating gearbox losses)
✅ Precise speed regulation (optimized for ore grade fluctuations)
(1) PMSM Drive System Configuration
|
Component |
Specification |
Benefit |
|

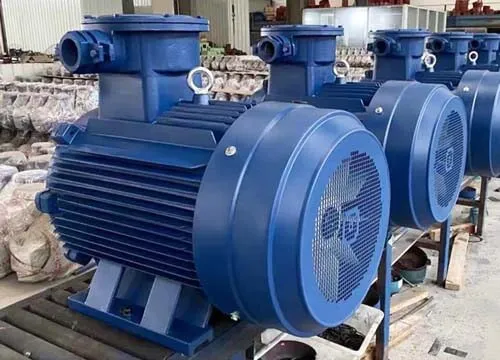

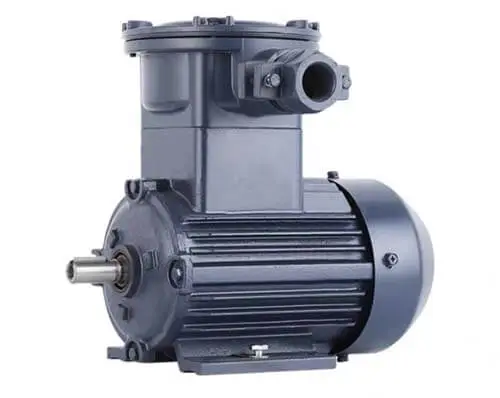

PMSM Motor |
30-200 kW, IE5 efficiency, 1500-3000 RPM |
High torque at low speeds, >95% efficiency |
|
Servo Inverter (VFD) |
Vector control, regenerative braking |
Dynamic response, energy recovery |
|
Direct Drive Coupling |
Eliminates gearbox |
Reduced maintenance, higher reliability |
(2) Key Energy-Saving Mechanisms
• Variable Speed Operation:
♦ Motor speed adjusts based on ore feed rate & magnetic field requirements, avoiding wasted energy.
• Zero-Load Shutdown:
♦ When no ore is detected, the system enters standby mode (0 RPM), cutting idle power loss.
• Regenerative Braking:
♦ Recovers kinetic energy during deceleration, feeding it back to the grid.
(3) Noise & Maintenance Reduction
• <75 dB operation (vs. 85+ dB with gear-driven systems).
• No gearbox lubrication needed, lowering upkeep costs.
|
Parameter |
Before (Induction Motor + Gearbox) |
After (PMSM Direct Drive) |
|
Energy Consumption |
110 kWh/h |
65 kWh/h (41% savings) |
|
Maintenance Cost |
$8,000/year (gearbox repairs) |
<$1,000/year |
|
Noise Level |
88 dB |
72 dB |
ROI: Payback period <2 years via energy + maintenance savings.
• AI-Based Ore Adaptation: Real-time motor speed tuning based on ore sensor feedback.
• Hybrid Solar-PMSM Systems: Further cut grid power dependency.
PMSM technology transforms iron ore dry separators into:
✔ Energy-efficient (30-50% lower power use)
✔ Low-maintenance (gearless design)
✔ Smart-ready (compatible with Industry 4.0 upgrades)
Recommended for mines targeting:
• Lower OPEX
• Sustainability compliance
• Long-term reliability
