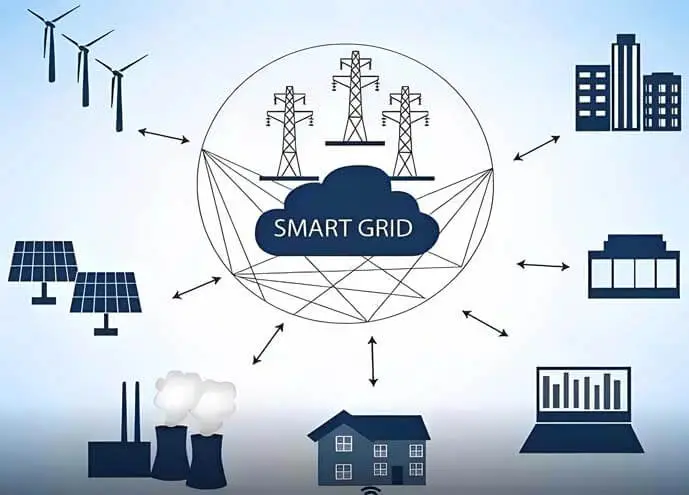

Permanent Magnet Synchronous Motors (PMSM) are playing an increasingly vital role in smart grid systems due to their high efficiency, superior controllability, and excellent dynamic response. As power grids evolve toward digitalization, automation, and renewable energy integration, PMSM technology offers critical advantages for:
✅ Energy efficiency optimization (up to 98% efficiency in variable-speed applications)
✅ Enhanced grid stability (precise reactive power compensation)
✅ Seamless renewable energy integration (smooth synchronization with wind/solar power)
✅ Smart load management (demand-side response capabilities)

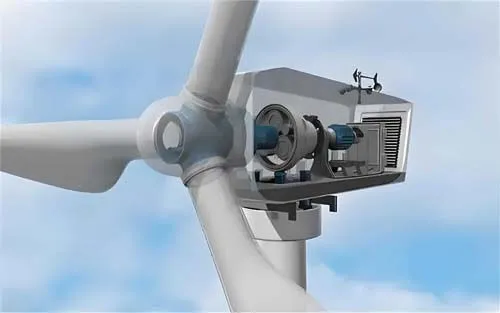

• Wind Turbine Generators:
♦ PMSM-based direct-drive wind turbines eliminate gearboxes, improving reliability & efficiency (5-10% higher than induction generators).
♦ Grid-friendly operation: Fast frequency regulation via PMSM's inertia emulation capability.
• Solar Pumping Storage:

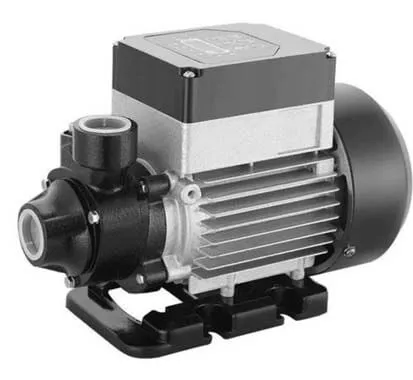

♦ PMSM-driven pumps adjust speed dynamically based on solar generation, reducing battery dependency.
• Static Synchronous Compensators (STATCOM):
♦ PMSM-based STATCOMs provide ultra-fast reactive power compensation (<10 ms response time).
♦ Mitigate voltage flicker in grids with high renewable penetration.
• Unified Power Flow Controllers (UPFC):
♦ PMSM-enabled UPFCs optimize power flow control, reducing transmission losses by 8-15%.
• Industrial Motor Systems:
♦ Replacing induction motors with PMSM in pumps/fans/compressors cuts 20-40% energy use.
♦ IoT-enabled predictive maintenance: Vibration/temperature sensors detect motor health in real time.
• Electric Vehicle (EV) Charging Stations:
♦ PMSM-based bidirectional chargers support vehicle-to-grid (V2G) power exchange, stabilizing local grids.
• Islanded Microgrid Stability:
♦ PMSM generators maintain frequency stability during renewable fluctuations.
• Black Start Capability:
♦ PMSMs can restart microgrids without external power sources.
|
Feature |
PMSM Benefit |
Smart Grid Impact |
|
High Efficiency |
3-10% higher than induction motors |
Reduces overall grid losses |
|
Precise Speed Control |
±0.1% speed accuracy with vector control |
Optimizes demand-side response |
|
Power Factor Correction |
Near-unity power factor (0.99+) |
Minimizes reactive power penalties |
|
Fast Dynamic Response |
Torque response <5 ms |
Enhances grid frequency regulation |
|
Regenerative Braking |
Energy recovery during deceleration |
Supports grid energy storage |
Location: North China Wind Farm
Challenge:
• 30% wind curtailment due to grid instability.
Solution:
• Installed PMSM-based STATCOM + direct-drive PMSG wind turbines.
Results:
• 42% reduction in wind curtailment
• Grid voltage stability improved by 35%
• 4.6% lower transmission losses
Digital Twin Integration:
• Real-time PMSM performance simulation for predictive grid management.
5G-Enabled Motor Control:
• Ultra-low-latency (<1ms) remote motor synchronization.
AI-Optimized Efficiency:
• Machine learning adjusts PMSM parameters based on grid demand patterns.
PMSM technology is a cornerstone of next-gen smart grids, enabling:
✔ Higher renewable energy penetration
✔ Active grid stabilization
✔ Industrial/commercial energy savings
Deployment Recommendations:
• Prioritize PMSM adoption in wind farms & FACTS devices.
• Implement IoT-enabled motor monitoring for grid-aware load management.
• Explore V2G integration with PMSM-based EV chargers.
