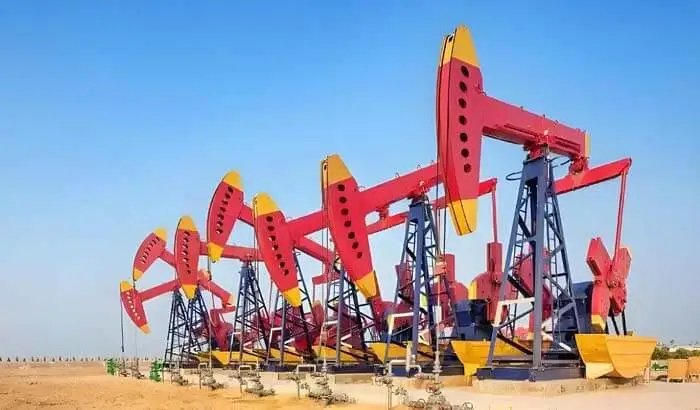

Application of Permanent Magnet Synchronous Motors in Oilfield Pumping Units

1. Introduction

Permanent Magnet Synchronous Motors (PMSMs) are revolutionizing oilfield pumping unit operations by replacing traditional induction motors, offering:

  • 40-60% energy savings through high efficiency (IE4/IE5 class motor)

  • Precise speed control for optimized pumping cycles

  • Reduced maintenance with brushless design

  • Improved system reliability in harsh oilfield environments

2. Technical Advantages for Pumping Units

(1) Energy Efficiency Optimization

  • Load-adaptive operation: Adjusts speed in real-time based on well conditions

  • Eliminates gearbox losses: Direct-drive configuration achieves >96% system efficiency

  • Regenerative braking: Recovers energy during downstroke (saves 15-20% power)

(2) Enhanced Production Control

  • Soft start/stop: Reduces mechanical stress (extends equipment life by 30-50%)

  • Variable speed operation:

      ♦ Low speeds for viscous crude

      ♦ High speeds for high-productivity wells

  • Precise stroke control: ±1% speed regulation accuracy

(3) Harsh Environment Adaptation

  • IP65 protection: Resists dust, moisture, and corrosive gases

  • High-temperature version: Operates reliably in -40°C to +65°C

  • Vibration-resistant design: Withstands oilfield conditions

3. System Implementation

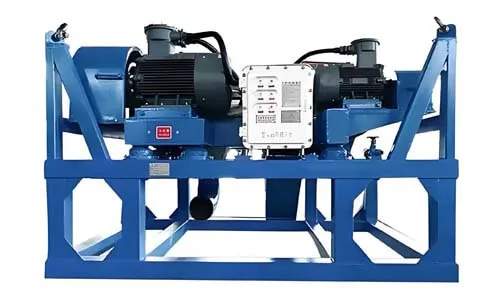

Typical Configuration

Key Performance Metrics

  • Power factor: 0.95-1.0 (vs 0.7-0.8 for induction motors)

  • Startup torque: 200-300% rated torque

  • Speed range: 30-150% rated speed

4. Field Application Results

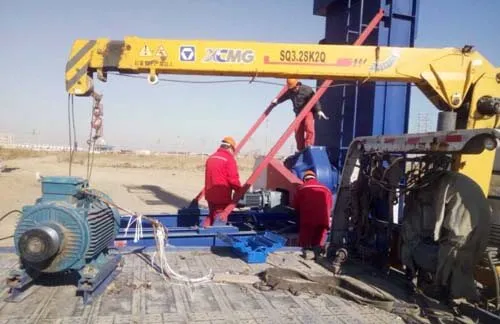

Case Study: Xinjiang Oilfield Conversion

  • Before: 37kW induction motor + gearbox

      ► Energy use: 58 kWh/day

      ► Maintenance: 3-4 times/year

  • After: 30kW PMSM direct drive

      ► Energy use: 32 kWh/day (45% reduction)

      ► Maintenance: Once every 2 years

      ► Production increase: 8% from optimized pumping

Economic Benefits:

  • Payback period: 1.2-1.8 years

  • ROI: >55% over 5 years

  • CO₂ reduction: 12-18 tons per unit annually

5. Future Development Trends

  • Digital oilfield integration: Cloud-based motor performance monitoring

  • AI-powered optimization: Automatic pumping parameter adjustment

  • Hybrid power systems: Solar-PMSM combinations for remote wells

6. Conclusion

PMSM technology delivers transformative benefits for oilfield pumping:
✔ Substantial energy savings (40%+)
✔ Production optimization through precise control
✔ Reduced operating costs (maintenance + power)
✔ Environmental compliance (lower emissions)

Implementation Recommendation:

(1). Start with high-usage wells (>18hr/day operation)

(2). Prioritize units needing gearbox replacement

(3). Implement IoT monitoring for maximum benefit tracking

Would you like a customized feasibility analysis for your oilfield conditions?
