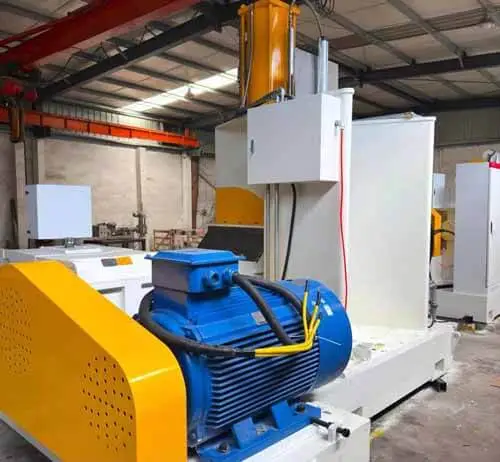

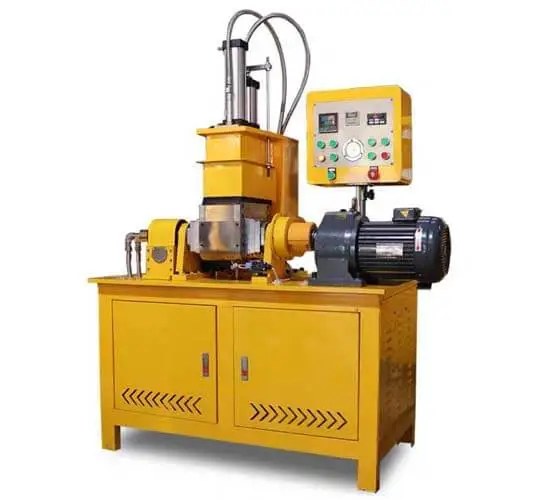

Permanent Magnet Synchronous Motors (PMSMs) are increasingly being adopted in the rubber industry, particularly in mixers (also known as internal mixers or Banbury mixers), due to their high efficiency, superior torque density, and precise control capabilities. Replacing traditional induction motors, PMSMs enhance mixing performance while significantly reducing energy consumption.
• Rubber mixers are critical for blending rubber compounds with fillers, oils, and additives under high temperature and pressure. Key operational demands include:
• High starting torque: Required to overcome initial resistance (typically 2-3 times rated torque).
• Variable speed operation: Different mixing phases (e.g., feeding, dispersion, homogenization) need adjustable speeds.
• Cyclic load fluctuations: Viscosity changes during mixing cause dynamic load variations, demanding fast motor response.
• High energy consumption: Conventional induction motors operate inefficiently under partial loads, leading to excessive power costs.
(1) High Energy Efficiency
• PMSMs achieve efficiencies above 95% (vs. 85–90% for induction motors), especially under variable loads and low speeds.
• Case study: A rubber manufacturer reported 15–25% energy savings after switching to PMSMs, with a payback period of 2–3 years.
(2) High Torque Density for Heavy-Duty Starts
• Permanent magnets eliminate excitation losses, enabling 2× rated torque at low speeds, ideal for mixer startup.
• Reduces inrush current, minimizing grid disturbances.
(3) Precise Speed and Torque Control
• Vector control (FOC) or Direct Torque Control (DTC) ensures ±0.1% speed accuracy and <10ms torque response.
• Enables adaptive speed adjustment (e.g., slow speed for feeding, high speed for dispersion) to optimize mixing quality.
(4) Reliability and Low Maintenance
• Brushless design reduces wear, suitable for harsh environments (high temperature, dust).
• Lower bearing stress compared to induction motors extends service intervals.
• Dual-rotor PMSM mixers: Improve mixing efficiency by 20% while cutting energy use by 30% (dual counter-rotating rotors enhance shear).
• Smart drive systems: Integrated inverters monitor load changes in real time, preventing overloads and unplanned downtime.
→ Demagnetization risk at high temperatures: Use high-grade NdFeB magnets (H-class insulation, withstands >180°C).
→ Higher initial cost: PMSM prices are 30–50% higher than induction motors, but energy savings justify the investment.
→ Harmonic interference: Mitigated via active filters or multi-level inverters.
⇒ IoT integration: Motor data (current, temperature, vibration) enables predictive maintenance and smart manufacturing.
⇒ Higher power density: Advanced designs (e.g., Halbach arrays) reduce motor size for compact mixer layouts.
PMSMs motors offer rubber mixers unmatched efficiency, control, and reliability, driving down operational costs and improving product consistency. As PMSM technology becomes more cost-effective, its adoption in the rubber industry will accelerate, supporting sustainable and intelligent manufacturing.
