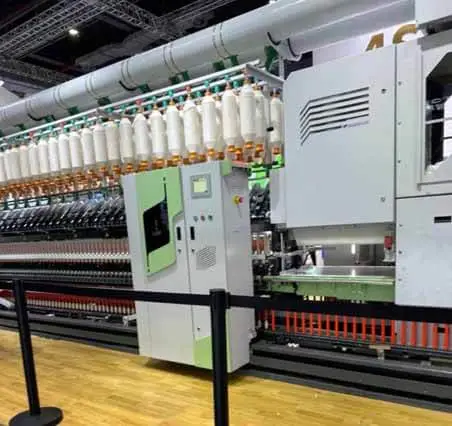

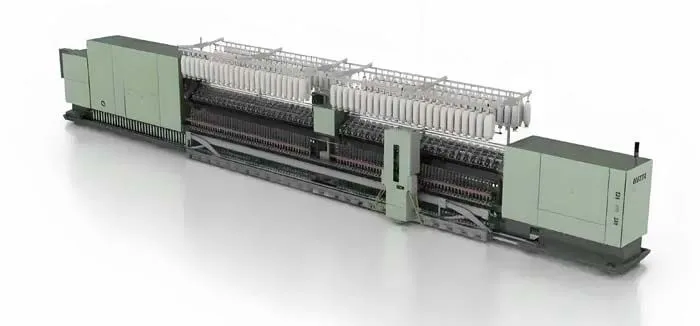

Ring spinning machines are core equipment in the textile industry, used to draft and twist roving into fine yarn. Key process requirements include:
• Constant tension control: Stable yarn tension during winding to prevent breakage or slack.
• High-precision speed synchronization: Precise coordination among spindles, rollers, and ring rails to ensure yarn uniformity.
• Frequent start-stop and speed variation: Speed adjustments for different yarn counts (e.g., low-speed startup, high-speed spinning).
• High energy efficiency demands: Traditional induction motors exhibit low efficiency under partial loads, contributing significantly to production costs.
(1) High Efficiency and Energy Savings
PMSMs achieve >94% efficiency (vs. 80–88% for induction motors), especially under variable speed and partial load conditions.
Case study: A textile mill reported 10–20% energy savings per machine, reducing annual electricity costs by >¥50,000 per unit.
(2) High Dynamic Response and Precision Control
Field-oriented control (FOC) enables ±0.05% speed accuracy and <5ms torque response, meeting rapid acceleration/deceleration needs.
Closed-loop control ensures constant tension winding, reducing yarn breakage rates by >30%.
(3) Low Vibration and Noise
PMSMs eliminate rotor current, minimizing electromagnetic vibration for smoother spindle operation and improved yarn quality (e.g., 15% lower CV value).
Noise levels are 5–10 dB lower than induction motors, enhancing workplace conditions.
(4) Compact Design and Low Maintenance
High power density allows direct spindle drive, eliminating belt transmissions and mechanical losses.
Brushless and lubrication-free design suits humid, lint-heavy textile environments.
(1) Spindle Drive
Traditional machines use group drives (one motor powers multiple spindles). PMSMs enable individual spindle drives, allowing speed customization for diverse yarn production.
Example: A German spinning machine with PMSM-driven spindles reduced energy use by 18% and boosted productivity by 12%.
(2) Synchronized Control of Rollers and Ring Rails
Multi-motor coordination ensures precise synchronization between drafting rollers and winding ring rails, preventing tension fluctuations.
(3) Intelligent Energy-Saving Modes
Automatically reduces speed during idle/low-load periods, saving 15–30% energy.
High-temperature effects: Local temperatures near spindles can exceed 80°C, requiring SmCo magnets or optimized cooling.
Higher upfront cost: PMSMs cost 20–40% more than induction motors, but ROI is achieved in 1.5–3 years via energy savings and reduced maintenance.
EMC issues: Inverter harmonics may interfere with sensors; EMC filters are recommended.
IoT integration: Real-time motor data (current, vibration, temperature) enables predictive maintenance and breakage prevention.
Integrated drive systems: Combining motors, inverters, and controllers into compact units (e.g., "electronic spindles").
Ultra-high-speed spinning: PMSMs support spindles at 15,000–20,000 rpm for premium yarn production.
With superior efficiency, precision, and reliability, PMSMs are replacing conventional drives in ring spinning machines, driving energy savings and smart manufacturing in textiles. As costs decline and technology matures, PMSMs will become the standard for high-performance spinning systems.
