High-torque Brushless DC (BLDC) motors are widely used in industries requiring robust, efficient, and precise motion control. Major applications include:

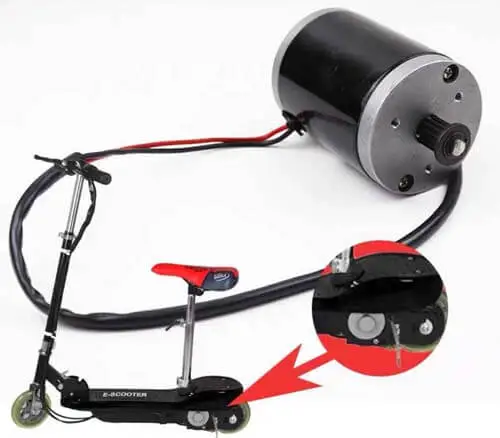

Traction motors in electric cars, bikes, and scooters.
High starting torque for quick acceleration and hill-climbing capability.
Regenerative braking improves energy efficiency.
Robotic arms and CNC machines requiring precise torque control.
Conveyor belts and heavy-duty actuators for material handling.
Packaging machines with high intermittent torque demands.
Drone propulsion systems (high thrust-to-weight ratio).
Actuators in aircraft (e.g., landing gear, flight control surfaces).
Military vehicles for silent and efficient operation.
Exoskeletons and prosthetic limbs needing smooth, high-torque motion.
Surgical robots requiring precision and reliability.
Washing machines (high torque for spin cycles).
Refrigerator compressors (efficient variable-speed operation).
Industrial pumps & fans (energy-saving high-torque drives).
Pole-Slot Combination: Higher pole counts (e.g., 8–16 poles) improve torque density but may reduce max speed.
Winding Configuration: Concentrated windings (shorter end turns) reduce copper losses and enhance torque.
Magnet Type:
• Neodymium (NdFeB): Highest energy density for compact designs.
• Samarium Cobalt (SmCo): Better thermal stability for high-temperature applications.
Liquid cooling (for EVs and industrial motors) or forced air cooling.
Thermal sensors (e.g., PTC/NTC) for real-time temperature monitoring.
Optimized stator lamination to minimize eddy current losses.
Stator Core Material: Silicon steel laminations reduce hysteresis losses.
Rotor Structure:
• Surface-mounted PM (SPM): Simpler but limited by centrifugal forces.
• Interior PM (IPM): Higher mechanical strength for ultra-high speeds.
Shaft & Bearing Selection: High-load bearings (e.g., ceramic hybrid) for long life.
Sensorless vs. Sensored Control:
• Hall-effect sensors provide precise commutation but add cost.
• Sensorless FOC (Field-Oriented Control) reduces components but requires advanced algorithms.
High-Current Inverters: MOSFET/IGBT-based drives with overcurrent protection.
Regenerative Braking: Recovers energy during deceleration (critical for EVs).
Cogging Torque Reduction: Skewed magnets or fractional-slot windings.
Torque Ripple Minimization: Advanced PWM techniques (e.g., sinusoidal commutation).
Lightweight Materials: Aluminum housings or composite rotors for EVs/drones.
Requirement: 50 N·m peak torque, 96V, 3000 RPM.
Design Choices:
• 12-pole IPM rotor for mechanical robustness.
• Liquid-cooled stator to handle continuous high load.
• Sensorless FOC for cost efficiency and reliability.
• Regenerative braking circuitry for extended battery life.

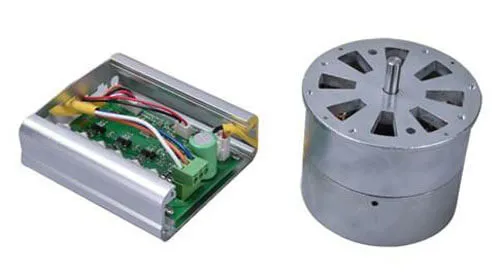

Integrated Motor-Drives: Compact unified designs (e.g., "in-wheel" motors for EVs).
AI-Based Predictive Maintenance: Vibration/thermal analytics to prevent failures.
High-Temperature Superconductors (HTS): Potential for ultra-high torque density.
High-torque BLDC motors are critical for modern high-performance applications, balancing power density, efficiency, and control flexibility. Proper electromagnetic, thermal, and mechanical design ensures reliability in demanding environments. Advances in materials, cooling, and control algorithms will further expand their capabilities.
