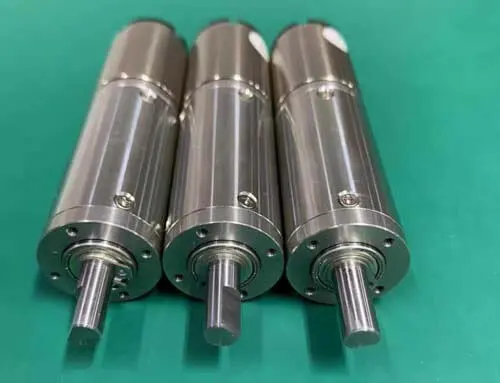

Micro Brushless DC (BLDC) motors are essential in applications requiring compact size, high efficiency, and precise control. Among these, coreless BLDC motors stand out due to their unique rotor design, which eliminates the traditional iron core, reducing inertia and improving responsiveness. This article explores the structure, benefits, and applications of coreless brushless motors, along with key design considerations.

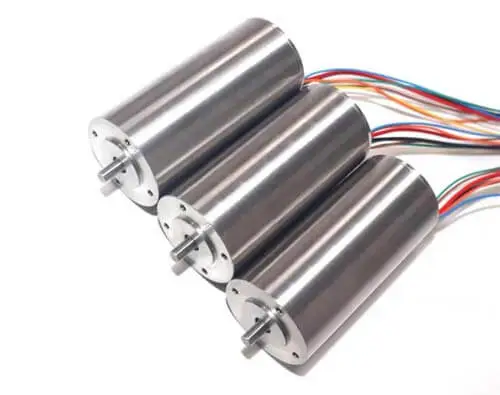

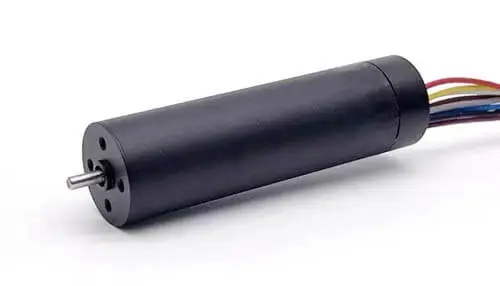

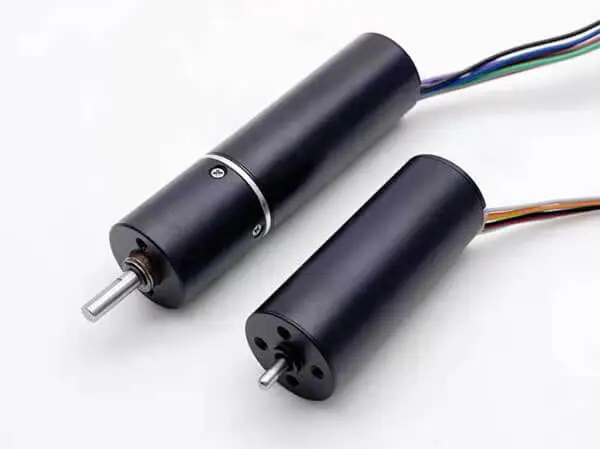

A coreless BLDC motor removes the iron laminations from the rotor, replacing them with a self-supporting copper coil (often in a "bell" or "disc" shape) that interacts directly with permanent magnets. This design eliminates eddy current losses and cogging torque, making these motors ideal for high-precision applications.
Key Features:
• No iron core → Lighter rotor, lower inertia.
• Smooth operation → No cogging torque.
• High efficiency → Reduced electromagnetic losses.
• Fast acceleration/deceleration → Ideal for dynamic motion control.
The absence of an iron core reduces rotor inertia, enabling millisecond-level acceleration, crucial for robotics and medical devices.
No eddy current losses in the rotor → Efficiency up to 90%+.
Lower heat dissipation extends motor life in continuous-duty applications.
Traditional BLDC motors experience cogging torque due to iron-core attraction; coreless designs eliminate this, ensuring vibration-free motion.
Ideal for wearable devices, drones, and micro-pumps where weight and size are critical.
Reduced iron losses result in cleaner electrical noise performance, beneficial for medical and aerospace applications.
Surgical robots (precise tool positioning).
Insulin pumps & ventilators (quiet, efficient operation).
Prosthetics & exoskeletons (lightweight, high torque).
Micro-drones (high thrust-to-weight ratio).
Satellite positioning systems (low power, high reliability).
Camera autofocus mechanisms (fast, silent adjustment).
Smartwatches & haptic feedback devices (compact, efficient).
Nail polisher devices
Miniature robotic arms (high-speed pick-and-place).
Lab automation (precision fluid dispensing).
(1) Rotor Construction
Bell-shaped rotor: Self-supporting copper windings in a lightweight structure.
Disc-type rotor: Used in pancake-style motors for ultra-flat designs.
(2) Magnet Configuration
High-energy rare-earth magnets (NdFeB or SmCo) for maximum torque.
Multi-pole designs for smoother torque delivery.
(3) Bearing Selection
Ball bearings for high-speed applications.
Sleeve bearings for cost-sensitive, low-noise designs.

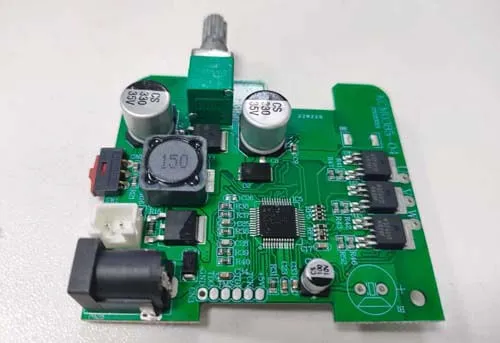

(4) Control & Drive Electronics
Sensorless FOC (Field-Oriented Control) for compact, maintenance-free operation.
Hall-effect sensors (if absolute position feedback is needed).
(5) Thermal Management
Efficient winding design to minimize resistive losses.
Thermal conductive potting for heat dissipation in sealed units.
|
Challenge |
Solution |
|
Lower torque density (vs. iron-core BLDC) |
Optimize magnet strength & coil design |
|
Mechanical fragility (no iron support) |
Reinforced epoxy or composite materials |
|
Higher cost (precision manufacturing) |
Mass production & automated winding |
Coreless BLDC motors offer unmatched speed, efficiency, and precision in micro-motion applications. While they have some limitations in torque density, advancements in materials and manufacturing are expanding their use in medical, aerospace, and consumer electronics. As demand for smaller, smarter, and more efficient motors grows, coreless BLDC technology will play a pivotal role in next-generation motion systems.
