Selecting the right motor for fitness equipment requires balancing power, efficiency, noise levels, and durability. This guide examines key motor technologies for different fitness applications and provides a structured approach to motor selection.
► Key Parameters to Consider
|
Parameter |
Importance |
Ideal Range |
|
Power |
Dictates equipment capability |
0.5-5HP (home), 5-15HP (commercial) |
|
Speed |
Affects workout intensity |
0-20,000 RPM (varies by application) |
|
Torque |
Determines resistance levels |
1-50 Nm (adjustable resistance systems) |
|
Noise Level |
Critical for user experience |
<60 dB (home), <70 dB (commercial) |
|
Duty Cycle |
Impacts longevity |
Continuous (cardio), Intermittent (strength) |
|
Efficiency |
Affects energy costs |
>85% for BLDC motors |
► Environmental Factors
• Temperature resistance (up to 60°C for commercial gyms)
• Dust/moisture protection (IP54 minimum for sweat resistance)
• Vibration tolerance (especially for impact equipment)

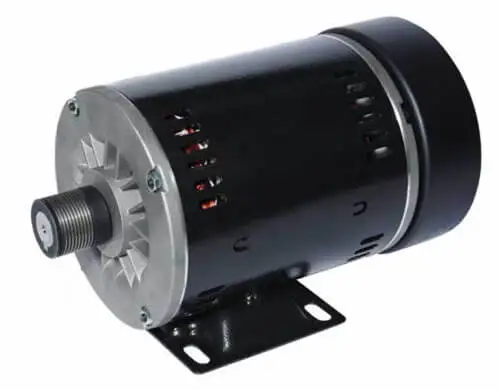

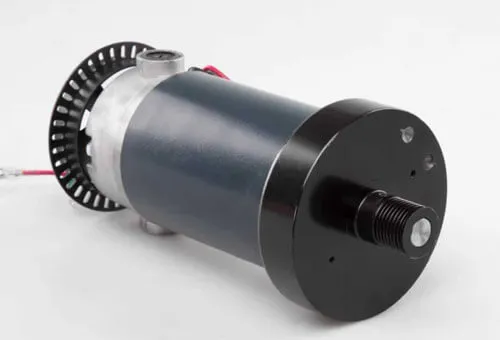

► Treadmill Motors
Type: BLDC or PMDC or Induction Motor
Power: 2.5-4 HP (home), 3-5 HP (commercial)
Key Features:
Continuous duty rating
Speed control (1-12 mph)
Overload protection

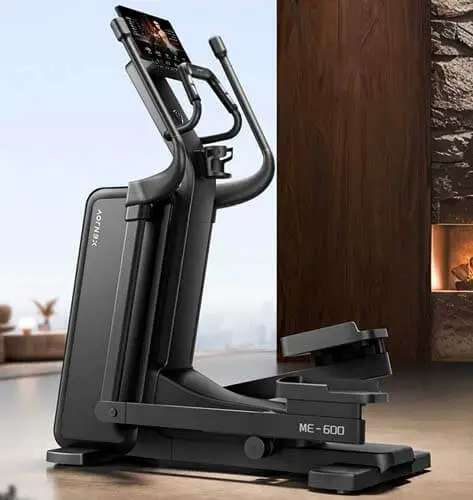

► Elliptical/Stationary Bike Motors
Type: BLDC
Power: 0.5-2 HP
Key Features:
Silent operation (<55 dB)
Regenerative braking capability
Smooth torque delivery
► Cable Machine Motors
Type: Servo or Stepper
Torque: 5-30 Nm
Key Features:
Precise position control
Dynamic load adjustment
Fast response time (<100ms)

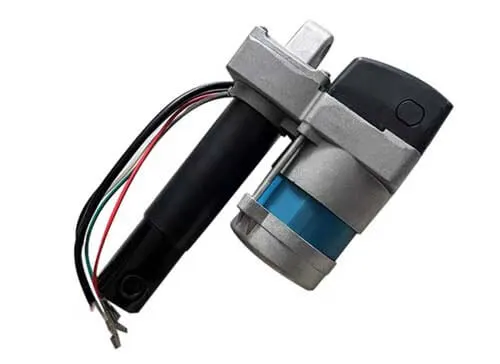

► Adjustable Bench Motors
Type: Linear Actuators
Force: 500-2000N
Key Features:
Self-locking mechanism
IP65 protection
Soft start/stop
► Massage Gun Motors
Type: Coreless DC
Speed: 1500-3200 RPM
Key Features:
High power density
Vibration damping
Brushless design (>500h lifespan)
(1) Step-by-Step Process
Define Application Requirements
Movement type (rotary/linear)
Load characteristics
Control precision needed
(2) Calculate Power Needs
Power (W) = Torque (Nm) × Speed (RPM) / 9.5488
(3) Determine Duty Cycle
Continuous (cardio)
Intermittent (30% strength equipment)
(4) Environmental Considerations
Commercial vs home use
Climate conditions
(5) Control System Integration
PWM for speed control
Encoder feedback requirements
|
Motor Type |
Cost |
Efficiency |
Lifespan |
Best For |
|
PMDC |
$ |
75-82% |
2-3 yrs |
Budget home equipment |
|
BLDC |
$$ |
85-92% |
5-7 yrs |
Premium cardio machines |
|
Servo |
$$$ |
90-95% |
7-10 yrs |
Smart strength systems |
Magnetic Gear Motors: Eliminate mechanical wear in resistance systems
Self-cooling Designs: Integrated thermal management
IoT-enabled Motors: Real-time performance monitoring
Optimal motor selection for fitness equipment requires careful analysis of technical requirements, environmental factors, and cost considerations. BLDC motors dominate premium cardio applications, while servo systems are ideal for smart strength equipment. As the industry moves toward connected fitness solutions, motor selection increasingly focuses on connectivity, data capabilities, and adaptive control features.
Would you like assistance with specific motor calculations for your fitness equipment design? Contact with us now.
