Electric carrier motors are the propulsion heart of material handling equipment, electric vehicles, and automated guided carriers. These motors must deliver reliable torque, precise speed control, and energy efficiency while withstanding demanding operational conditions.
Performance Specifications
|
Parameter |
Typical Range |
Critical Factors |
|
Power |
1-50 kW |
Load capacity, acceleration |
|
Torque |
50-500 Nm |
Gradeability, payload |
|
Speed |
0-3000 RPM |
Operational requirements |
|
Efficiency |
>90% |
Battery life, heat management |
Environmental Considerations
• IP Rating: IP65 minimum for dust/water resistance
• Temperature Range: -20°C to +60°C operation
• Vibration: MIL-STD-810G compliance for industrial use
Comparison of Motor Technologies
|
Type |
Advantages |
Limitations |
Best For |
|
BLDC |
High efficiency, compact |
Cost, control complexity |
AGVs, pallet jacks |
|
PMSM |
Superior control, quiet |
Rare-earth magnets |
Precision carriers |
|

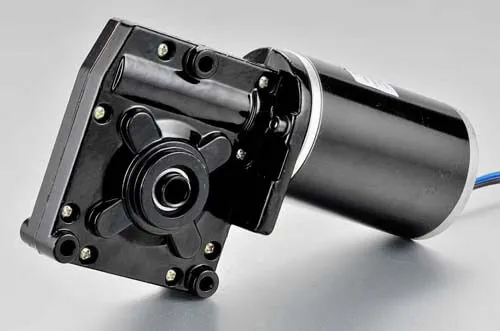

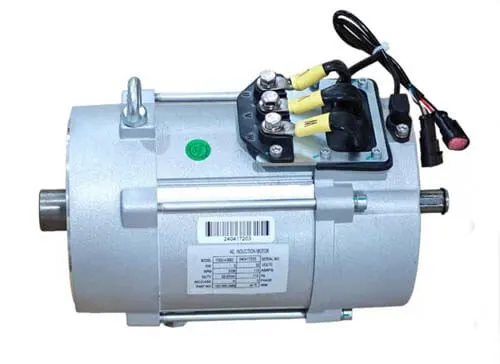

AC Induction |
Robust, low maintenance |
Lower efficiency |
Heavy-duty carriers |
|
SRM |
Fault-tolerant, simple |
Noise, torque ripple |
Harsh environments |

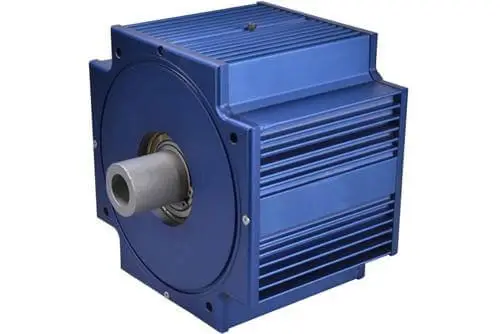

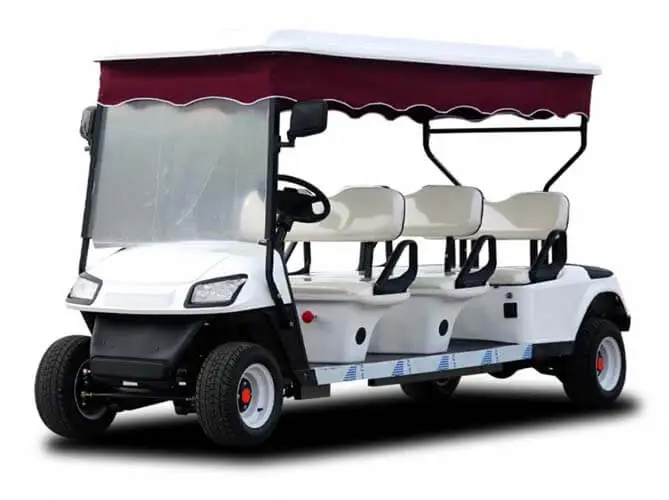

Industry Trend: 85% of new designs use BLDC/PMSM for their superior power density and controllability (like PMS132 pmsm motor for tourism vehicles)
Slot-Pole Combination: 12S10P or 9S8P for reduced cogging
Magnet Arrangement: V-shape or spoke-type for optimal flux
Winding: Concentrated vs distributed (tradeoff between torque density and back-EMF)
Liquid Cooling: For >15kW pmsm motor continuous operation
Heat Path Optimization: Thermal interface materials with >5 W/mK conductivity
Temperature Monitoring: Embedded PT100 sensors in windings
Housing: Aluminum alloy (A356-T6) for weight reduction
Shaft: 4140 steel with nitride hardening
Bearings: Double-shielded (6205-2RS) for 20,000+ hour life
Essential Elements
► Controller: 32-bit ARM Cortex-M7 (300MHz)
► Power Stage: 3-phase IGBT inverter (1200V, 300A)
► Sensors:
♦ Absolute encoder (17-bit resolution)
♦ Current sensors (±0.5% accuracy)
► Protection:
♦ Desaturation detection
♦ Active short-circuit protection
Control Algorithm: Field-oriented control (FOC) with MTPA strategy
Testing Protocol
(1). Dynamometer Testing:
♦ Torque-speed curves up to 150% rated load
♦ Efficiency mapping (ISO 18749-2)
(2). Environmental Testing:
♦ 500-hour salt spray (ASTM B117)
♦ 1000g shock testing
(3). Durability Testing:
♦ 10,000 start-stop cycles
♦ 5,000 hours accelerated life test
Design Tradeoffs:
• Material Selection: Carbon fiber vs aluminum housings
• Manufacturing Process: Die-casting vs CNC machining
• Standardization: Modular design across power ratings
BOM Cost Breakdown:
• Magnets: 25-35%
• Copper Windings: 20-25%
• Electronics: 15-20%
• Mechanicals: 20-30%
Innovations in Development
⇒ Wound Rotor PMSM: Combines PM and reluctance torque
⇒ Additive Manufactured Windings: 15% weight reduction
⇒ Integrated Motor-Drives: Reduced cabling and connectors
⇒ AI-Based Predictive Maintenance: Vibration signature analysis
Requirements:

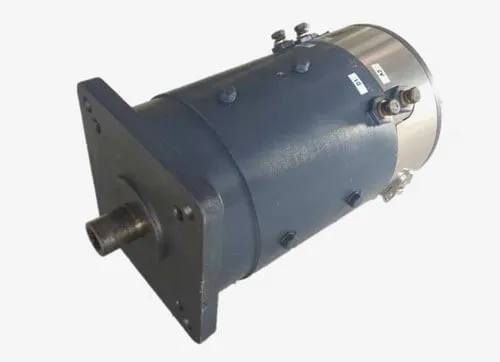

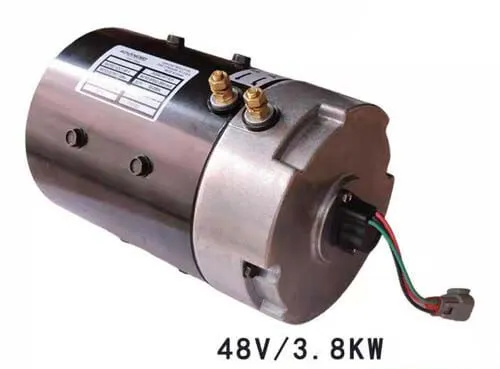

48V system
5kW peak power
120Nm continuous torque
<65dB noise
Solution:
Outer rotor PMSM design
18S16P configuration
Oil-cooled stator
CANopen communication interface
Results:
93% peak efficiency
30% weight reduction vs competitor
MTBF > 50,000 hours
Essential Verification Points
(1). Back-EMF matches battery voltage at max speed
(2). Thermal analysis shows <105°C hotspot at full load
(3). Torque ripple <5% under FOC control
(4). Vibration levels <2.5mm/s RMS
(5). EMI compliance with EN 61000-6-4
Modern electric carrier motor design requires multidisciplinary optimization of electromagnetic, thermal, mechanical, and control systems. The industry is moving toward highly integrated PMSM solutions with advanced cooling and smart control features. Successful designs balance performance requirements with cost targets through careful material selection and manufacturing process optimization.
Would you like detailed calculations for a specific carrier application or assistance with motor sizing? Let us know your request.
