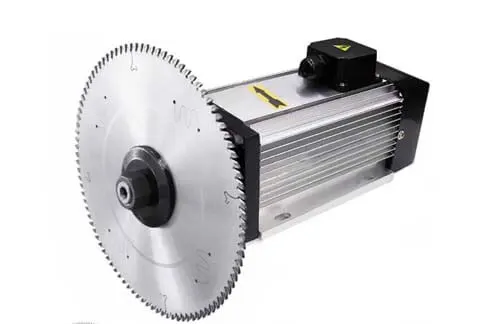

Critical Operational Parameters
|
Parameter |
Industrial Grade |
Workshop Grade |
Precision Cutting |
|
Power |
3-7.5kW |
1.5-3kW |
0.75-2.2kW |
|
Speed |
2,800-4,500 RPM |
1,500-3,000 RPM |
500-1,500 RPM |
|
Torque |
15-40Nm |
8-15Nm |
5-10Nm |
|
Duty Cycle |
S1 (Continuous) |
S3 40% |
S6 60% |
|
Blade Ø |
300-500mm |
200-315mm |
80-200mm |

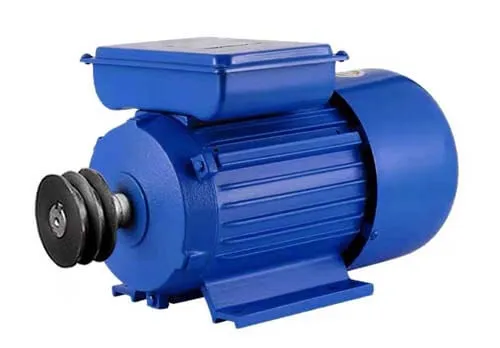

Motor Type Analysis
|
Type |
Starting Torque |
Speed Control |
Maintenance |
Best For |
|
150% rated |
VFD Required |
Low |
Heavy-duty cutting |
|
|
PMSM |
300% rated |
Precision FOC |
None |
CNC applications |
|
Switched Reluctance |
250% rated |
Excellent |
None |
Harsh environments |
Industry Trend: 72% of new industrial saws now use PMSM motors with integrated drives.

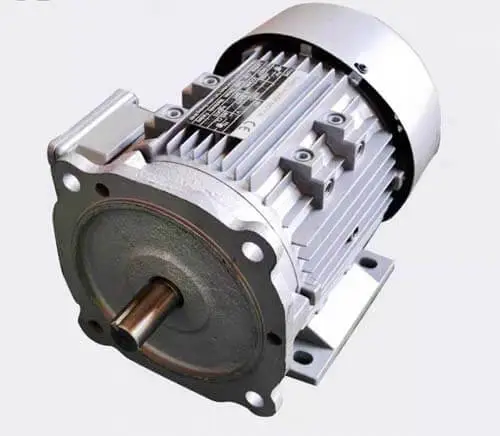

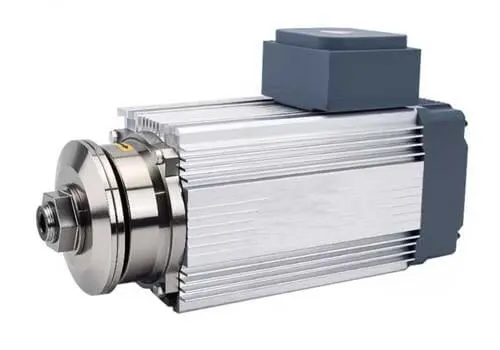

Shaft & Mounting Specifications
• Shaft Diameter: 24-40mm (ISO 286 h6 tolerance)
• Flange Mounting: IEC B14 or B5 standards
• Bearing System:
♦ Double angular contact (7205B/7206B)
♦ Grease-lubricated (NLGI #2)
♦ L10 Life >30,000 hours
Vibration Control
• Dynamic balancing to G2.5 grade (ISO 1940)
• Isolation mounting with 85-90% vibration attenuation
• Critical speed >1.25x max operating speed
Cooling Solutions
|
Cooling Method |
Airflow (CFM) |
Temp Rise (°C) |
Suitable For |
|
TEFC |
120-180 |
65-75 |
Intermittent duty |
|
Air-over |
200-300 |
55-65 |
Continuous operation |
|
Liquid-cooled |
N/A |
40-50 |
High-density CNC |
Thermal Protection:
• Class F insulation (155°C)
• Embedded PT100 sensors (±1°C accuracy)
• Automatic derating at >105°C winding temp
Power Supply Requirements
• Voltage: 380VAC ±10% (industrial), 220VAC (workshop)
• Frequency: 50/60Hz ±5%
• Starting Current: <500% FLC (soft-start equipped)
Control Interface
• Standard: Modbus RTU over RS485
• Advanced: EtherCAT for CNC integration
• I/O:
♦ 2x digital inputs (start/stop)
♦ 1x analog input (0-10V speed ref)
♦ 1x fault output (NO relay)
Mandatory Certifications
• CE (EN 61000-6-2, EN 60204-1)
• UL 1004 (North America)
• GB755 (China)
Protection Features
• Instantaneous overcurrent (200% trip)
• Stator ground fault detection
• Mechanical brake (24VDC fail-safe)
Service Intervals
|
Component |
Inspection |
Replacement |
|
Bearings |
500 hours |
10,000 hours |
|
Cooling Fan |
1,000 hours |
5,000 hours |
|
Encoder |
- |
20,000 hours |
Total Ownership Breakdown
• Initial Cost: 45-55%
• Energy Consumption: 30-40%
• Maintenance: 10-15%
• Disposal: 2-5%
Payback Period: 18-24 months for high-efficiency PMSM vs induction
Innovative Solutions
• Self-sharpening systems: Motor-integrated blade conditioning
• AI load detection: Automatic feed rate adjustment
• Wireless power monitoring: Real-time efficiency tracking
• Composite housings: 30% weight reduction
Decision Flowchart
(1). Determine material hardness (HRC/Brinell)
(2). Calculate required cutting force (F=π×D×t×k)
(3). Select blade diameter → required torque
(4). Choose motor technology based on duty cycle
(5). Verify cooling requirements
(6). Finalize control interface needs

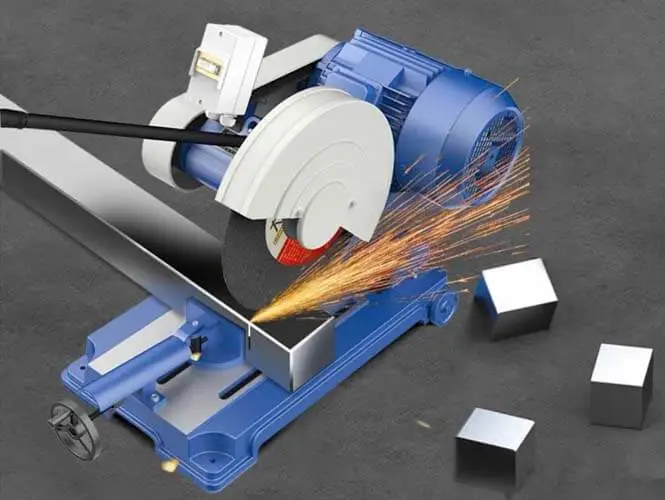

Example Calculation:
For cutting 50mm mild steel (k=500N/mm²):
Cutting Force = π × 300mm × 3mm × 500N/mm² = 1,413N
Required Torque = (1,413N × 0.15m)/2 = 106Nm
→ Select 5.5kW PMSM motor with 120Nm peak capability
Modern metal circular saw motors require careful matching of dynamic performance, thermal capacity, and control precision to application demands. The market is shifting toward permanent magnet solutions with integrated intelligence features that optimize cutting performance while reducing energy consumption. Proper selection requires simultaneous consideration of mechanical, electrical, and control parameters to ensure reliable operation throughout the equipment's service life.
