The type of pumps are varied, such as chemical pump, submerge pump, wastewater pump, SPA pump, long shaft pump, corrosion resistance pump...etc. Most commercial pump use IE3 induction motor type. But more and more IE4 and IE5 PMSM motors are used in those pump.
Industry-Specific Motor Specifications
|
Application |
Power Range |
Speed (RPM) |
Efficiency Class |
Special Requirements |
|

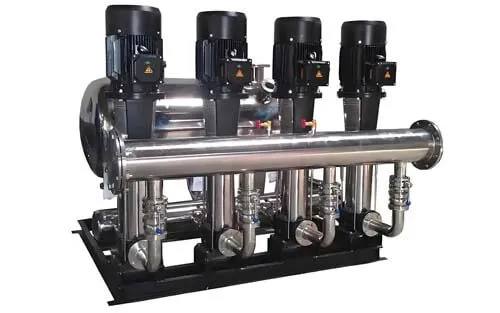

Municipal Water |
15-500kW |
1,200-3,600 |
IE4/IE5 |
Corrosion-resistant |
|

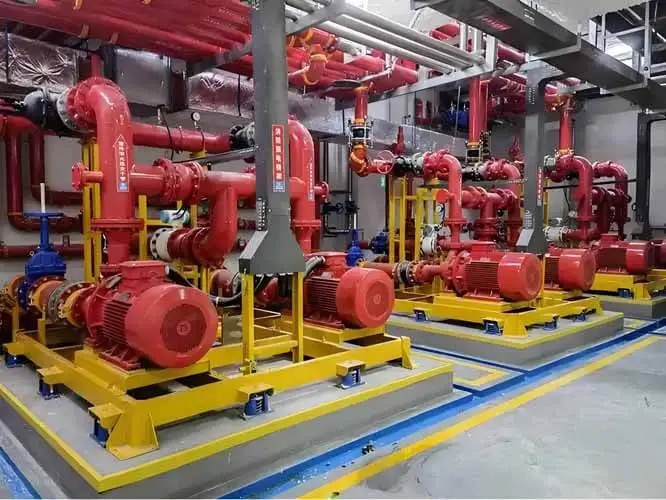

HVAC Circulation |
5-150kW |
1,450-2,900 |
IE3 |
Low-noise (<70dB) |
|

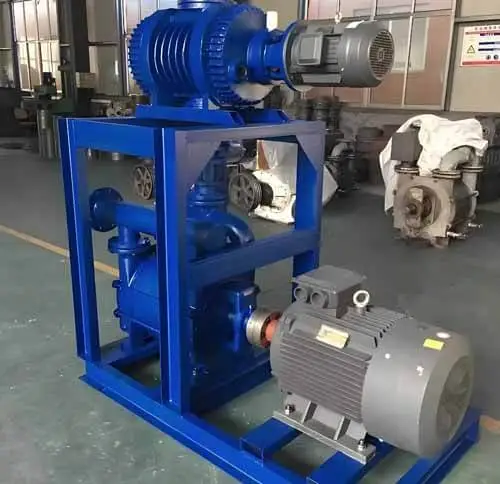

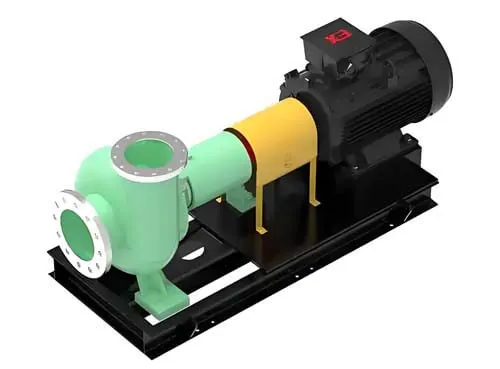

Industrial Process |
30-1,000kW |
900-3,600 |
IE4 |
Explosion-proof |
|

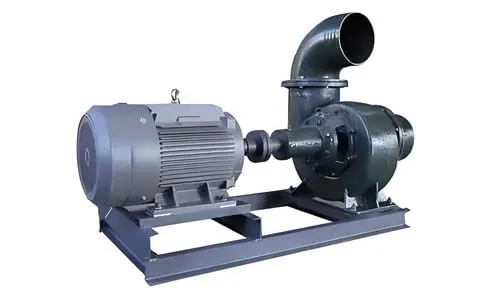

Wastewater |
7.5-300kW |
980-1,750 |
IE3/IE4 |
Clog-resistant design |
|
Oil & Gas |
50-2,500kW |
1,500-3,600 |
API 541 |
Hazardous area certified |

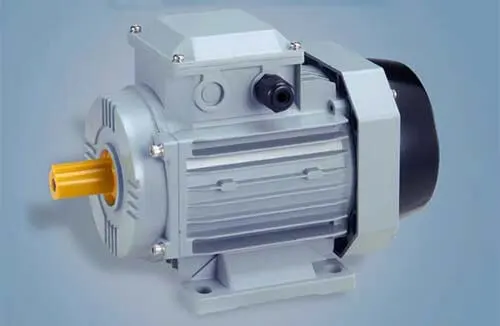

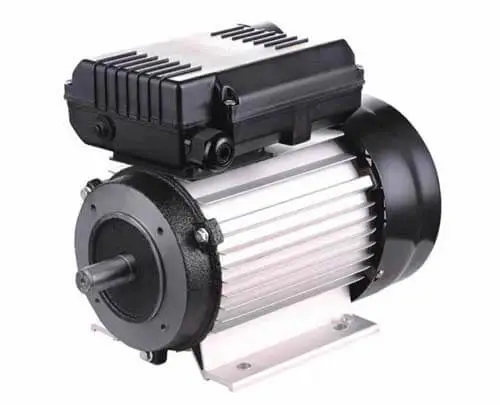

A. Premium Efficiency Induction (IE3)
Best for: Standard centrifugal pumps
Advantages: Lower upfront cost, robust design
Limitations: 3-5% lower efficiency than IE4
B. Synchronous Reluctance (IE4)
Best for: Variable flow systems
Advantages: No permanent magnets, 96%+ efficiency
Limitations: Requires VFD
C. Permanent Magnet (IE5)
Best for: High-efficiency applications
Advantages: 97%+ efficiency, compact size
Limitations: Higher cost, rare-earth materials
D. Submersible Motors
Best for: Deep well applications
Advantages: Water-cooled, space-saving
Limitations: Limited repairability
• Shaft Design: 4140 hardened steel, dynamic balancing
• Bearing Systems:
♦ Oil-lubricated for >200kW
♦ Grease-packed for smaller units
• Vibration Limits: <2.8mm/s (ISO 10816-3)
• Starting Torque: 150-200% FLT
• Locked Rotor Current: <650% FLC
• Insulation Class: F (155°C) with B (130°C) rise
• Cooling Methods:
♦ TEFC (IP55) for most applications
♦ Water-jacket cooling for >150kW
♦ Air-to-air heat exchangers for dirty environments
• Temperature Monitoring: RTDs in windings
• VFD Integration:
♦ Sensorless vector control (0.5% speed regulation)
♦ Pump-specific algorithms (PID, sleep mode)
• Protection Features:
♦ Phase loss detection
♦ Ground fault monitoring
♦ Bearing temperature sensors
• Standard Parameters:
♦ Vibration (velocity & acceleration)
♦ Winding temperature
♦ Current signature analysis
• Communication Protocols:
♦ Modbus RTU (standard)
♦ PROFINET (industrial)
♦ BACnet (building automation)
→ Motor Selection: IE4 saves 1.5-3% over IE3
→ VFD Installation: 20-50% energy savings
→ Power Factor Correction: Maintain >0.95 PF
→ System Matching: Right-size motor to load
Payback Example:
75kW IE4 vs IE3 @ $0.12/kWh, 8,000 hrs/yr:
Annual savings = 75 × (1/0.958 - 1/0.965) × 8,000 × 0.12 = $2,734
|
Component |
Inspection |
Replacement |
|
Bearings |
6 months |
3-5 years |
|
Windings |
Annual |
10-15 years |
|
Cooling Fan |
6 months |
5-7 years |
|
Shaft Seal |
Quarterly |
1-3 years |
• Common Issues:
♦ Bearing failure (51% of failures)
♦ Stator winding issues (22%)
♦ Rotor problems (15%)
• Solutions:
♦ Condition monitoring
♦ Proper lubrication
♦ Voltage imbalance protection
(1). Determine Hydraulic Requirements
Flow rate (m³/h)
Head (m)
Fluid properties
(2). Calculate Pump Power
P(kW) = (Q × H × SG) / (367 × η_pump)
(3). Select Motor Size
Add 10-15% safety margin
Consider starting torque needs
(4). Choose Technology
Base on duty cycle and efficiency needs
(5). Specify Protection
Environmental (IP rating)
Electrical (protection class)
Industry Innovations
⇒ Integrated Motor-Pump Units: No coupling needed
⇒ Additive Manufactured Impellers: Optimized hydraulics
⇒ AI-Powered Predictive Maintenance: Vibration analysis
⇒ High-Temperature Superconductors: 99% efficiency prototypes
Initial Cost: 40-50%
Energy Consumption: 45-55%
Maintenance: 5-10%
Disposal: 1-2%
Lifecycle Cost Comparison (10 years, 100kW motor):
IE3: $220,000 | IE4: $195,000 | IE5: $185,000
Global Certification Requirements
• IEC 60034-30: Efficiency classes
• API 541/547: Oil & gas standards
• IEEE 841: Severe duty
• ATEX/IECEx: Hazardous areas
• NEMA MG-1: North America
Final Recommendation:
For most commercial applications, specify IE4 PMSM motors with integrated VFDs for optimal efficiency and reliability. Implement condition monitoring to maximize uptime and extend motor life.
Need help with specific motor sizing or system design? Provide your pump curve and operating parameters for a customized solution.
