Designing or selecting an electric motor for a golf cart requires balancing power, efficiency, reliability, and cost while considering the unique demands of low-speed, high-torque operation. Below is a detailed breakdown of golf cart motor design and specifications.
• High Starting Torque: Needed for uphill climbs and quick acceleration.
• Efficiency: Optimized for battery life (typically 48V or 72V systems).
• Durability: Must withstand frequent starts/stops, vibrations, and outdoor conditions.
• Compact & Lightweight: Fits within limited space and doesn’t add excessive weight.
• Low Maintenance: Sealed bearings, minimal wear components.

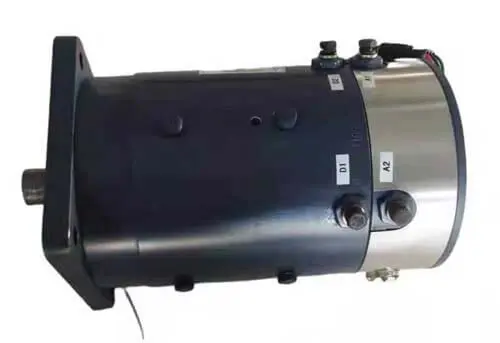

• Common in older carts (e.g., series-wound or shunt-wound DC motors).
• Advantages:
♦ Simple, cost-effective.
♦ High torque at low speeds.
• Disadvantages:
♦ Brushes wear out (~2–5 years).
♦ Less efficient than AC.

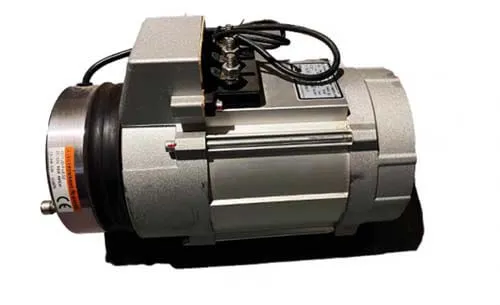

• Modern standard (e.g., 3-phase induction motors with VFD).
• Advantages:
♦ Higher efficiency (~90%+).
♦ Longer lifespan (no brushes).
♦ Regenerative braking possible.
• Disadvantages:
♦ More expensive (requires controller).
• High-performance option (used in premium carts).
• Advantages:
♦ Highest efficiency (~95%).
♦ Compact and lightweight.
• Disadvantages:
♦ Higher cost.
♦ Rare-earth magnets (sensitive to heat).
|

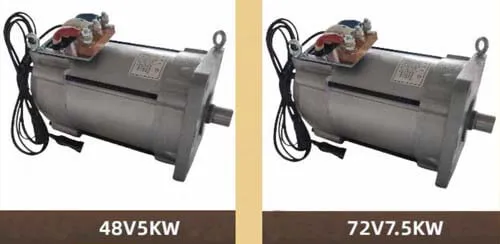

Parameter |
Typical Range |
Example (48V Golf Cart) |
|
Voltage |
36V, 48V, 72V |
48V |
|
Power |
3–15 HP (2.2–11 kW) |
5 HP (3.7 kW) |
|
Speed |
2,500–6,000 RPM (geared down) |
3,600 RPM |
|
Torque |
10–30 Nm (peak) |
18 Nm |
|
Efficiency |
85–95% |
90% (AC motor) |
|
Controller |
PWM (DC) / VFD (AC) |
Curtis 1268 (AC) |
|
Cooling |
Air or liquid-cooled |
Fan-cooled (TEFC) |
Enclosure: TEFC (Totally Enclosed Fan Cooled) for dust/moisture resistance.
Bearings: Sealed, lubricated-for-life ball bearings.
Mounting: Horizontal or vertical (depending on cart design).
Windings: High-grade copper with high-temp insulation (Class H).
Commutator (DC): High-quality carbon brushes (if brushed motor).
Thermal Protection: Built-in temp sensors or thermal cutoffs.
Gear Reduction: Typically 8:1 to 12:1 (for high torque at low wheel RPM).
Regenerative Braking: Recovers energy when slowing down (AC motors).
Speed Control: Electronic speed controller (ESC) for smooth acceleration.
|
Motor Type |
Best For |
Pros & Cons |
|
Brushed DC |
Budget carts, older models |
✅ Cheap, simple ❌ Brushes wear out |
|
AC Induction |
Modern carts, efficiency focus |
✅ Efficient, long life ❌ Needs VFD |
|
PMSM |
High-performance carts |
✅ Best efficiency ❌ Expensive |
Motor Type: 3-phase AC induction.
Power: 5 HP (3.7 kW).
Voltage: 48V.
Controller: VFD
Cooling: Fan-cooled (TEFC).
Efficiency: 90%.
Features: Regenerative braking, thermal protection.
• Brushed Motors: Replace brushes every 2–5 years.
• Brushless Motors: Check bearings (~5–10 years).
• Common Issues:
♦ Overheating → Check cooling, controller settings.
♦ Low power → Test battery voltage, controller.
♦ Noise/vibration → Inspect bearings, alignment.
⇒ Higher Voltage (72V+) → More power, longer range.
⇒ Integrated Motor-Controllers → Compact designs.
⇒ Smart Motors → IoT monitoring for predictive maintenance.
For most modern golf carts, a brushless AC motor with a VFD offers the best balance of efficiency, reliability, and performance. Brushed DC motors remain a budget option but require more maintenance.
