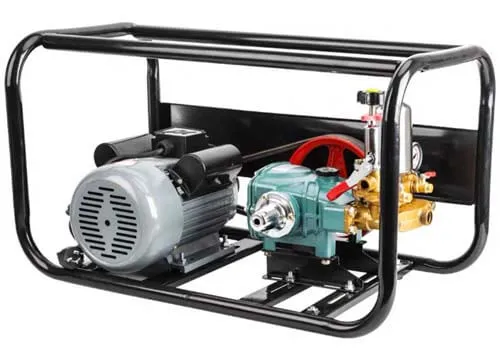

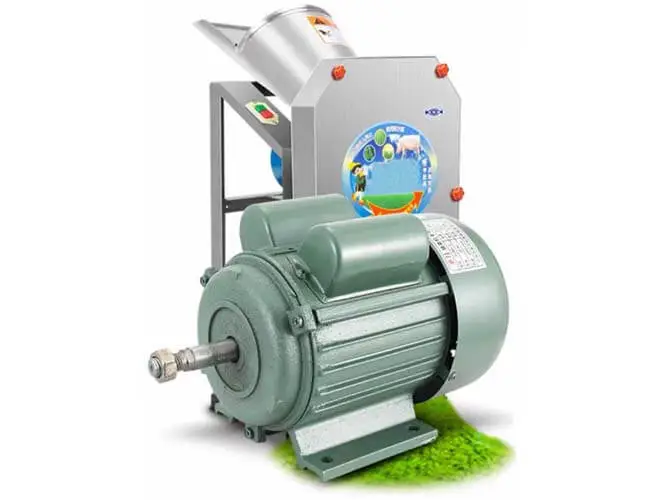

Designing a farm-duty electric motor requires consideration of harsh agricultural environments, including dust, moisture, variable loads, and potential mechanical shocks. Below is a structured approach to designing a robust farm-duty electric motor:
Farm-duty motors must be:
Durable: Resistant to dirt, dust, moisture, and chemicals.
Reliable: Capable of continuous operation under varying loads.
Efficient: Energy-efficient to reduce operational costs.
Easy to Maintain: Accessible components for quick servicing.
Mechanically Robust: Withstand vibrations and mechanical stress.
Power Rating: Typically ranges from 0.5 HP to 50 HP (or higher for large equipment).
Voltage: Common options include 115V, 230V, 460V (single/three-phase).
Enclosure Type: TEFC (Totally Enclosed Fan Cooled) or TENV (Totally Enclosed Non-Ventilated) for dust/moisture resistance.
Frame Size: Standardized (NEMA or IEC) for compatibility with farm equipment.
Duty Cycle: Continuous duty (S1) for prolonged operation.
Efficiency Class: IE3 (Premium Efficiency motors) or higher to save energy.
IP Rating: IP55 or higher (dust-tight and protected against water jets).

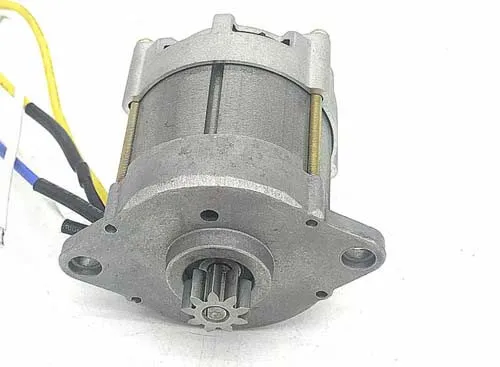

Sealed Bearings: Prevent dirt/moisture ingress.

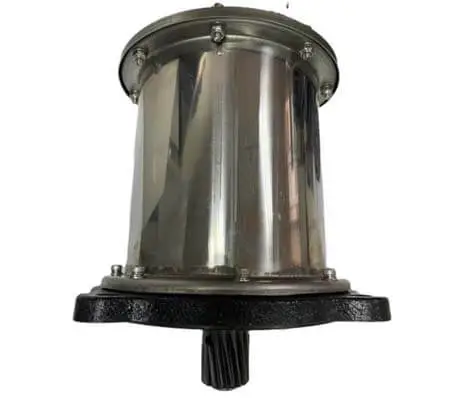

Corrosion-Resistant Materials: Powder-coated or stainless steel parts.
TEFC Design: External fan for cooling without exposing internals to contaminants.
Overheat Protection: Thermal overload sensors for safety.
Heavy-Duty Cast Iron Frame: Absorbs vibrations.
Balanced Rotor: Reduces wear from uneven loads.

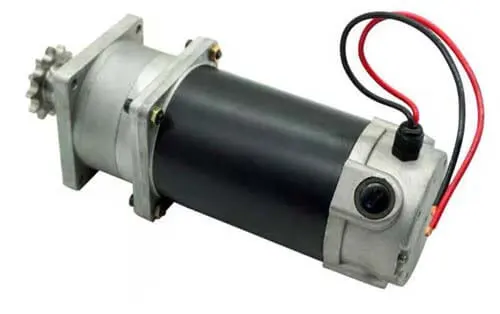

Shaft Design: Hardened steel with keyway for high torque.
Insulation Class: Class F or H (resistant to high temperatures).
Voltage Tolerance: ±10% to handle rural power fluctuations.
Starting Torque: High starting torque (e.g., NEMA Design B or C) for heavy loads.
Lip Seals/Gaskets: Prevent moisture/dust entry at shaft openings.
Conduit Box: Sealed to protect wiring.
|
Component |
Material |
Reason |
|
Frame |
Cast Iron / Aluminum Alloy |
Durability, heat dissipation |
|
Stator/Rotor Core |
Silicon Steel Laminations |
Reduced eddy current losses |
|
Windings |
Copper (Class F/H insulation) |
Efficiency, heat resistance |
|
Shaft |
Hardened Steel (AISI 4140) |
High torsional strength |
|
Bearings |
Sealed Grease-Lubricated |
Long life, low maintenance |
|
Housing Gaskets |
Nitrile Rubber |
Chemical/moisture resistance |
Variable Speed Drives (VSDs): For pumps, conveyors, and automated systems.

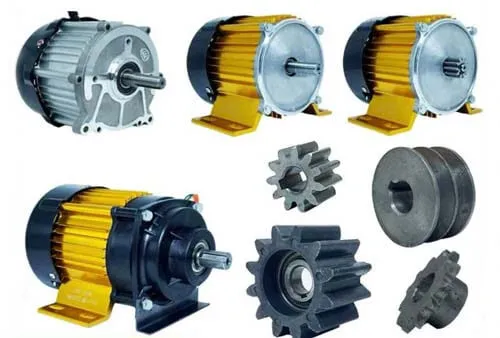

Mounting Options: Rigid base or C-face for different machinery.
PTO Compatibility: Some motors may need to interface with tractor PTO shafts.
Explosion-Proofing: Required for grain handling (hazardous dust areas).
► Environmental Testing: Exposure to dust, water, and temperature cycles.
► Vibration Testing: Simulate field conditions.
► Load Testing: Verify performance under peak torque conditions.
► Efficiency Testing: Ensure compliance with IE3/IE4 standards.
Irrigation pump motor data request:
Power: 10 HP
Voltage: 230V AC, 3-phase
Enclosure: TEFC, IP55
Efficiency: IE3
Features: Thermal protection, sealed bearings, corrosion-resistant paint.
NEMA MG-1 (Motor and Generator Standards)
IEC 60034-30 (Efficiency Classes)
UL 1004 (Safety Certification)
A well-designed farm-duty motor prioritizes durability, efficiency, and ease of maintenance to withstand agricultural demands. Using premium materials, robust sealing, and thermal protection ensures long service life in harsh conditions.
Would you like a detailed analysis for a specific application (e.g., grain auger, manure pump)?
