Custom Electric Motor Design: Comprehensive Engineering Guide



OEMs help us know customer's euqipment to perform. We know how to develop the potimal motor for their actual request. This is a comprehensive guide for custom electric motor made.



1. Core Customization Capabilities for OEMs



Technical Customization Matrix



Parameter	Standard Motor	Customization Options	Industry Impact
Frame Size	IEC/NEMA standard	Compact/flat designs	15-40% space savings
Windings	Generic copper	Litz wire/foil windings	3-8% efficiency gain
Magnets	Ferrite standard	High-grade NdFeB/SmCo	20-30% torque boost
Bearings	Standard deep groove	Ceramic hybrid/lubricated	2-3x lifespan
Encoders	Optional incremental	Absolute/multi-turn	±0.01° positioning
Cooling	TEFC standard	Liquid/hydrogen cooling	50% power density increase

Advanced Options:

  • Integrated motor-drive units

  • Hollow shaft designs

  • Custom flange/bracket geometries

  • Explosion-proof certifications

2. Electromagnetic Design Process



Core Optimization Steps

Magnetic Circuit Design:

  • Pole/slot combination selection (9S6P for low cogging)

  • Air gap optimization (0.5-1.5mm typical)

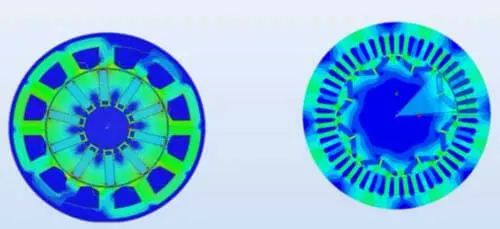

  • Flux density analysis (1.2-1.8 Tesla saturation)



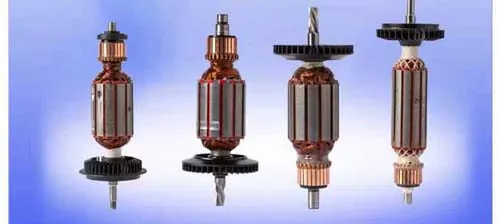

Winding Configuration:

  • Distributed vs. concentrated windings

  • Litz wire for high-frequency applications

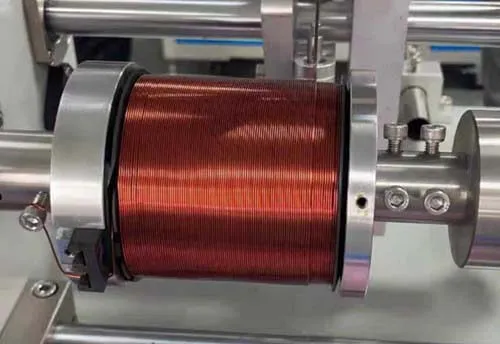

  • Automatic winding machines for precision



Loss Minimization Techniques:

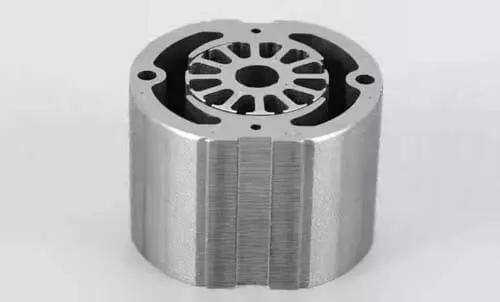

  • Eddy current reduction (0.2mm laminations)

  • AC copper loss mitigation (stranded conductors)

  • Magnet segmentation (4-6 pieces per pole)



3. Mechanical Engineering Considerations





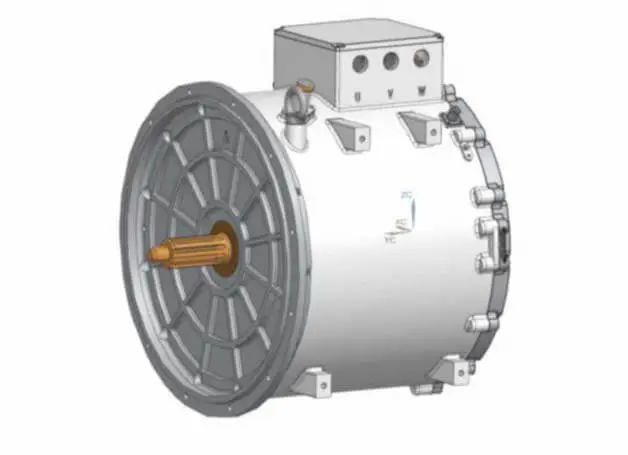

Structural Components

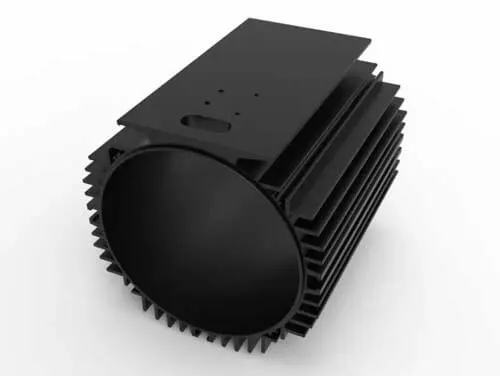

Frame Materials:

  • Aluminum (lightweight applications)

  • Cast iron (high vibration environments)

  • Stainless steel (corrosive environments)



Bearing Systems:

  • Deep groove ball bearings (general purpose)

  • Angular contact (axial load applications)

  • Magnetic bearings (maintenance-free)



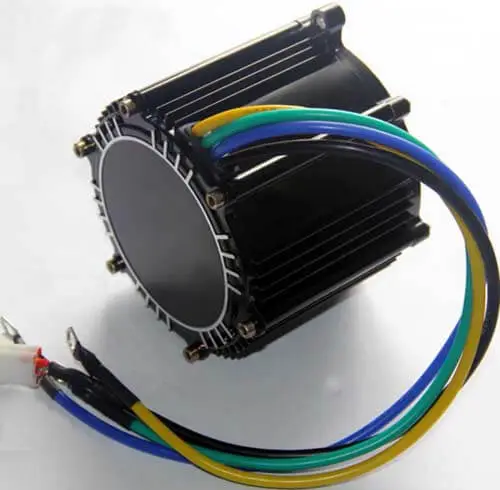

Thermal Management:

  • Cooling fin optimization (CFD verified)

  • Liquid cooling channels (for >50kW)

  • Phase change materials (high-density apps)



4. Advanced Manufacturing Techniques

Cutting-Edge Production Methods





Technology	Advantage	Application
Additive windings	15% higher slot fill	Aerospace motors
Hybrid molding	Integrated cooling	EV traction
Laser ablation	Precision air gaps	Medical devices
Automated VPI	Void-free insulation	High-voltage apps

Tolerance Standards:



  • Rotor concentricity: <0.02mm TIR

  • Shaft runout: <0.01mm

  • Winding tolerance: ±1 turn





5. Control System Integration

Modern Control Architectures

Sensor Options:

Hall effect (low cost)

Encoders (17-bit absolute)

Sensorless algorithms (high-end FOC)



Drive Compatibility:

PWM frequency (8-16kHz typical)

Field-oriented control tuning

CANopen/EtherCAT interfaces



Protection Features:

Desaturation detection

Stator RTD monitoring

Ground fault protection



6. Validation & Testing Protocol

Comprehensive Test Matrix



(1). Performance Testing:

Torque-speed curves (0-200% load)

Efficiency mapping (per IEC 60034-2-1)

Back-EMF waveform analysis



(2). Environmental Testing:

Thermal cycling (5 cycles min)

Vibration (20g peak, 3 axes)

Salt spray (500hrs per ASTM B117)



(3). Life Testing:

Accelerated aging (10,000+ hours)

Start-stop cycling (50,000+ cycles)

Bearing lubrication analysis



7. Cost Optimization Strategies

Design for Manufacturability

Modular construction (shared tooling)

Standardized winding patterns

Multi-material 3D printing

Value engineering analysis



Cost Drivers:



Magnets (25-40% of BOM)

Copper windings (15-25%)

Precision machining (10-20%)

Quality control (5-15%)



8. Certification Roadmap

Global Compliance Requirements

Safety: UL 1004, IEC 60034

Efficiency: IE classes, DOE regulations

EMC: EN 61000-6 series

Hazardous Areas: ATEX, IECEx



Testing Laboratories:



Intertek (ETL)

TÜV SÜD

CSA Group

UL Solutions



9. Industry-Specific Design Rules

Application-Specific Guidelines

A. Electric Vehicles:

800V+ system compatibility

Oil-cooling integration

96%+ system efficiency



B. Industrial Automation:

Overload capability (200% for 1 min)

Brake integration

CIP cleanability



C. Medical Devices:

Gamma radiation resistance

<60dB operation

FDA-approved materials



10. Future Trends in Custom Motors

Emerging Technologies



(1). Additive Manufacturing

3D printed windings (15% higher slot fill)

Gradient material rotors



(2). AI-Optimized Designs

Generative EM topologies

Self-learning thermal models



(3). Integrated Power Electronics

GaN-based commutation

Embedded gate drivers



(4). Sustainable Solutions

Rare-earth-free designs

Circular economy materials



Design Cycle Time:

Modified standard: 8-12 weeks

Clean sheet design: 16-26 weeks

Ultra-precision: 30+ weeks



This comprehensive approach ensures custom motors meet exact application requirements while optimizing performance, cost, and manufacturability. Would you like detailed calculations for a specific motor size or application?
