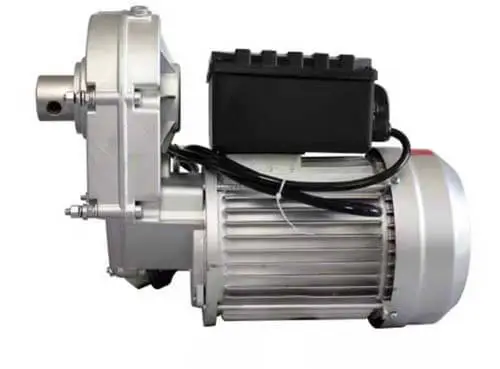

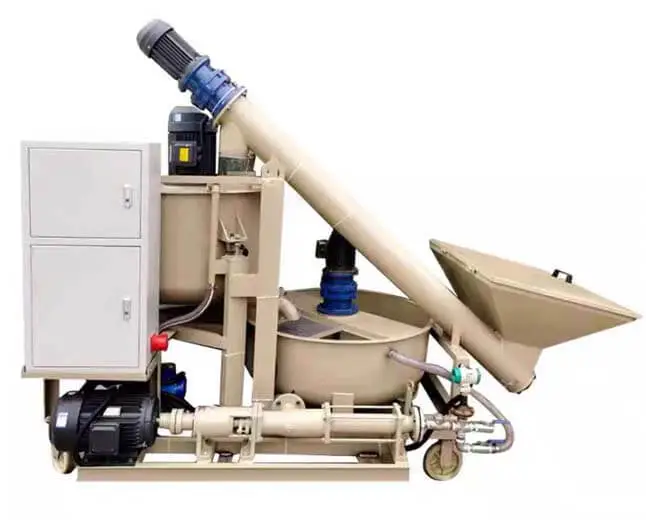

Cement mixer motors are usually used in building and construction machine. Due to the dusty environment, the motor is equipped with a dust cover to upgrade the motor protection function. Different mixer machine need different motor design.
Mixer Classification & Motor Specifications
|
Mixer Type |
Capacity |
Power Range |
Torque Requirement |
Duty Cycle |
Special Features |
|
Portable Drum Mixer |
1-6 cu.ft |
0.5-2 HP |
15-50 Nm |
S3 40% |
Foldable design |
|
Stationary Mixer |
5-20 cu.ft |
7-20 HP |
150-500 Nm |
S1 Continuous |
Heavy-duty gearbox |
|
Industrial Mixer |
20-100 cu.ft |
25-100 HP |
600-3000 Nm |
S1 Continuous |
Hydraulic drive option |
Best for: Standard mixers
Voltage: 110V/220V (portable), 380V/480V (industrial)
Starting Torque: 150-200% rated
Advantages: Low maintenance, cost-effective
B. Hydraulic Drive Systems
Best for: Heavy-duty applications
Pressure: 2000-3000 psi
Flow Rate: 15-50 GPM
Advantages: Infinitely variable speed, high torque

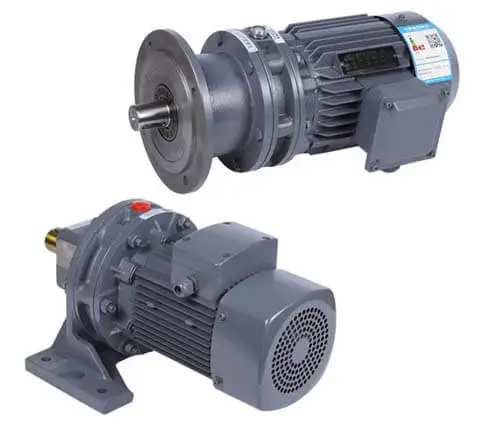

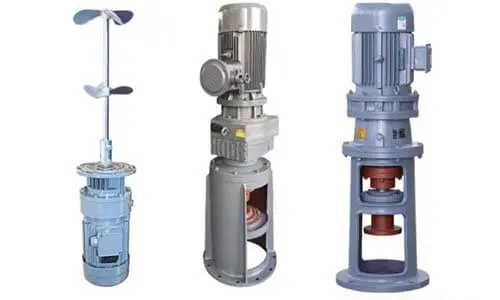

Best for: High-torque needs
Reduction Ratio: 10:1 to 60:1
Efficiency: 85-92%
Advantages: Compact power transmission
Mechanical Requirements
• Starting Torque: Minimum 200% rated torque for loaded start
• Mixer Drum Speed: 25-35 RPM (mixing), 10-15 RPM (discharge)
• Shaft Design:
♦ Hardened 4140 steel
♦ Keyed connection (SAE 6 spline for PTO)
♦ Double bearing support
Electrical Specifications
• Enclosure: TEFC (IP54 minimum)
• Thermal Protection: Automatic reset thermal cutoffs
• Voltage Tolerance: ±10% variation acceptable
• Frequency: 50/60 Hz compatible
Mixing Power Formula
P (HP) = (T × N) / 5252
Where:
T = Torque (lb-ft)
N = Speed (RPM)
Typical Power Requirements:
1 cu.ft mix = 0.1-0.15 HP
5 cu.ft mix = 1.5-2 HP
10 cu.ft mix = 4-6 HP
Material Load Factors
|
Material |
Density (kg/m³) |
Power Multiplier |
|
Standard Concrete |
2400 |
1.0 |
|
Lightweight Concrete |
1800 |
0.8 |
|
Heavy Mortar |
2800 |
1.2 |
|
Fiber-reinforced |
2600 |
1.5 |
Drum Drive Mechanisms
• Chain Drive: 80-85% efficient, needs lubrication
• Gear Drive: 90-95% efficient, sealed units
• Direct Drive: 98% efficient, requires precise alignment
Torque Limiting Devices
• Slip Clutches (adjustable 100-300% rated torque)
• Shear Pins (mechanical overload protection)
• Electronic Torque Control (VFD-equipped systems)
Service Intervals
|
Component |
Inspection |
Lubrication |
Replacement |
|
Bearings |
Every 250 hrs |
Every 500 hrs |
5,000-10,000 hrs |
|
Brushes |
Every 100 hrs |
N/A |
500-1,000 hrs |
|
Drive Belts |
Every 50 hrs |
N/A |
1,000-2,000 hrs |
|
Gear Oil |
Every 6 mo |
Annual change |
5 years |
Troubleshooting Guide
• Motor won't start: Check thermal overload, voltage
• Excessive vibration: Inspect bearings, balance drum
• Overheating: Verify proper loading, cooling fins
• Speed fluctuation: Examine drive components
Compliance Requirements
• UL 1004: Motor safety standards
• NEMA MG-1: Performance specifications
• OSHA 1926.300: Construction equipment safety
• CE Marking: European compliance
Safety Features
• Emergency stop button
• Ground fault protection
• Mechanical brake system
• Rotating guard protection
Ownership Cost Breakdown
|
Cost Factor |
Portable Mixer |
Industrial Mixer |
|
Initial Cost |
$200-800 |
$5,000-50,000 |
|
Energy Cost |
$50-200/yr |
$2,000-10,000/yr |
|
Maintenance |
$50-150/yr |
$1,000-5,000/yr |
|
Lifetime |
3-5 years |
10-15 years |
Innovative Solutions
→ Variable Frequency Drives: Energy savings up to 40%
→ Smart Load Sensors: Automatic torque adjustment
→ Hybrid Power Systems: Electric/diesel combination
→ Self-Cleaning Designs: Reduced maintenance
Future Trends
⇒ IoT-enabled performance monitoring
⇒ Lightweight composite drums
⇒ Regenerative braking systems
⇒ Automated water measurement
Decision Flowchart
(1). Determine required capacity (cu.ft)
(2). Calculate material weight and density
(3). Select appropriate drive type
(4). Choose power source (electric/PTO/hydraulic)
(5). Verify safety and compliance needs
(6). Consider maintenance requirements
Example Selection:
For 8 cu.ft standard concrete mixer:
• Required power: 8 × 0.15 = 4.8 HP → Select 5 HP
• Torque: (5 × 5252)/30 RPM = 875 lb-ft
• Choose: 5 HP gear reduction motor with 20:1 ratio
Final Recommendation:
For most construction applications, select a 5-10% oversized TEFC induction motor with gear reduction for optimal torque delivery. Implement regular lubrication schedules and load monitoring to extend equipment life.
Need a custom solution? Provide:
► Daily usage hours
► Material specifications
► Power source availability
► Mobility requirements
This will ensure proper motor selection for your cement mixing application.
