High-speed motors are widely used in applications requiring ultra-fast rotation (typically above 10,000 RPM), such as CNC spindles, turbochargers, centrifuges, and electric vehicles. Due to their unique operational demands, they must meet stringent requirements in efficiency, heat dissipation, mechanical strength, and control precision. Below are the main types of high-speed motors and their key characteristics.

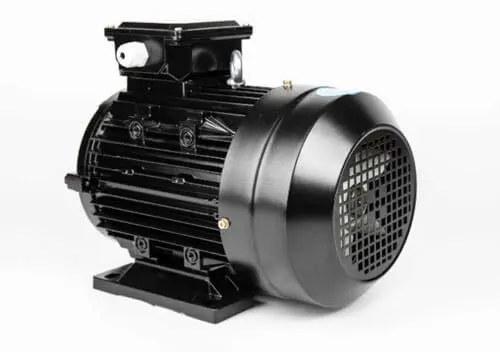

Characteristics:
• Simple & Robust Structure: No permanent magnets or brushes, reducing maintenance needs.
• Cost-Effective: Lower manufacturing cost compared to permanent magnet motors.
• High Reliability: Suitable for harsh environments due to brushless design.
• Speed Limitations: Typically max out at 30,000–50,000 RPM due to slip and rotor heating.
Applications:
• Industrial compressors
• High-speed machining spindles
• Turbo machinery

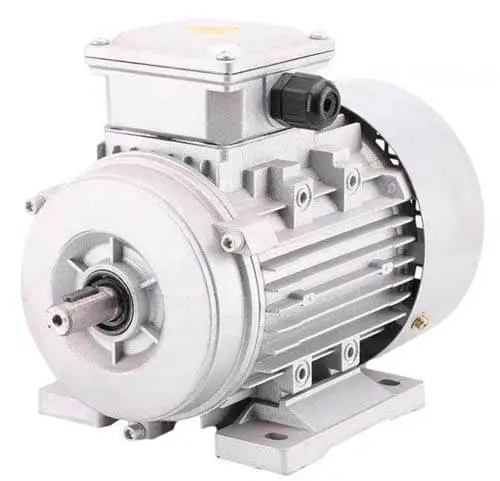

Characteristics:
• High Efficiency (>95%): Due to no rotor losses (unlike induction motors).
• Compact & Lightweight: High power density, ideal for space-constrained applications.
• Precise Speed Control: Excellent dynamic response with vector control.
• High-Speed Capability: Can exceed 100,000 RPM with advanced designs.
• Costly Magnets: Rare-earth magnets (e.g., NdFeB) increase cost.
Applications:
• Electric vehicle drivetrains
• Aerospace actuators
• High-speed CNC spindles

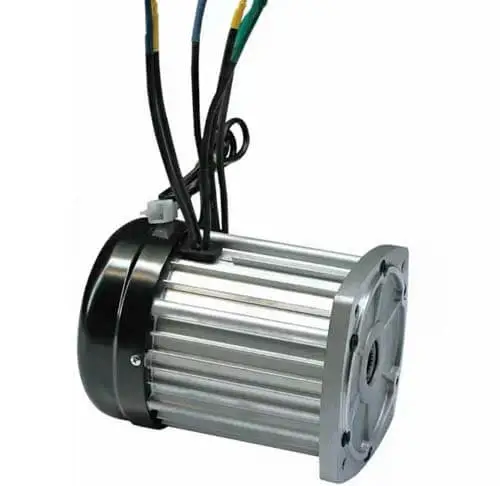

Characteristics:
• No Permanent Magnets: Lower material cost and better high-temperature performance.
• Robust & Fault-Tolerant: Simple rotor structure (no windings/magnets).
• High Torque at Low Speed: Good for acceleration but may have torque ripple.
• Complex Control Required: Needs advanced electronics for smooth operation.
Applications:
• High-speed centrifuges
• Industrial pumps & compressors
• Hybrid/electric vehicles
|
Motor Type |
Max Speed (RPM) |
Efficiency |
Torque Capability |
Cost |
Key Applications |
|
Induction Motor |
30,000–50,000 |
Medium (~90%) |
Medium-High |
Low |
Compressors, Spindles |
|
PMSM |
100,000+ |
High (>95%) |
High |
High |
EVs, Aerospace, CNC |
|
Switched Reluctance |
50,000–80,000 |
Medium (~85%) |
High (with ripple) |
Medium |
Pumps, Centrifuges |
(1). Speed Requirement – Ultra-high speed (>100k RPM) favors air-core or homopolar motors, while PMSM is best for balanced performance.
(2). Torque & Power Density – PMSM & SRM offer better torque, while induction motors are more rugged.
(3). Cost & Maintenance – Induction motors are cheaper, while PMSM motor offers higher efficiency at a premium.
(4). Control Complexity – PMSM & SRM need advanced controllers, whereas induction motors are simpler.
High-speed motor selection depends on speed, load, efficiency, and budget—each type has trade-offs that must be evaluated for the target application.
