Designing or selecting the right motor for a sewing machine depends on factors like power requirements, efficiency, noise levels, and application (household, industrial, or commercial). Below is a detailed breakdown of motor design considerations and selection criteria.
Household Machines: Typically require 50W–150W motors (light to medium fabrics).
Industrial Machines: Need 200W–750W+ motors (heavy fabrics, leather, multiple needles).
Torque: Must be sufficient to prevent stalling when sewing thick materials.
Variable Speed: Essential for precision stitching (servo motors offer better control than clutch motors).
Start/Stop Response:

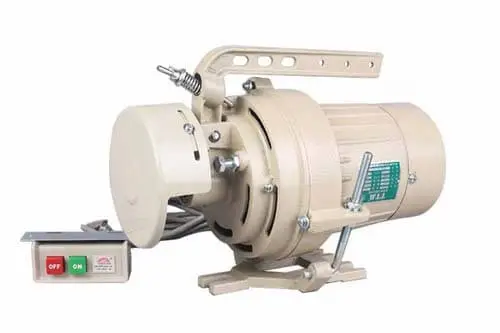

• Clutch Motors: Slight delay due to belt inertia.

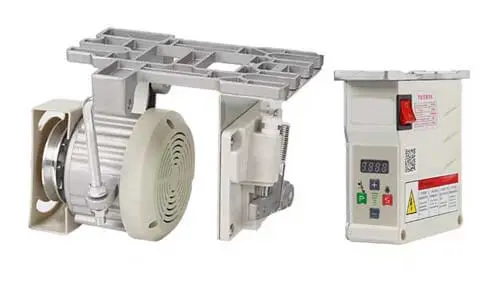

• Servo Motors: Instant start/stop, better for automated sewing.
Clutch Motors: Less efficient (always running at full speed when powered).
Servo Motors: Energy-saving (only consume power when in use).
Brushless DC Motors (BLDC): High efficiency, used in advanced computerized machines.
Clutch Motors: Noisier due to belt and mechanical friction.
Servo & Direct-Drive Motors: Quieter (no belt, electronic control).
Fan Cooling: Common in clutch motors (can accumulate dust).
Enclosed Motors: Better for industrial environments (prevent thread/dust ingress).
Bearing Quality: Industrial motors use sealed bearings for longevity.
|
Machine Type |
Recommended Motor |
Key Features |
|
Household (Manual) |
Servo Motor (90W–150W) |
Quiet, energy-efficient, smooth speed control |
|
Household (Computerized) |
BLDC Motor (50W–100W) |
Precise, lightweight, low heat |
|
Industrial (Single-Needle) |
Clutch Motor (400W–550W) |
High torque, durable |
|
Industrial (Heavy-Duty) |
Servo Motor (550W–750W) |
Fast response, energy-saving |
|
Embroidery Machines |
Direct-Drive Servo Motor |
High precision, low vibration |
Light Fabrics (Silk, Cotton): Low-power servo or BLDC motor (50W–150W).
Medium Fabrics (Denim, Canvas): Servo motor (200W–400W).
Heavy Fabrics (Leather, Upholstery): High-torque clutch or High-torque servo motor (500W+).
(1). Speed Range (RPM):
Household: 500–1,200 RPM
Industrial: 1,500–5,500 RPM
(2). Control Method:
Foot pedal (analog/digital)
Automated (via sewing machine controller)
(3). Mounting Type:
Standard flange mount (common for industrial machines)
Built-in (for computerized machines)
(4). Maintenance Needs:
Clutch motors: Require periodic carbon brush replacement.
Servo motors: Minimal maintenance (no brushes).
|
Brand |
Motor Type |
Best For |
|
JACK (China) |
Servo & Clutch |
Industrial machines |
|
SunStar (Taiwan) |
High-speed Servo |
Heavy-duty stitching |
|
Mitsubishi (Japan) |
Precision Servo |
Automated sewing |
|
PJM |
BLDC Motor |
Computerized home machines |
|
Singer |
Universal Motor |
Basic household machines |
Common Issues
Motor Overheating → Check for dust blockage, ensure proper ventilation.
Inconsistent Speed → Faulty foot pedal or damaged speed controller.
Burning Smell → Worn-out carbon brushes (in clutch motors).
Upgrade Recommendations
From Clutch to Servo: Reduces noise and energy consumption.
Adding a Speed Reducer: Improves torque for thick fabrics.
• For Home Use: A 90W–150W servo motor is ideal.
• For Industrial Use: A 750W servo motor provides power and efficiency.
