High-voltage Switchgear Drive Solution

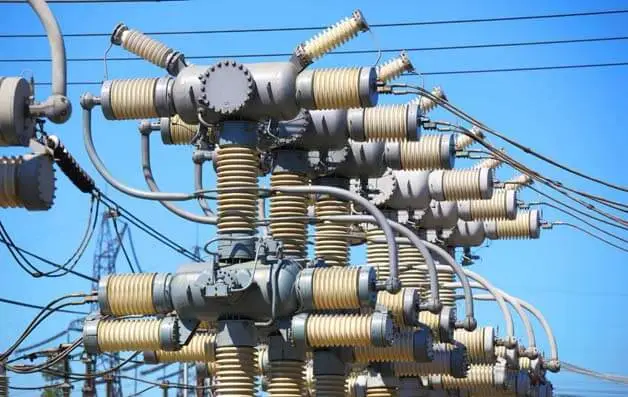

High-voltage switchgear, as critical protection and control equipment in power systems, relies on drive mechanism performance to directly impact breaking/making speed, reliability, service life, and system safety. Traditional solutions (electromagnetic solenoids, spring-energy storage, or hydraulic drives) struggle to meet modern smart grid demands for speed, precision, and maintenance-free operation. Permanent Magnet Synchronous Motors (PMSM) combined with intelligent control technology are revolutionizing drive solutions for this industry.

I. Core Requirements for HV Switchgear Drives

1. Ultra-High Reliability

Maintenance-free operation for decades in extreme environments (-40°C to 70°C).

Failure rate < 0.1 incidents/1,000 units·year.

2. Precise Position Control

Breaking/making endpoint position error ≤ ±0.5mm.

Prevention of contact bounce-induced arc re-ignition.

3. Millisecond Dynamic Response

Breaking time typically ≤ 30ms (e.g., for ≥72.5kV circuit breakers).

4. Short-Circuit Withstand Capability

Resistance to massive electrodynamic forces from >50kA short-circuit currents.

5. Low Energy Consumption & Maintenance-Free

Elimination of lubrication components; no hydraulic fluid leakage risks.

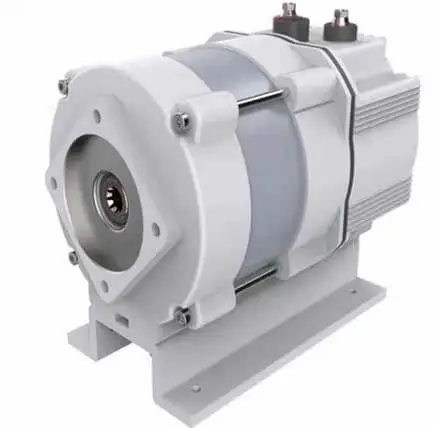

II. Advantages of IE5 PMSM Drive Solutions

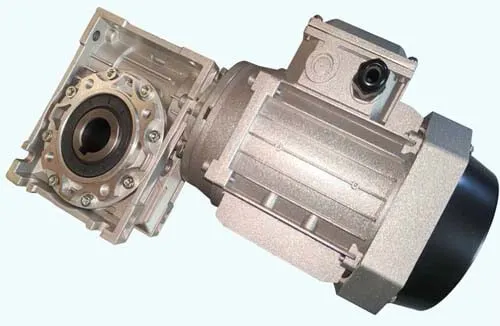

1. Topology Innovation

graph LR
A[Intelligent Controller] --> B[IE5 PMSM]
B --> C[High-Precision Gearbox]
C --> D[Linear Output Shaft]
D --> E[Switch Contacts]

  • Direct/Quasi-Direct Drive: Reduces gear stages, boosts efficiency >95%, and minimizes mechanical failure points.

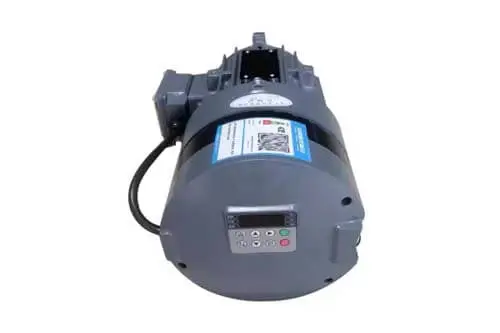

  • Modular Encapsulation: Motor and controller integrated in sealed housing with IP67 protection.

2. Key Technological Breakthroughs

  • Ultra-Low Inertia Rotor
      ♦ Surface-mounted PM rotor with carbon fiber binding reduces inertia by 60% vs. conventional motors, enabling acceleration to rated torque in <10ms.

  • Anti-Demagnetization Design

      ♦ NdFeB magnets + titanium alloy canning withstand 150°C and 200kA/m reverse magnetic fields.

      ♦ Dual-redundancy temperature sensors monitor magnet temperature in real-time.

  • High-Precision Position Control

      ♦ 17-bit absolute encoder + closed-loop FOC (Field-Oriented Control) achieves 0.001° resolution.

      ♦ Adaptive backstepping control suppresses load disturbance.

3. Intelligent Drive Algorithms

def breaking_control():
    detect_voltage_sag()  # Detect grid voltage dip
    if emergency_mode:
        apply_S_curve_trajectory(accel=5000rad/s²)  # Emergency breaking acceleration
    else:
        apply_minimum_arcing_time_profile()  # Minimum arcing time trajectory
    monitor_contact_position()  # Real-time position feedback
    activate_active_damping()   # Active bounce suppression

III. Application Scenarios & Performance Comparison

IV. Case Study: Solving Industry Pain Points

Problem: 550kV GIS breaker with >3ms contact bounce causing multiple re-ignitions (conventional spring mechanism).

PMSM Solution:

  ► Feedforward compensation based on current loop to predict load torque fluctuation.

  ► Active braking algorithm activated 5ms before contact closure.

Result: Bounce time reduced to 0.8ms; arcing energy decreased by 72%.

V. Development Trends

  • Deep Integration

      ♦ Drive-control-monitoring SoC (e.g., TI C2000 + IGBT module).

  • Advanced Materials

      ♦ Rare-earth-free magnets (e.g., ferrite composite) reducing cost by 30%.

  • Digital Twin Maintenance

      ♦ Contact wear diagnosis via motor current harmonic analysis (SVM-based feature recognition).

  • Standard Compliance

      ♦ Meeting IEC 62271-100:2021 "Controlled Switching" requirements.

VI. Selection Criteria

Verify:

1. EMC Compliance: IEC 61000-4-5 (±4kV surge test)
2. Mechanical Endurance: ≥10,000 full-capacity operations (per IEC 62271-301)
3. Fault Recording: Breaking/making coil current-displacement waveform capture
4. Seismic Performance: IEEE 693-2018 (0.5g acceleration)

Conclusion: IE5 PMSM drive solutions address the extreme demands for speed, precision, and reliability in HV switchgear through electromagnetic-mechanical-control tri-optimization. As power systems evolve toward intelligence, this technology will become standard for 765kV UHV breakers and flexible DC converter valves, ushering in a "zero-maintenance" era for switchgear.
