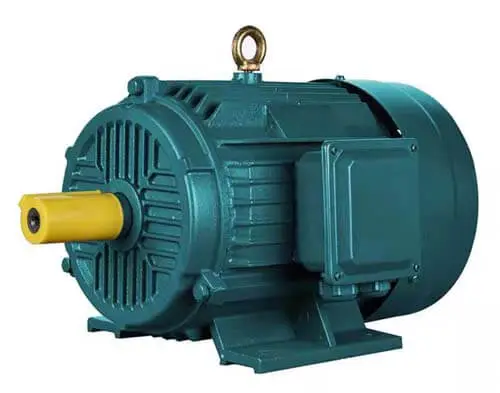

In an era increasingly defined by energy consciousness and sustainability mandates, the quest for ultra-efficient electric motors has reached new heights. The International Electrotechnical Commission's (IEC) IE5 efficiency class represents the pinnacle of commercially available motor efficiency today. Among the technologies capable of consistently achieving and surpassing this demanding standard, Permanent Magnet Synchronous Motors (PMSMs) stand out. Their unique design principles unlock significant energy savings and operational advantages, making them the technology of choice for the most demanding applications.
The IEC 60034-30-1 standard defines motor efficiency classes (IE1 to IE5), with IE5 representing the "Ultra-Premium Efficiency" tier. IE5 motors are required to be 20% more efficient than the average IE3 (Premium Efficiency) motor and approximately 15% more efficient than IE4 (Super-Premium Efficiency) motors. Achieving IE5 necessitates minimizing all inherent losses within the motor:
1. Copper Losses (I²R): Resistive losses in the stator and rotor windings.
2. Iron Losses (Core Losses): Hysteresis and eddy current losses in the magnetic steel laminations.
3. Stray Load Losses: Additional losses due to harmonics, imperfections, and leakage fluxes.
4. Friction & Windage Losses: Mechanical losses from bearings and air resistance.
5. Rotor Losses: Critical in induction motors, but minimized in PMSMs.
PMSMs inherently possess characteristics that align perfectly with the IE5 goal, but achieving it consistently requires sophisticated design optimization:
1. The Permanent Magnet Advantage:
• Elimination of Rotor Losses: The fundamental reason PMSMs excel. Unlike induction motors (IM) that require magnetizing current (creating significant I²R losses in the rotor), PMSMs use high-energy permanent magnets embedded in or mounted on the rotor to create the magnetic field. This eliminates virtually all rotor electrical losses – a major contributor to inefficiency in IMs, especially at partial loads.
• High Power Density & Torque: Powerful rare-earth magnets (like Neodymium Iron Boron - NdFeB) enable high magnetic flux density in a compact rotor, leading to higher torque output for a given frame size.
2. Advanced Stator Design:
• High-Quality Laminations: Ultra-thin, high-grade electrical steel laminations (often with specialized coatings) are used to drastically reduce core (iron) losses. Optimized slot designs minimize flux density variations.
• Precision Winding: Concentrated or distributed windings are optimized for low resistance (using larger copper cross-sections where possible) and minimal harmonic content. Automatic winding machines ensure consistency and tight packing. Low-loss insulation systems are employed.
• Optimized Electromagnetic Design: Sophisticated Finite Element Analysis (FEA) software is used to meticulously model and optimize the magnetic circuit, minimizing stray losses and maximizing flux linkage with the rotor magnets. Air gap dimensions are tightly controlled.
3. Thermal Management:
• Low Losses = Less Heat: The inherently lower losses of the PMSM design reduce heat generation significantly.

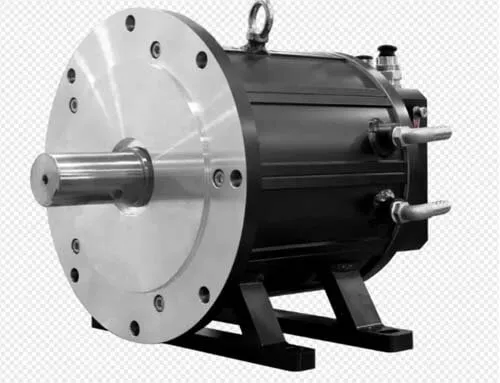

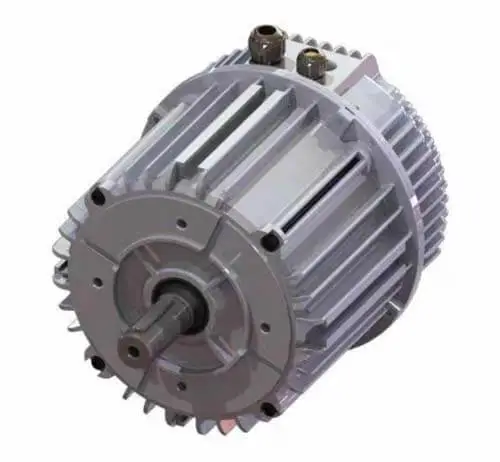

• Enhanced Cooling: Despite lower losses, efficient heat dissipation remains crucial for reliability and maintaining performance. Designs often feature optimized cooling fins, integrated cooling fans (often separately driven for minimal energy use), and increasingly, liquid cooling jackets for high-power applications.
4. Material Science:
• High-Energy Magnets: NdFeB magnets offer the highest energy density, crucial for compact, high-torque IE5 designs. Research into lower-cost or less rare-earth-dependent magnets (e.g., Ferrite hybrids, Samarium Cobalt alternatives) is ongoing but currently, NdFeB dominates the IE5 PMSM landscape.
• Low-Loss Steel: Continual development of electrical steel with lower hysteresis and eddy current losses is vital.

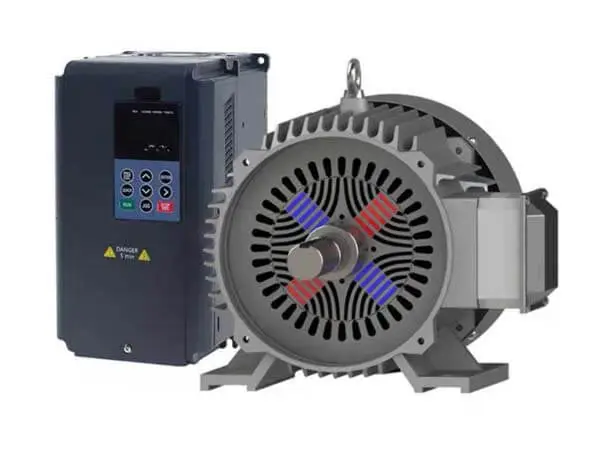

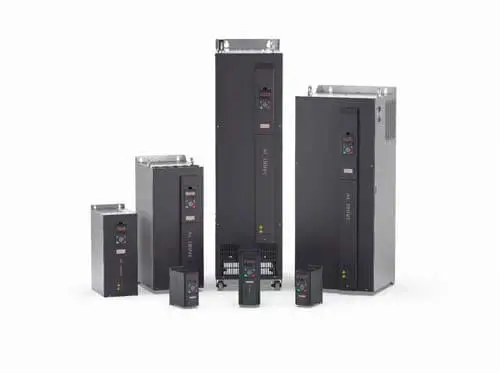

Achieving the full potential and efficiency benefits of an IE5 PMSM requires precise control, which is exclusively provided by a matched Variable Frequency Drive (VFD):
1. Synchronous Operation: The VFD generates a rotating magnetic field in the stator precisely synchronized with the rotor's permanent magnet position (detected by sensors or estimated sensorlessly). This synchronization is key to the motor's high efficiency and dynamic performance.
2. Optimal Flux Control: Advanced VFD control algorithms (like Field-Oriented Control - FOC or Direct Torque Control - DTC) optimize the stator current vector relative to the rotor flux. This minimizes current for a given torque output, significantly reducing copper losses, especially at partial loads – where IMs are notoriously inefficient.
3. Wide Speed Range Operation: Enables soft starting (eliminating inrush current) and precise speed/torque control across the entire operating range.
4. Regenerative Capability (Optional): Some VFDs allow feeding braking energy back to the grid, further improving system efficiency in applications with frequent deceleration.
The combination of ultra-high efficiency, compact size, high power density, excellent dynamic response, and superior partial-load efficiency makes IE5 PMSMs ideal for:
1. Pumps & Fans: Dominating HVAC systems, water treatment, and industrial processes. Their superior partial-load efficiency is a massive advantage as these loads often operate below full capacity. Energy savings of 5-15% compared to IE4 systems are common, with payback often within 1-3 years.
2. Compressors: Air compressors in manufacturing and refrigeration systems. High efficiency directly translates to lower compressed air costs, a major industrial energy consumer.
3. Conveyors & Material Handling: Especially in systems requiring variable speed, precise control, and high starting torque. Regenerative drives can capture braking energy on declining conveyors.
4. Machine Tools: High dynamic response, precise speed control, and compact size are crucial for CNC machining centers, lathes, and robotics.
5. Electric Vehicles (Traction): While automotive designs are highly specialized, the core principles of high efficiency and power density in PMSMs are fundamental to EV drivetrains.
6. Renewable Energy Systems: Generators in wind turbines and ancillary drives within solar plants benefit from high efficiency.
• Initial Cost: IE5 PMSMs and their required VFDs represent a higher upfront investment compared to IE3 or even IE4 induction motors. However, the significantly lower operating costs (energy savings) usually result in a compelling Total Cost of Ownership (TCO) and rapid payback, particularly in continuously operating applications.
• Rare-Earth Magnet Dependency & Cost Volatility: Reliance on NdFeB magnets ties the motor cost to the volatile rare-earth market and raises supply chain concerns. Mitigation strategies include design optimization for lower magnet mass and research into alternative magnet technologies.
• Demagnetization Risk: Extremely high temperatures or fault currents can potentially demagnetize the rotor magnets. Careful thermal design and drive protection are essential.
• VFD Requirement & Harmonic Distortion: The mandatory VFD adds cost and complexity. VFDs can also introduce harmonic distortion into the power supply, requiring mitigation (filters) in sensitive environments.
• System Integration: Optimal performance requires careful matching of the motor, drive, and control system.
IE5 PMSM technology is not the end point. Trends include:
► Further Efficiency Gains: Ongoing material science (steel, magnets, insulation), electromagnetic optimization, and reduced friction/windage losses.
► Integrated Motor Drives (IMD): Combining the motor and VFD into a single unit reduces cabling, losses, footprint, and installation complexity.
► Advanced Cooling: Wider adoption of liquid cooling for higher power densities and better thermal management.
► Digitalization & Smart Motors: Embedded sensors for temperature, vibration, and performance monitoring, enabling predictive maintenance and optimized energy management.
► Sustainable Magnet Solutions: Accelerated development of magnets with reduced rare-earth content or using more abundant materials.
IE5 PMSM motors represent a transformative leap in electric motor technology. By leveraging the inherent efficiency advantages of permanent magnets combined with sophisticated electromagnetic design, advanced materials, and precise VFD control, they deliver unprecedented energy savings. While the initial cost is higher, the dramatic reduction in operating expenses, particularly in variable torque and continuous operation applications like pumps, fans, and compressors, ensures a compelling return on investment and a significant contribution to global energy efficiency and carbon reduction goals. As technology advances and costs moderate, IE5 PMSMs are poised to become the new standard for high-performance, sustainable industrial motion.
